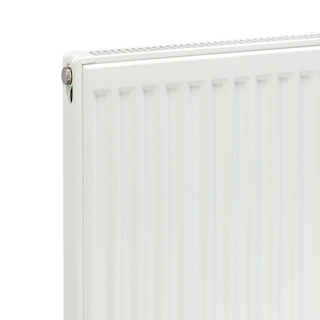

Compact 4 SF

Single Panel, Single Convector radiator

Durable and versatile, the Compact 4 radiators offer a range of cost-effective, rapid heating solutions for both the home and working environments.

The details:
• 10-Year Warranty
• Available in 116 size options
• High-quality white powder coat finish (White RAL 9016)
• We recommend pipework is not installed until receipt of radiator
• Please allow up to 10 weeks for delivery for made to order models
• All prices are exclusive of VAT and delivery

SKU: Compact 4 SF Categories: Compact 4 SF, Panel, Premier Range Where to buy

Description

Description

Single Panel, Single Convector radiator

Durable and versatile, Compact 4 offers a range of cost-effective, rapid heating solutions for homes & working environments.

The Range

MAX WORKING PRESSURE (BAR)

MILD STEEL

VERTICAL MOUNTING

10 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
3SF1000	3SF1000	300	1000	52	H	N/A	30	1848	541	2.6	8.97	White RAL 9016	£213.11
3SF1100	3SF1100	300	1100	52	H	N/A	33	2033	595	2.86	9.73	White RAL 9016	£233.88
3SF1200	3SF1200	300	1200	52	H	N/A	36	2218	649	3.12	10.49	White RAL 9016	£258.34
3SF1300	3SF1300	300	1300	52	H	N/A	39	2402	703	3.38	11.24	White RAL 9016	£278.59
3SF1400	3SF1400	300	1400	52	H	N/A	42	2587	757	3.64	12	White RAL 9016	£301.63
3SF1600	3SF1600	300	1600	52	H	N/A	48	2957	866	4.16	13.51	White RAL 9016	£350.11
3SF1800	3SF1800	300	1800	52	H	N/A	54	3327	974	4.68	15.21	White RAL 9016	£396.25
3SF2000	3SF2000	300	2000	52	H	N/A	60	3696	1082	5.2	16.72	White RAL 9016	£464.05
3SF2200	3SF2200	300	2200	52	H	N/A	66	4066	1190	5.72	18.23	White RAL 9016	£525.78
3SF2400	3SF2400	300	2400	52	H	N/A	72	4435	1298	6.24	19.74	White RAL 9016	£590.36
3SF2700	3SF2700	300	2700	52	H	N/A	81	4990	1461	7.02	22.01	White RAL 9016	£703.81
3SF3000	3SF3000	300	3000	52	H	N/A	90	5544	1623	7.8	24.27	White RAL 9016	£815.33
3SF400	3SF400	300	400	52	H	N/A	12	739	216	1.04	3.76	White RAL 9016	£105.52
3SF500	3SF500	300	500	52	H	N/A	15	924	271	1.3	5.19	White RAL 9016	£117.94
3SF600	3SF600	300	600	52	H	N/A	18	1109	325	1.56	5.94	White RAL 9016	£126.12
3SF700	3SF700	300	700	52	H	N/A	21	1294	379	1.82	6.69	White RAL 9016	£148.08
3SF800	3SF800	300	800	52	H	N/A	24	1478	433	2.08	7.45	White RAL 9016	£170.12
3SF900	3SF900	300	900	52	H	N/A	27	1663	487	2.34	8.2	White RAL 9016	£189.17
4SF1000	4SF1000	400	1000	52	H	N/A	30	2378	697	2.73	11.65	White RAL 9016	£248.65
4SF1100	4SF1100	400	1100	52	H	N/A	33	2616	767	3	12.65	White RAL 9016	£273.06
4SF1200	4SF1200	400	1200	52	H	N/A	36	2854	836	3.28	13.66	White RAL 9016	£297.44
4SF1300	4SF1300	400	1300	52	H	N/A	39	3091	906	3.55	14.66	White RAL 9016	£321.75
4SF1400	4SF1400	400	1400	52	H	N/A	42	3329	976	3.82	15.67	White RAL 9016	£346.01
4SF1500	4SF1500	400	1500	52	H	N/A	45	3567	1046	4.1	16.67	White RAL 9016	£375.40
4SF1600	4SF1600	400	1600	52	H	N/A	48	3805	1115	4.37	17.68	White RAL 9016	£394.56
4SF1800	4SF1800	400	1800	52	H	N/A	54	4280	1255	4.91	19.92	White RAL 9016	£443.10
4SF2000	4SF2000	400	2000	52	H	N/A	60	4756	1394	5.46	21.93	White RAL 9016	£485.70
4SF2200	4SF2200	400	2200	52	H	N/A	66	5232	1533	6.01	23.94	White RAL 9016	£563.71
4SF2400	4SF2400	400	2400	52	H	N/A	72	5707	1673	6.55	25.95	White RAL 9016	£647.13
4SF2700	4SF2700	400	2700	52	H	N/A	81	6421	1882	7.37	28.96	White RAL 9016	£750.41
4SF3000	4SF3000	400	3000	52	H	N/A	90	7134	2091	8.19	31.98	White RAL 9016	£842.34
4SF400	4SF400	400	400	52	H	N/A	12	951	279	1.09	5.6	White RAL 9016	£113.75
4SF500	4SF500	400	500	52	H	N/A	15	1189	349	1.37	6.61	White RAL 9016	£129.53
4SF600	4SF600	400	600	52	H	N/A	18	1427	418	1.64	7.61	White RAL 9016	£151.18
4SF700	4SF700	400	700	52	H	N/A	21	1665	488	1.91	8.61	White RAL 9016	£172.90
4SF800	4SF800	400	800	52	H	N/A	24	1902	558	2.18	9.62	White RAL 9016	£197.41
4SF900	4SF900	400	900	52	H	N/A	27	2140	627	2.46	10.63	White RAL 9016	£226.93
5SF1000	5SF1000	500	1000	52	H	N/A	30	2859	838	2.87	14.33	White RAL 9016	£280.97
5SF1100	5SF1100	500	1100	52	H	N/A	33	3145	922	3.16	15.59	White RAL 9016	£307.76
5SF1200	5SF1200	500	1200	52	H	N/A	36	3431	1006	3.44	16.85	White RAL 9016	£335.01
5SF1300	5SF1300	500	1300	52	H	N/A	39	3717	1089	3.73	18.11	White RAL 9016	£362.10
5SF1400	5SF1400	500	1400	52	H	N/A	42	4003	1173	4.02	19.36	White RAL 9016	£389.11
5SF1500	5SF1500	500	1500	52	H	N/A	45	4289	1257	4.31	20.62	White RAL 9016	£430.55
5SF1600	5SF1600	500	1600	52	H	N/A	48	4574	1341	4.59	21.87	White RAL 9016	£446.02
5SF1800	5SF1800	500	1800	52	H	N/A	54	5146	1508	5.17	24.66	White RAL 9016	£502.66
5SF2000	5SF2000	500	2000	52	H	N/A	60	5718	1676	5.74	27.17	White RAL 9016	£562.15
5SF2200	5SF2200	500	2200	52	H	N/A	66	6290	1844	6.31	29.68	White RAL 9016	£646.23
5SF2400	5SF2400	500	2400	52	H	N/A	72	6862	2011	6.89	32.2	White RAL 9016	£732.96
5SF400	5SF400	500	400	52	H	N/A	12	1144	335	1.15	6.78	White RAL 9016	£132.15
5SF500	5SF500	500	500	52	H	N/A	15	1430	419	1.44	8.03	White RAL 9016	£151.67
5SF600	5SF600	500	600	52	H	N/A	18	1715	503	1.72	9.29	White RAL 9016	£172.90
5SF700	5SF700	500	700	52	H	N/A	21	2001	587	2.01	10.54	White RAL 9016	£200.04
5SF800	5SF800	500	800	52	H	N/A	24	2287	670	2.3	11.81	White RAL 9016	£229.76
5SF900	5SF900	500	900	52	H	N/A	27	2573	754	2.58	13.06	White RAL 9016	£256.71
6SF1000	6SF1000	600	1000	52	H	N/A	30	3310	970	3	17.01	White RAL 9016	£300.72
6SF1000A	6SF1000A	600	1000	52	H	N/A	30	3310	970	3.00	17.01	Anthracite RAL 7016	£436.05
6SF1100	6SF1100	600	1100	52	H	N/A	33	3641	1067	3.3	18.52	White RAL 9016	£330.61
6SF1200	6SF1200	600	1200	52	H	N/A	36	3972	1164	3.6	20.03	White RAL 9016	£360.51
6SF1200A	6SF1200A	600	1200	52	H	N/A	36	3972	1164	3.60	20.03	Anthracite RAL 7016	£519.14
6SF1300	6SF1300	600	1300	52	H	N/A	39	4303	1261	3.9	21.54	White RAL 9016	£421.52
6SF1400	6SF1400	600	1400	52	H	N/A	42	4633	1358	4.2	23.04	White RAL 9016	£429.91
6SF1400A	6SF1400A	600	1400	52	H	N/A	42	4633	1358	4.20	23.04	Anthracite RAL 7016	£614.78
6SF1500	6SF1500	600	1500	52	H	N/A	45	4964	1455	4.5	24.56	White RAL 9016	£459.05
6SF1600	6SF1600	600	1600	52	H	N/A	48	5295	1552	4.8	26.06	White RAL 9016	£482.25
6SF1600A	6SF1600A	600	1600	52	H	N/A	48	5295	1552	4.80	26.06	Anthracite RAL 7016	£684.79
6SF1800	6SF1800	600	1800	52	H	N/A	54	5957	1746	5.4	29.38	White RAL 9016	£583.54
6SF2000	6SF2000	600	2000	52	H	N/A	60	6619	1940	6	32.4	White RAL 9016	£654.21
6SF2200	6SF2200	600	2200	52	H	N/A	66	7281	2134	6.6	35.42	White RAL 9016	£753.00
6SF2400	6SF2400	600	2400	52	H	N/A	72	7943	2328	7.2	38.44	White RAL 9016	£847.98
6SF400	6SF400	600	400	52	H	N/A	12	1324	388	1.2	7.94	White RAL 9016	£152.66
6SF500	6SF500	600	500	52	H	N/A	15	1655	485	1.5	9.45	White RAL 9016	£165.56
6SF600	6SF600	600	600	52	H	N/A	18	1986	582	1.8	10.96	White RAL 9016	£181.61
6SF600A	6SF600A	600	600	52	H	N/A	18	1986	582	1.50	10.96	Anthracite RAL 7016	£272.40
6SF700	6SF700	600	700	52	H	N/A	21	2317	679	2.1	12.47	White RAL 9016	£211.39
6SF800	6SF800	600	800	52	H	N/A	24	2648	776	2.4	13.98	White RAL 9016	£241.13
6SF800A	6SF800A	600	800	52	H	N/A	24	2648	776	2.40	13.98	Anthracite RAL 7016	£354.47
6SF900	6SF900	600	900	52	H	N/A	27	2979	873	2.7	15.49	White RAL 9016	£270.94
7SF1000	7SF1000	700	1000	52	H	N/A	30	3729	1093	3.3	19.39	White RAL 9016	£399.09
7SF1100	7SF1100	700	1100	52	H	N/A	33	4102	1202	3.63	21.12	White RAL 9016	£439.17
7SF1200	7SF1200	700	1200	52	H	N/A	36	4475	1312	3.96	22.85	White RAL 9016	£479.28
7SF1300	7SF1300	700	1300	52	H	N/A	39	4848	1421	4.29	24.58	White RAL 9016	£519.22
7SF1400	7SF1400	700	1400	52	H	N/A	42	5221	1530	4.62	26.3	White RAL 9016	£559.13
7SF1500	7SF1500	700	1500	52	H	N/A	45	5594	1640	4.95	28.03	White RAL 9016	£598.96
7SF1600	7SF1600	700	1600	52	H	N/A	48	5967	1749	5.28	29.76	White RAL 9016	£638.80
7SF1800	7SF1800	700	1800	52	H	N/A	54	6713	1967	5.94	33.57	White RAL 9016	£718.44
7SF2000	7SF2000	700	2000	52	H	N/A	60	7459	2186	6.6	37.02	White RAL 9016	£806.30
7SF2200	7SF2200	700	2200	52	H	N/A	66	8204	2405	7.26	40.48	White RAL 9016	£912.81
7SF2400	7SF2400	700	2400	52	H	N/A	72	8950	2623	7.92	43.93	White RAL 9016	£1,080.66
7SF400	7SF400	700	400	52	H	N/A	12	1492	437	1.32	9.01	White RAL 9016	£194.45
7SF500	7SF500	700	500	52	H	N/A	15	1865	547	1.65	10.74	White RAL 9016	£203.29
7SF600	7SF600	700	600	52	H	N/A	18	2238	656	1.98	12.46	White RAL 9016	£243.63
7SF700	7SF700	700	700	52	H	N/A	21	2611	765	2.31	14.19	White RAL 9016	£282.90
7SF800	7SF800	700	800	52	H	N/A	24	2983	874	2.64	15.92	White RAL 9016	£325.20
7SF900	7SF900	700	900	52	H	N/A	27	3356	984	2.97	17.65	White RAL 9016	£365.35
9SF1000	9SF1000	900	1000	52	H	N/A	30	4473	1311	3.9	24.87	White RAL 9016	£514.46
9SF1100	9SF1100	900	1100	52	H	N/A	33	4920	1442	4.29	27.11	White RAL 9016	£567.54
9SF1200	9SF1200	900	1200	52	H	N/A	36	5368	1573	4.68	29.35	White RAL 9016	£620.57
9SF1400	9SF1400	900	1400	52	H	N/A	39	6262	1835	5.46	33.83	White RAL 9016	£721.23
9SF400	9SF400	900	400	52	H	N/A	12	1789	524	1.56	11.41	White RAL 9016	£254.88
9SF500	9SF500	900	500	52	H	N/A	15	2237	656	1.95	13.65	White RAL 9016	£262.63
9SF600	9SF600	900	600	52	H	N/A	18	2684	787	2.34	15.89	White RAL 9016	£310.23
9SF700	9SF700	900	700	52	H	N/A	21	3131	918	2.73	18.13	White RAL 9016	£360.68
9SF800	9SF800	900	800	52	H	N/A	24	3578	1049	3.12	20.37	White RAL 9016	£410.97
9SF900	9SF900	900	900	52	H	N/A	27	4026	1180	3.51	22.61	White RAL 9016	£463.95

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
