Chelmsford Straight

With the 25mm premium quality tubes, the Chelmsford Straight range of towel rails is the ideal choice for kitchens and bathrooms. A simplistic design that provides effective heating. It also comes as fully electric, the simple solution for heating areas where there are no central heating outlets available.

Accessories such as towel bar attachments and hooks are available with this range

The details:
• 5-Year Warranty
• Available in 19 size options
• Available in Black RAL 9005, Chrome and White RAL 9016 finishes (Not all sizes available in every finish)
• We recommend pipework is not installed until receipt of radiator
• All prices are exclusive of VAT and delivery

SKU: Chelmsford Straight Categories: Bathroom, Chelmsford Straight, Range Where to buy

The Range

MAX WORKING PRESSURE (BAR)

95 DEGREES MAX WORKING TEMP.

Closed System

Mild Steel

VERTICAL MOUNTING

5 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
3MC12	3M12C	1195	310	30	H	3	21	1383	405	4.1	8.2	Chrome	£176.23

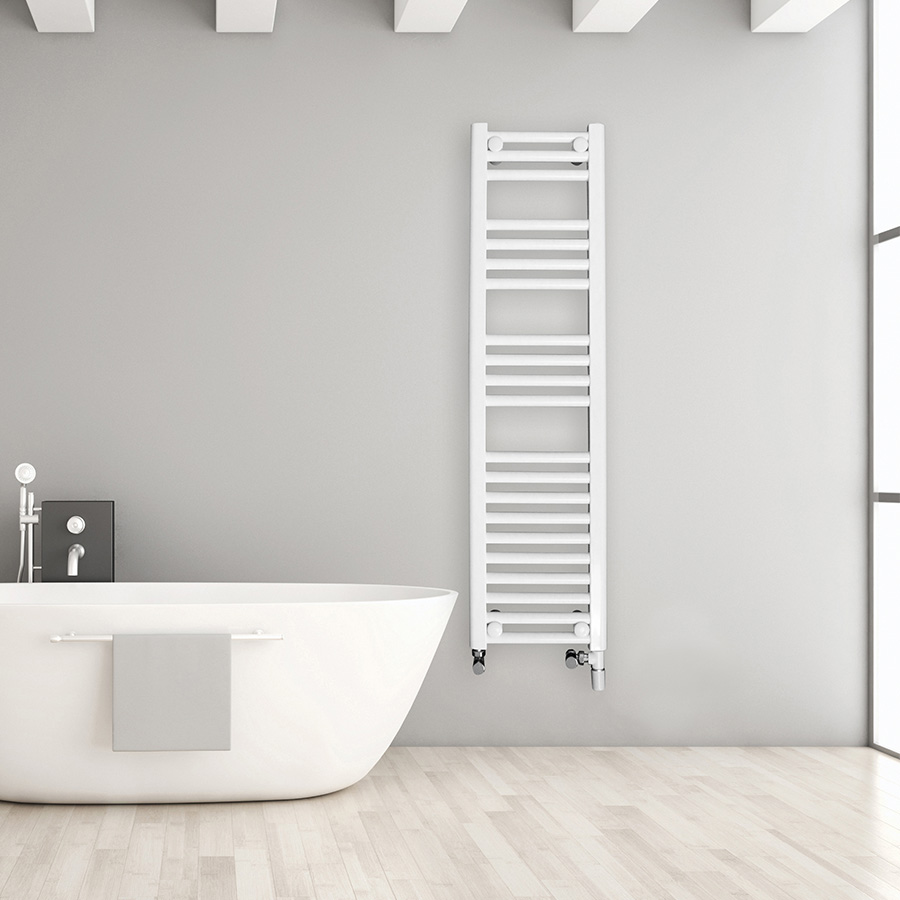

3M12	3M12W	1195	310	30	H	3	21	1383	405	4.1	8.2	White RAL 9016	£79.84
3MC8	3M8C	790	310	30	H	2	14	922	270	2.7	5.6	Chrome	£126.57
3M8	3M8W	790	310	30	H	2	14	922	270	2.7	5.6	White RAL 9016	£71.08
4MC12	4M12C	1200	420	30	H	2	23	1779	521	5.3	10.6	Chrome	£167.47

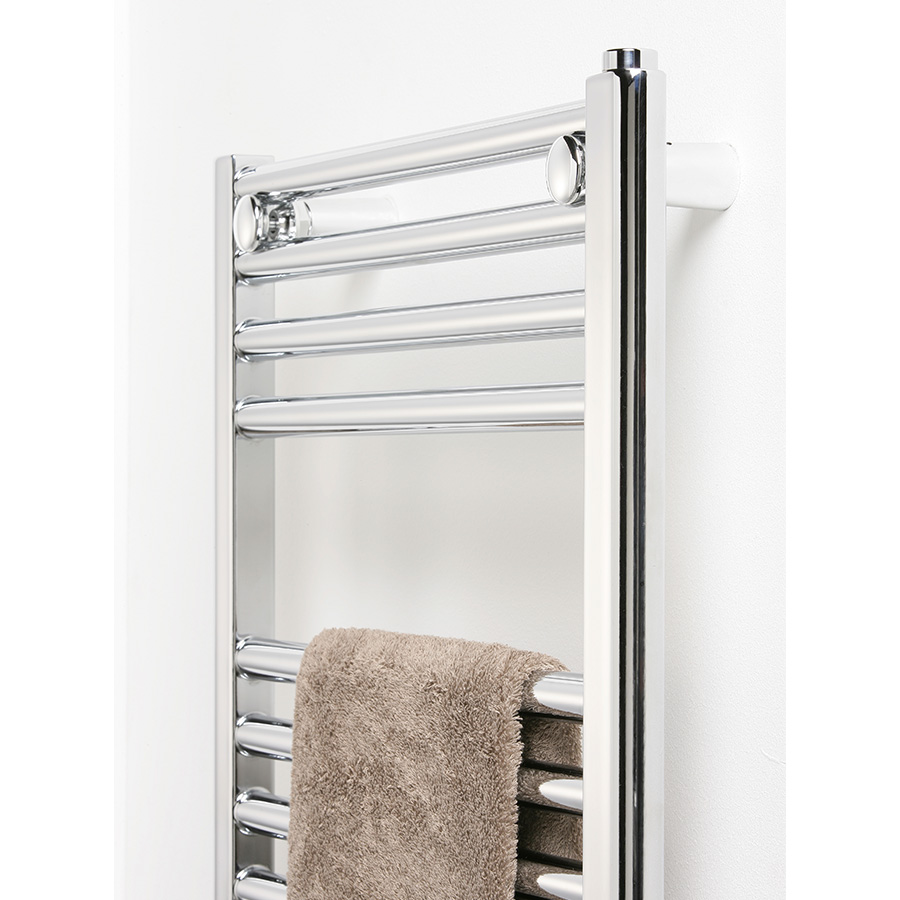

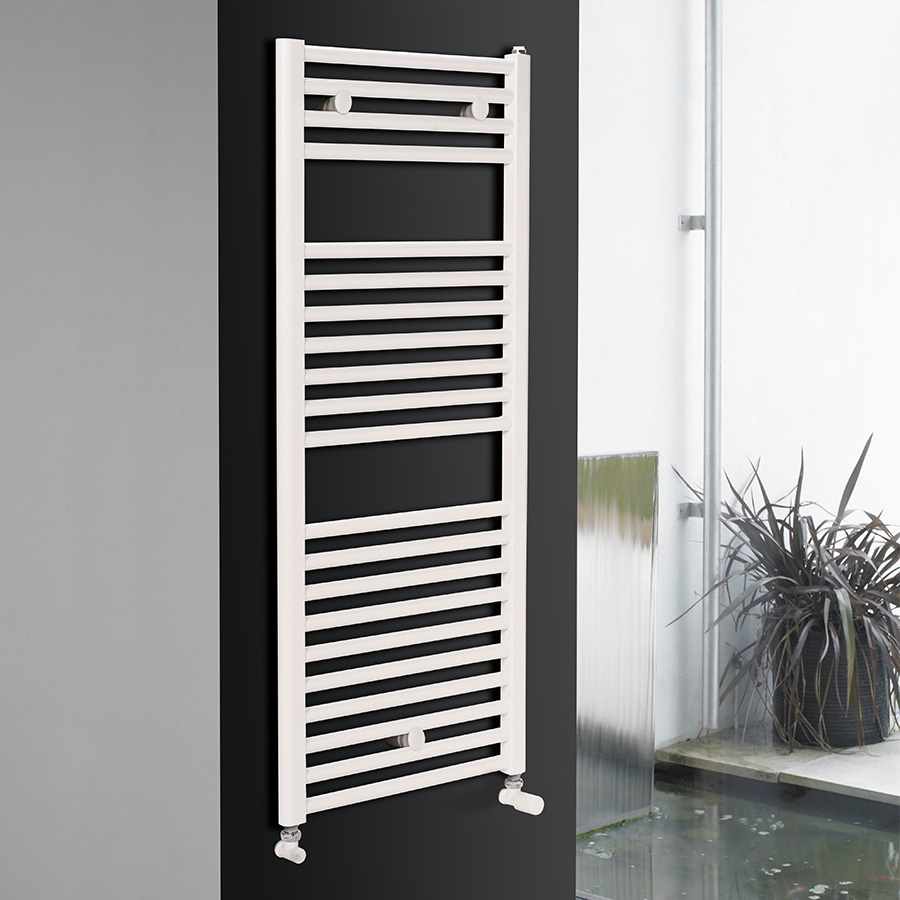

4M12	4M12W	1200	420	30	H	2	23	1779	521	5.3	10.6	White RAL 9016	£96.39
4MC15	4M15C	1467	420	30	H	3	26	2104	616	6.2	12.3	Chrome	£202.52
4M15	4M15W	1467	420	30	H	3	26	2104	616	6.2	12.3	White RAL 9016	£111.97
4MC7	4M7C	700	420	30	H	1	13	1052	308	3	6.2	Chrome	£127.55
4M7	4M7W	700	420	30	H	1	13	1052	308	3	6.2	White RAL 9016	£72.05
4MC9	4M9C	900	420	30	H	2	16	1294	379	3.8	7.7	Chrome	£147.02
4M9	4M9W	900	420	30	H	2	16	1294	379	3.8	7.7	White RAL 9016	£81.79
5MB11	5M11B	1172	500	30	H	2	21	1875	549	5.7	11.3	Black RAL 9005	£114.49

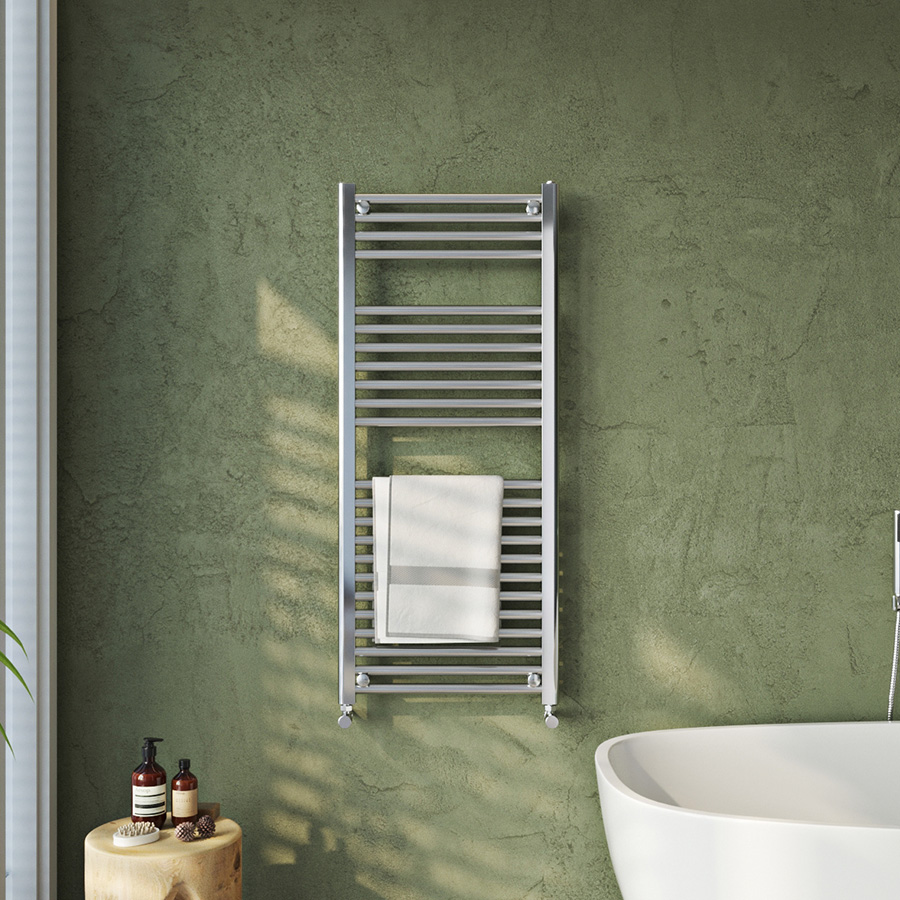

5MC11	5M11C	1172	500	30	H	2	21	1875	549	5.7	11.3	Chrome	£172.34

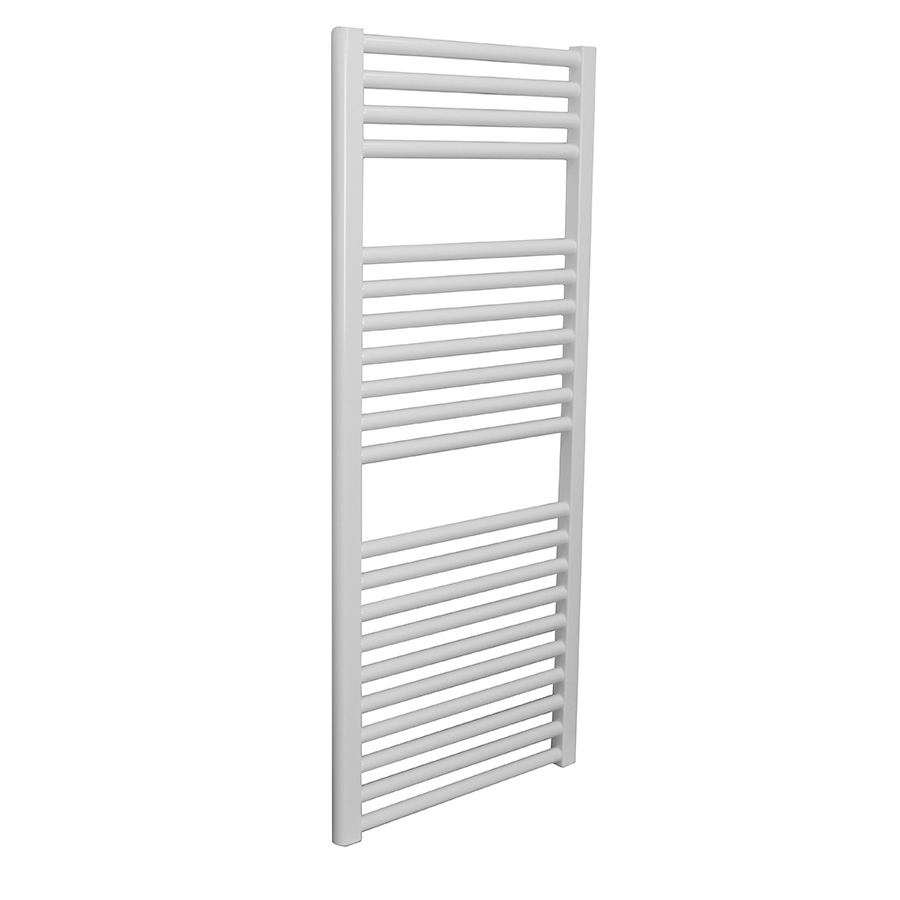

5M11	5M11W	1172	500	30	H	2	21	1875	549	5.7	11.3	White RAL 9016	£103.21

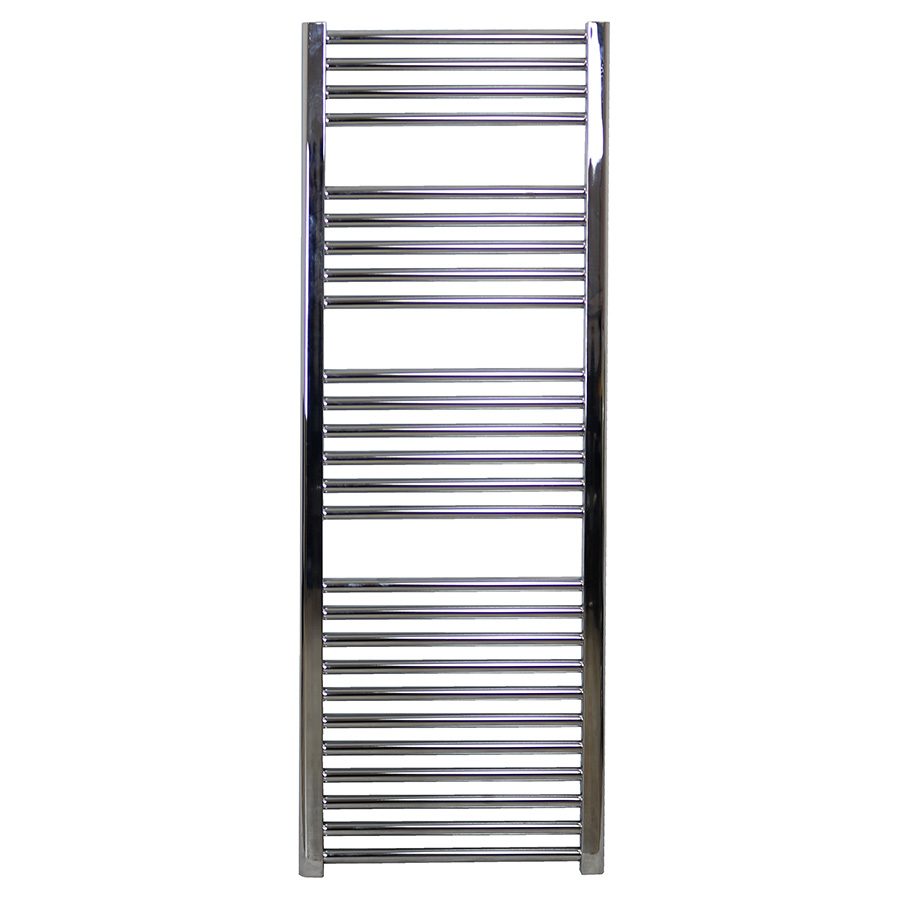

5MC15	5M15C	1467	500	30	H	3	26	2322	680	7.1	14	Chrome	£221.99

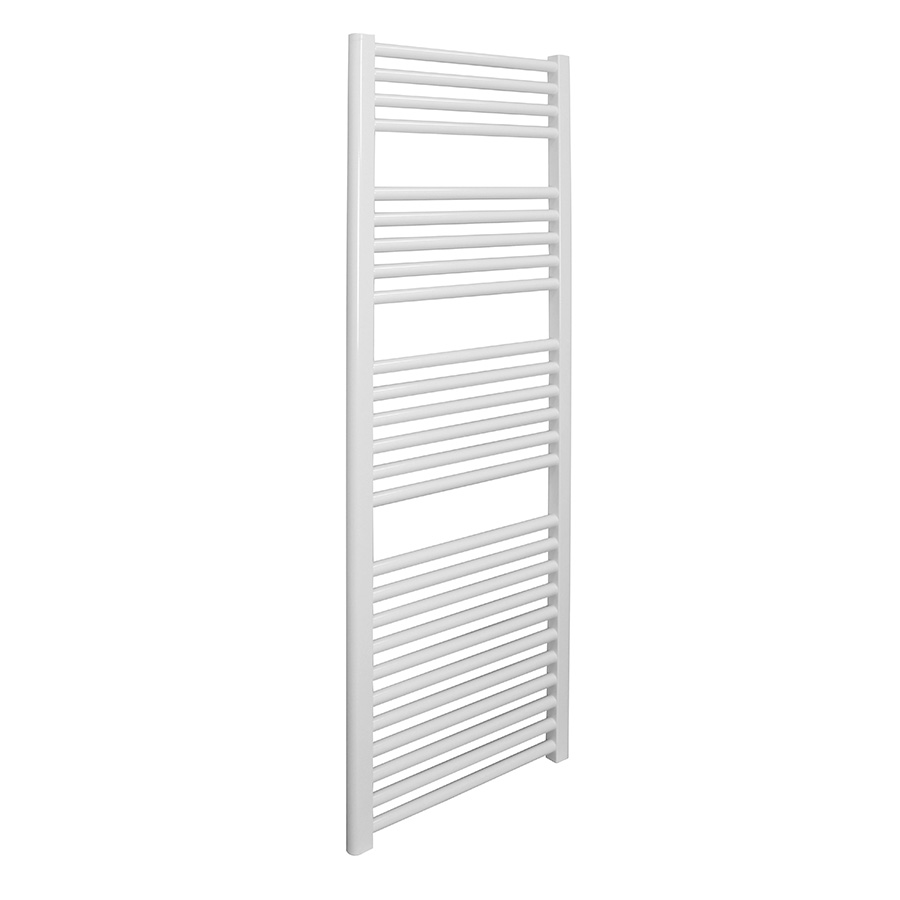

5M15	5M15W	1467	500	30	H	3	26	2322	680	7.1	14	White RAL 9016	£128.52
5MB17	5M17B	1750	500	30	H	3	32	2858	837	8.6	16.9	Black RAL 9005	£176.70
5MC17	5M17C	1750	500	30	H	3	32	2858	837	8.6	16.9	Chrome	£283.33
5M17	5M17W	1750	500	30	H	3	32	2858	837	8.6	16.9	White RAL 9016	£158.71

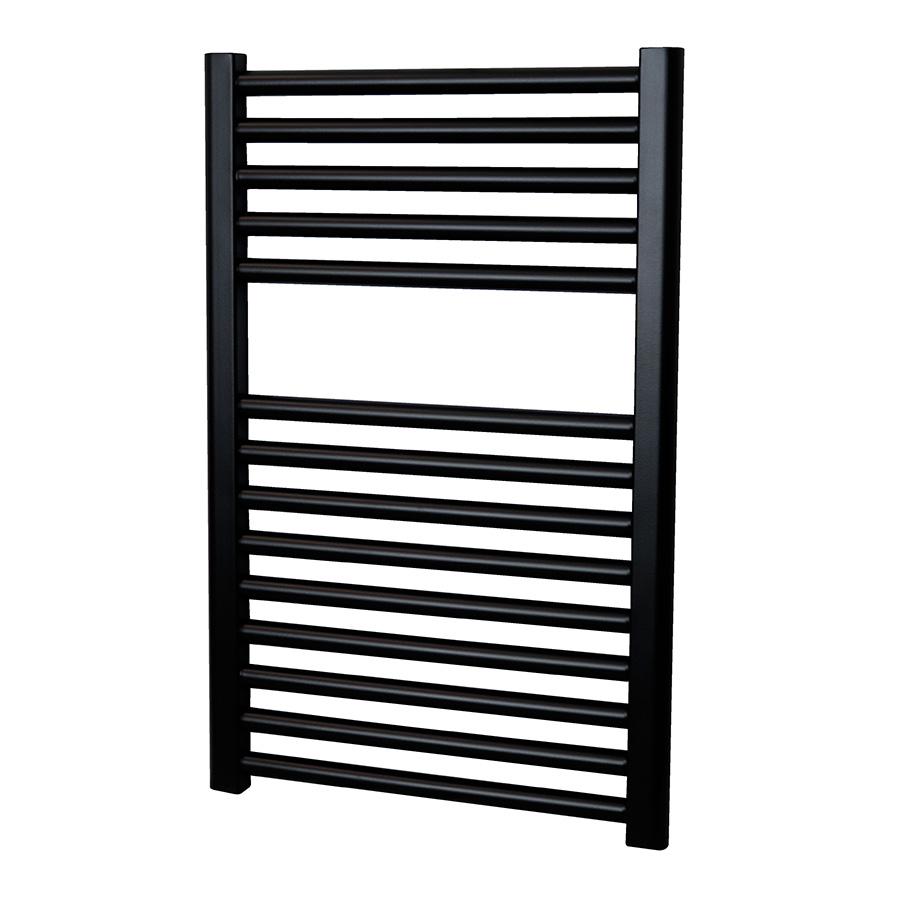

5MB7	5M7B	764	500	30	H	1	14	1250	366	3.8	7.6	Black RAL 9005	£90.15
5MC7	5M7C	764	500	30	H	1	14	1250	366	3.8	7.6	Chrome	£133.39
5M7	5M7W	764	500	30	H	1	14	1250	366	3.8	7.6	White RAL 9016	£80.81

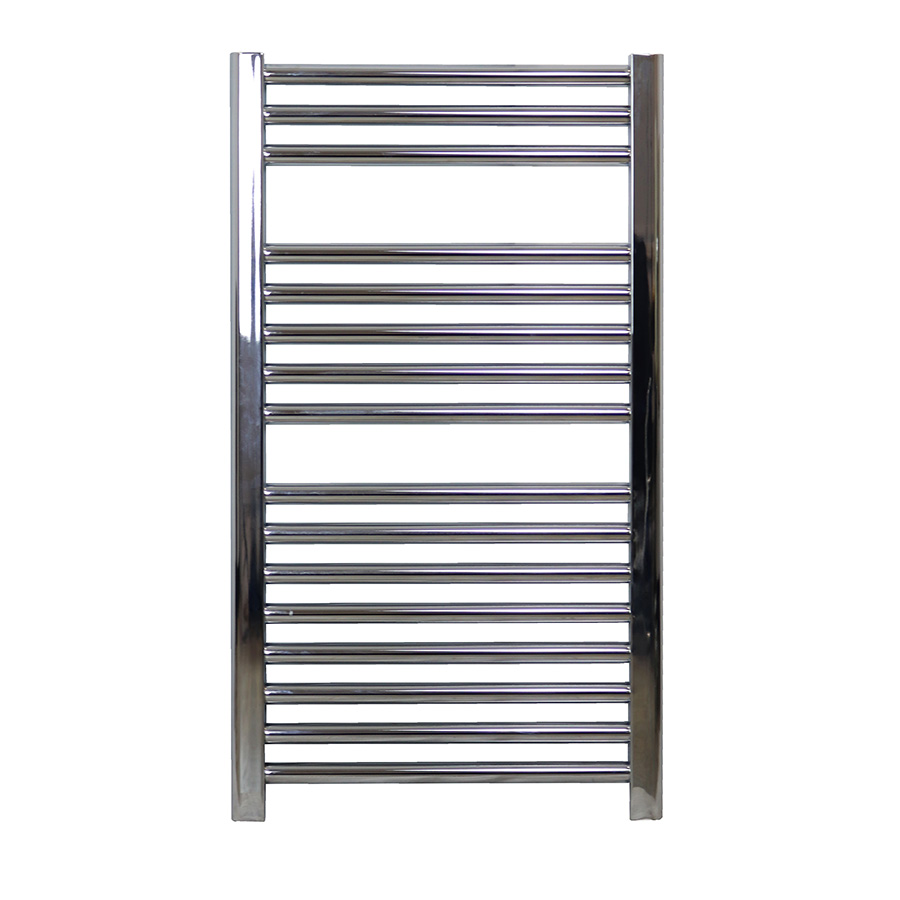

5MC9	5M9C	900	500	30	H	2	16	1427	418	4.3	8.8	Chrome	£157.73
5M9	5M9W	900	500	30	H	2	16	1427	418	4.3	8.8	White RAL 9016	£89.58
6MB11	6M11B	1172	600	30	H	2	21	2274	666	6.5	13	Black RAL 9005	£119.01
6MC11	6M11C	1172	600	30	H	2	21	2274	666	6.5	13	Chrome	£182.07
6M11	6M11W	1172	600	30	H	2	21	2274	666	6.5	13	White RAL 9016	£107.10
6MC15	6M15C	1467	600	30	H	3	26	2770	811	8.1	16.1	Chrome	£248.28
6M15	6M15W	1467	600	30	H	3	26	2770	811	8.1	16.1	White RAL 9016	£140.21
6MB17	6M17B	1750	600	30	H	3	32	3463	1014	9.9	19.5	Black RAL 9005	£199.24
6MC17	6M17C	1750	600	30	H	3	32	3463	1014	9.9	19.5	Chrome	£301.83
6M17	6M17W	1750	600	30	H	3	32	3463	1014	9.9	19.5	White RAL 9016	£179.15
6MB7	6M7B	764	600	30	H	1	14	1516	444	4.3	8.8	Black RAL 9005	£95.56
6MC7	6M7C	764	600	30	H	1	14	1516	444	4.3	8.8	Chrome	£141.18
6M7	6M7W	764	600	30	H	1	14	1516	444	4.3	8.8	White RAL 9016	£85.68
6MC9	6M9C	900	600	30	H	2	16	1731	507	5	10.1	Chrome	£170.39
6M9	6M9W	900	600	30	H	2	16	1731	507	5	10.1	White RAL 9016	£94.44
7MC11	7M11C	1172	750	30	H	2	21	2770	811	7.8	15.6	Chrome	£233.68
7M11	7M11W	1172	750	30	H	2	21	2770	811	7.8	15.6	White RAL 9016	£141.18
7MC17	7M17C	1750	750	30	H	3	32	4218	1235	11.8	23.4	Chrome	£348.57
7M17	7M17W	1750	750	30	H	3	32	4218	1235	11.8	23.4	White RAL 9016	£207.39
7MC7	7M7C	764	750	30	H	1	14	1844	540	5.2	10.5	Chrome	£173.31
7M7	7M7W	764	750	30	H	1	14	1844	540	5.2	10.5	White RAL 9016	£105.15

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
