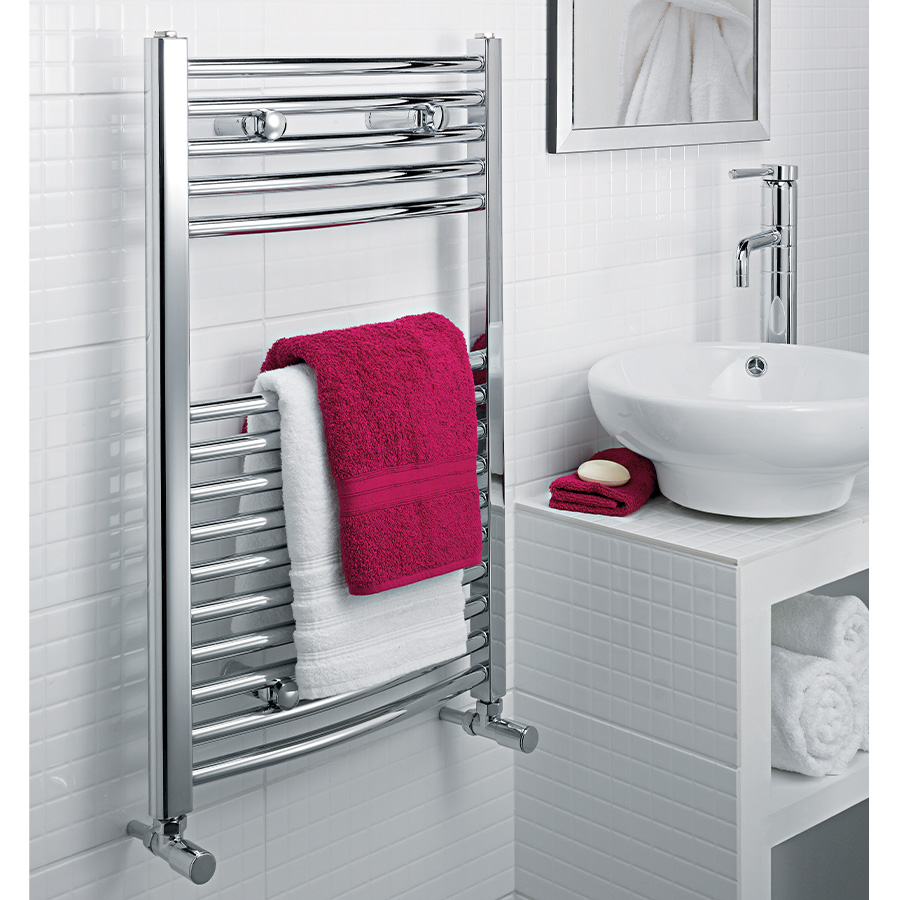

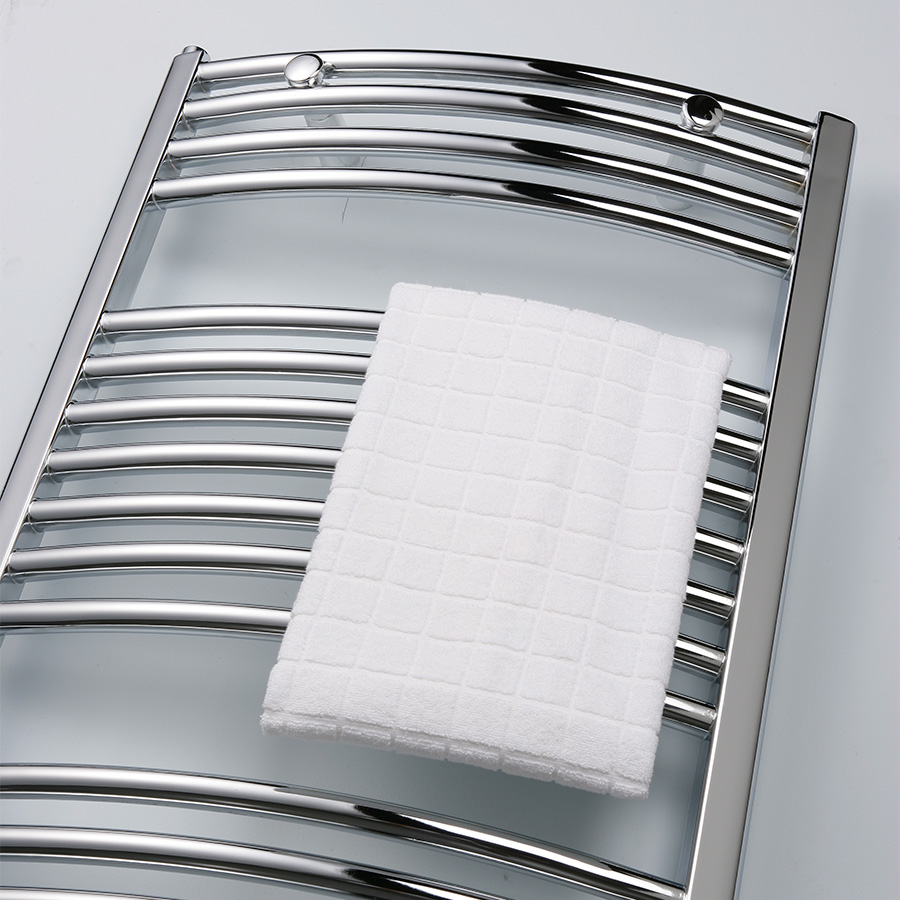

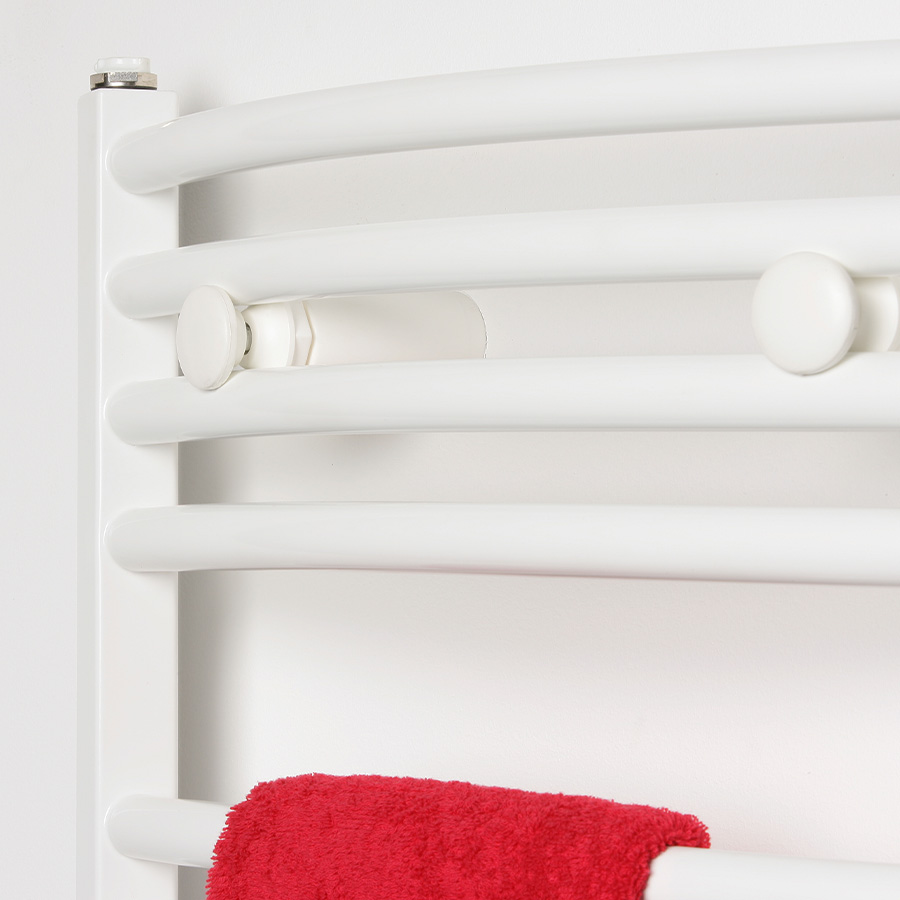

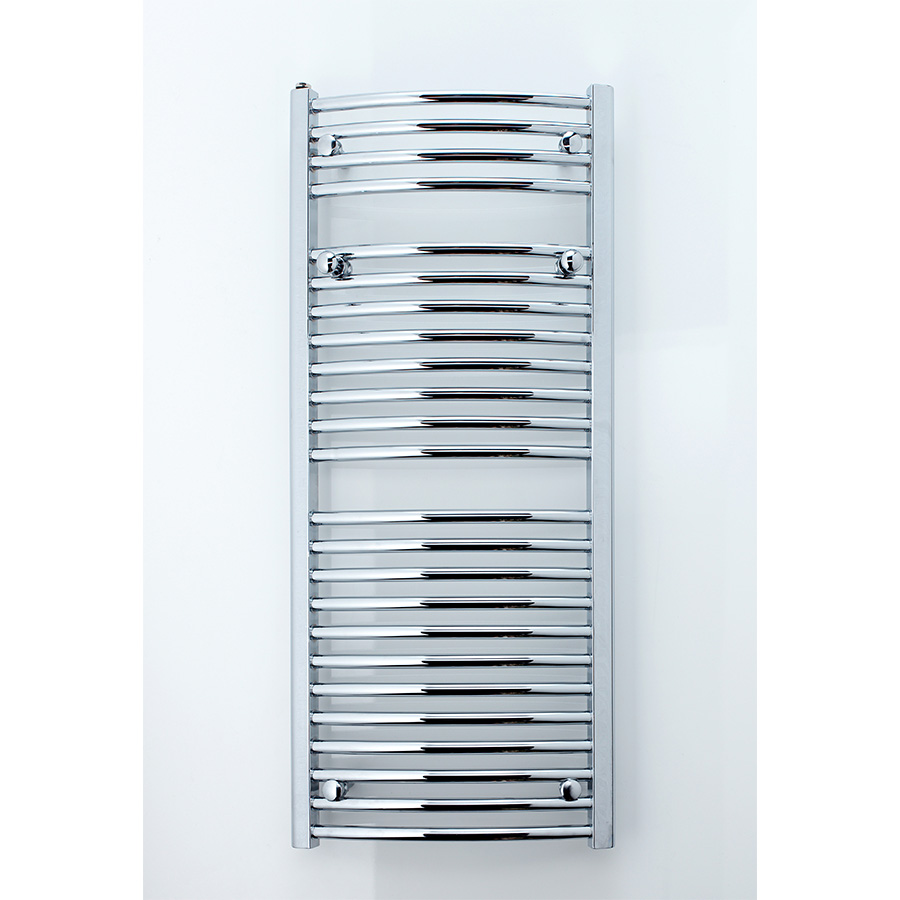

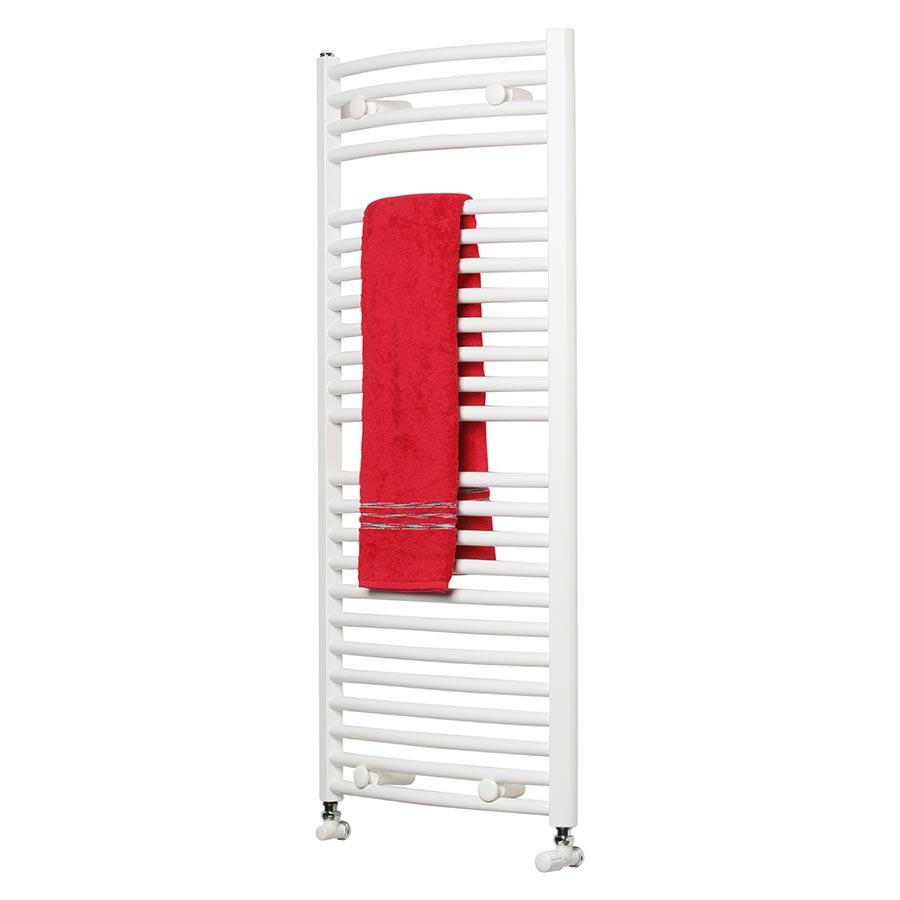

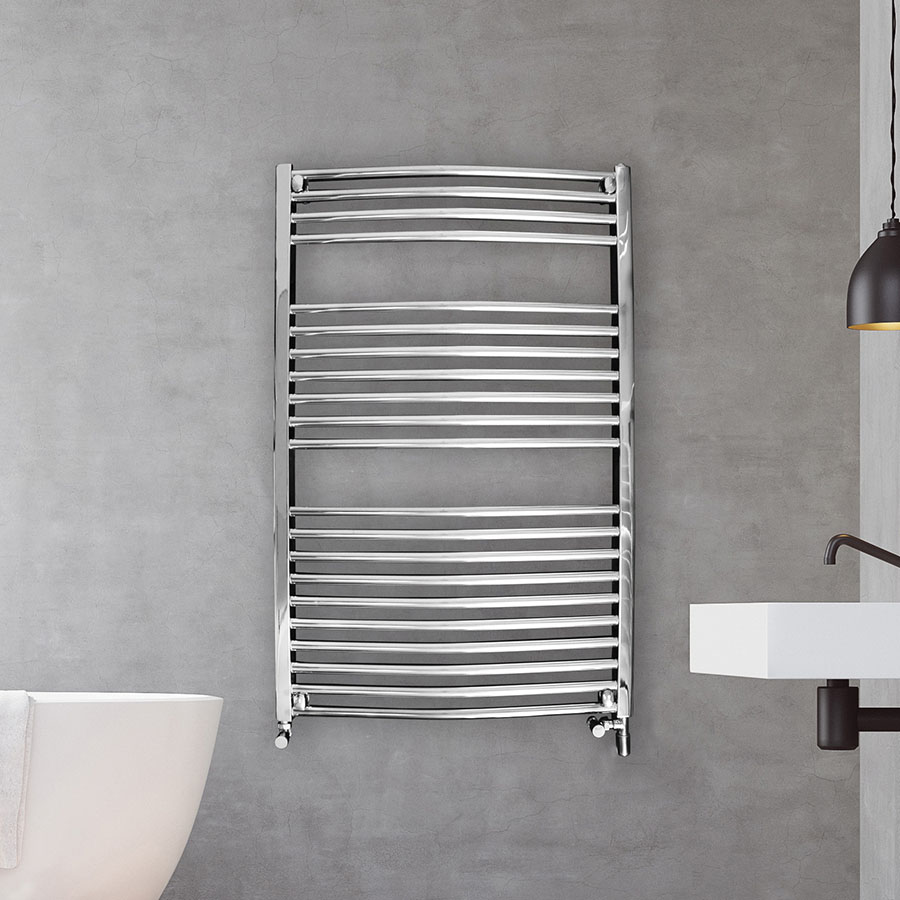

Chelmsford Arched

As a contemporary, heated bathroom rail, the premium quality 25mm tubes provide an unbeatable combination of style and practicality. The Chelmsford Arched is perfect for kitchens and bathrooms of any design.

The details:
• 5-Year Warranty
• Available in 14 size options
• Available in Chrome and White RAL 9016 finishes
• We recommend pipework is not installed until receipt of radiator
• All prices are exclusive of VAT and delivery

SKU: Chelmsford Arched Categories: , , Where to buy

The Range

MAX WORKING PRESSURE (BAR)

95 DEGREES MAX WORKING TEMP.

Closed System

MILD STEEL

VERTICAL MOUNTING

5 YEARS WARRANTY

PRODUCT NAMEHEIGHT (mm)LENGTH (mm)DEPTH(mm)FUEL OPTIONSTOWEL GAPSPIPES/SECTIONSHEAT OUTPUT (BTU)HEAT OUTPUT (WATTS)WATER CONTENT (L)GROSS WEIGHT (KG)FINISHRRPTECHNICAL
4MA12C120042055E/H/D22217835225.210.5Chrome£233.68
4MA12W120042055E/H/D22217835225.210.5White RAL 9016£137.61
4MA7C70042055E/H/D11310523083.16.4Chrome£173.96
4MA7W70042055E/H/D11310523083.16.4White RAL 9016£99.96
4MA9C90042055E/H/D21612983803.97.9Chrome£205.12
4MA9W90042055E/H/D21612983803.97.9White RAL 9016£115.54
5MA11C117250060E/H/D22118955555.711.5Chrome£238.87
5MA11W117250060E/H/D22118955555.711.5White RAL 9016£140.21
5MA15C146750060E/H/D32623506887.114.2Chrome£308.97
5MA15W146750060E/H/D32623506887.114.2White RAL 9016£181.75
5MA17C175050060E/H/D33228898468.717.2Chrome£392.06
5MA17W175050060E/H/D33228898468.717.2White RAL 9016£218.10
5MA7C76450060E/H/D11412643703.87.8Chrome£184.34
5MA7W76450060E/H/D11412643703.87.8White RAL 9016£110.35
6MA11C117260065E/H/D22122956726.613.3Chrome£254.45
6MA11W117260065E/H/D22122956726.613.3White RAL 9016£163.57
6MA15C146760065E/H/D32628418328.216.4Chrome£338.83
6MA15W146760065E/H/D32628418328.216.4White RAL 9016£190.84
6MA17C175060065E/H/D332349710249.919.8Chrome£412.83
6MA17W175060065E/H/D332349710249.919.8White RAL 9016£242.76
6MA7C76460065E/H/D11415304484.39Chrome£192.13
6MA7W76460065E/H/D11415304484.39White RAL 9016£115.54
7MA11C117275070E/H/D22127978197.815.9Chrome£324.55
7MA11W117275070E/H/D22127978197.815.9White RAL 9016£197.33
7MA17C175075070E/H/D3324262124811.923.8Chrome£476.44
7MA17W175075070E/H/D3324262124811.923.8White RAL 9016£260.94
7MA7C76475070E/H/D11418655465.210.8Chrome£241.47
7MA7W76475070E/H/D11418655465.210.8White RAL 9016£144.10
When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
