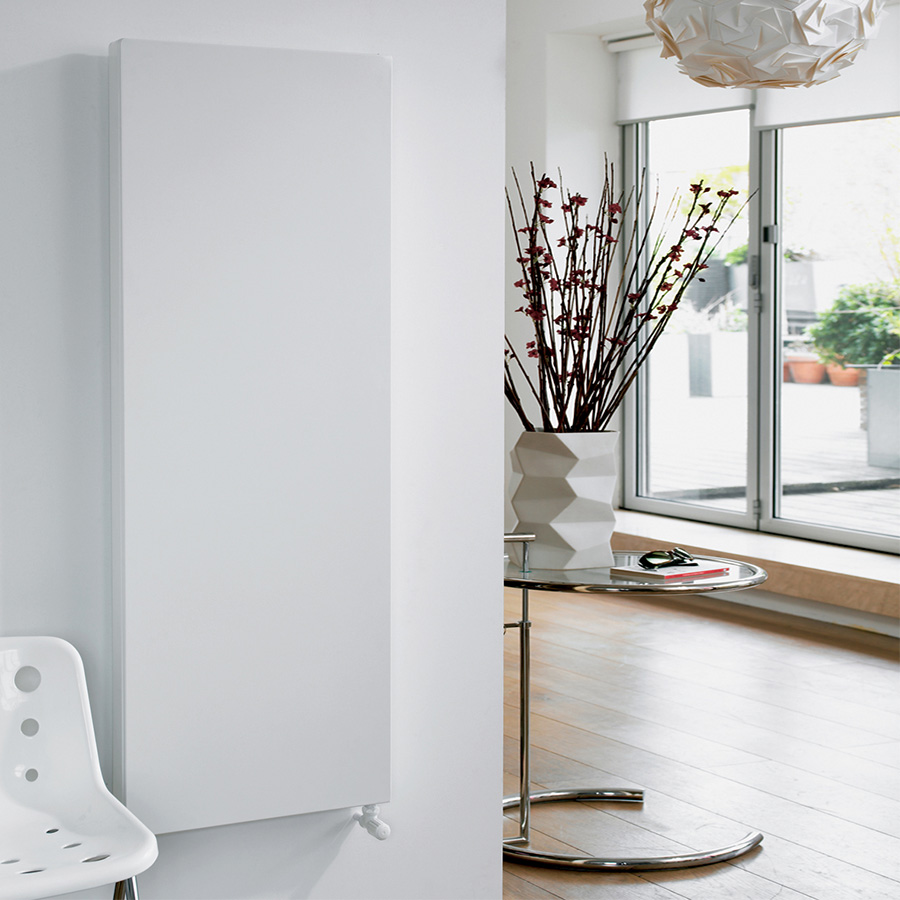

MODEL SHOWN: 16VPH500 (White RAL 9016)

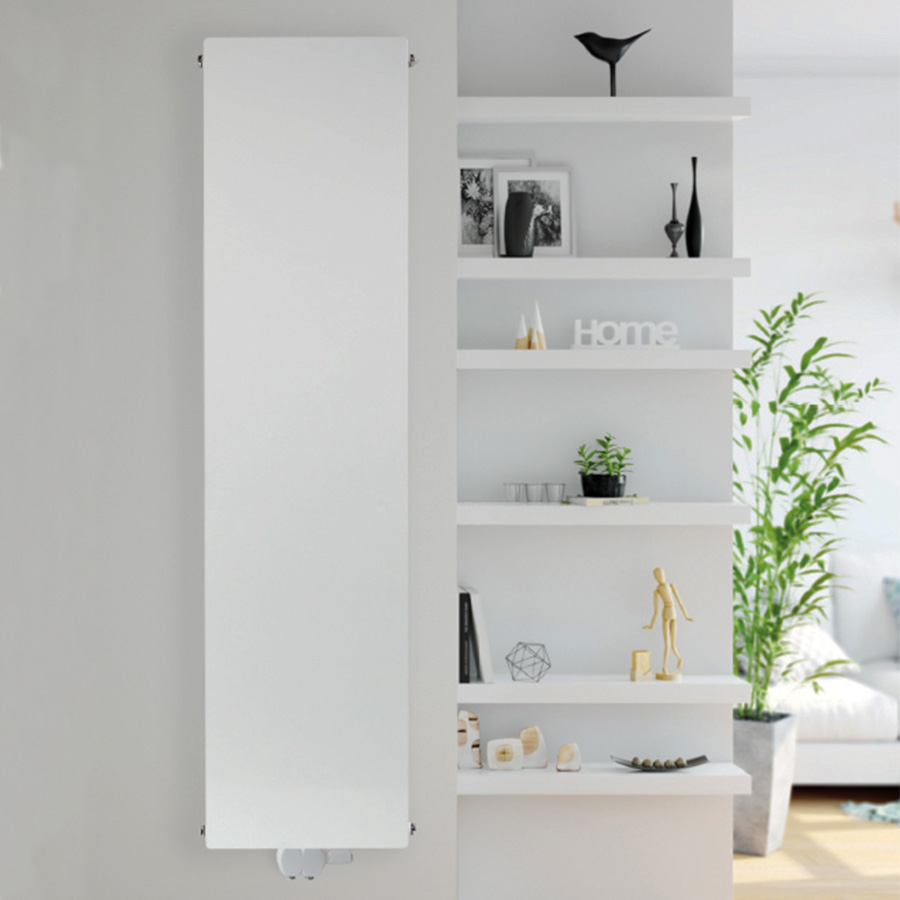

MODEL SHOWN: For Illustration Purposes (White RAL 9016)

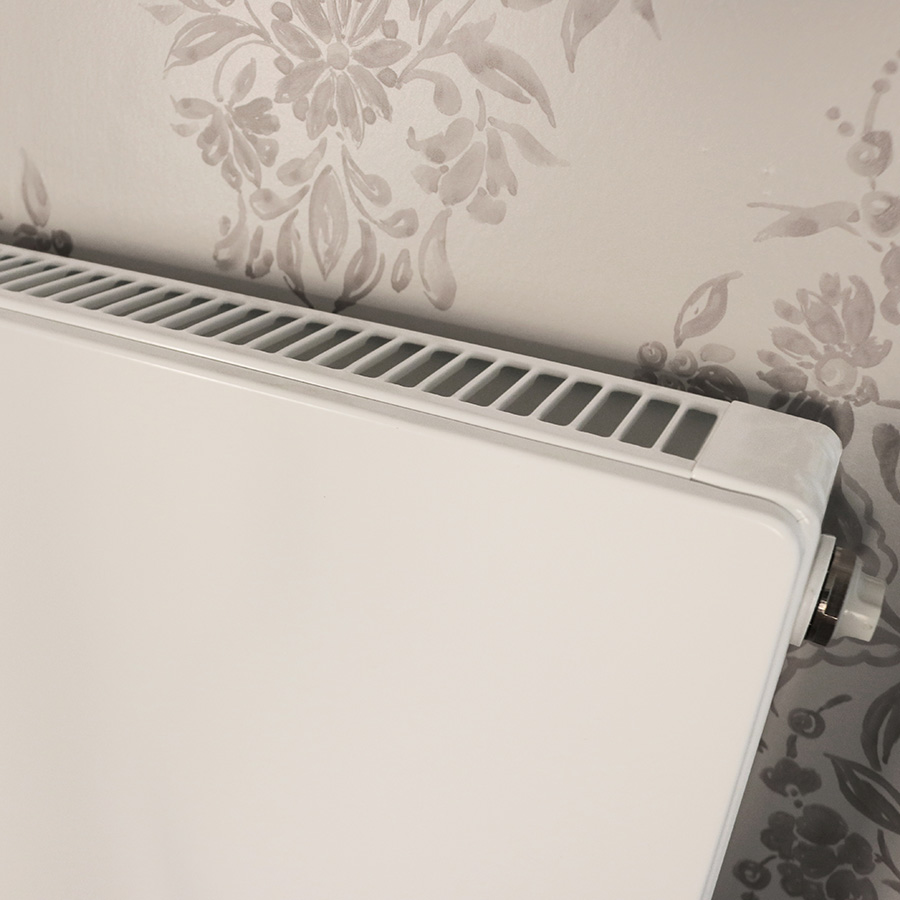

MODEL SHOWN: 16VPS500 (White RAL 9016)

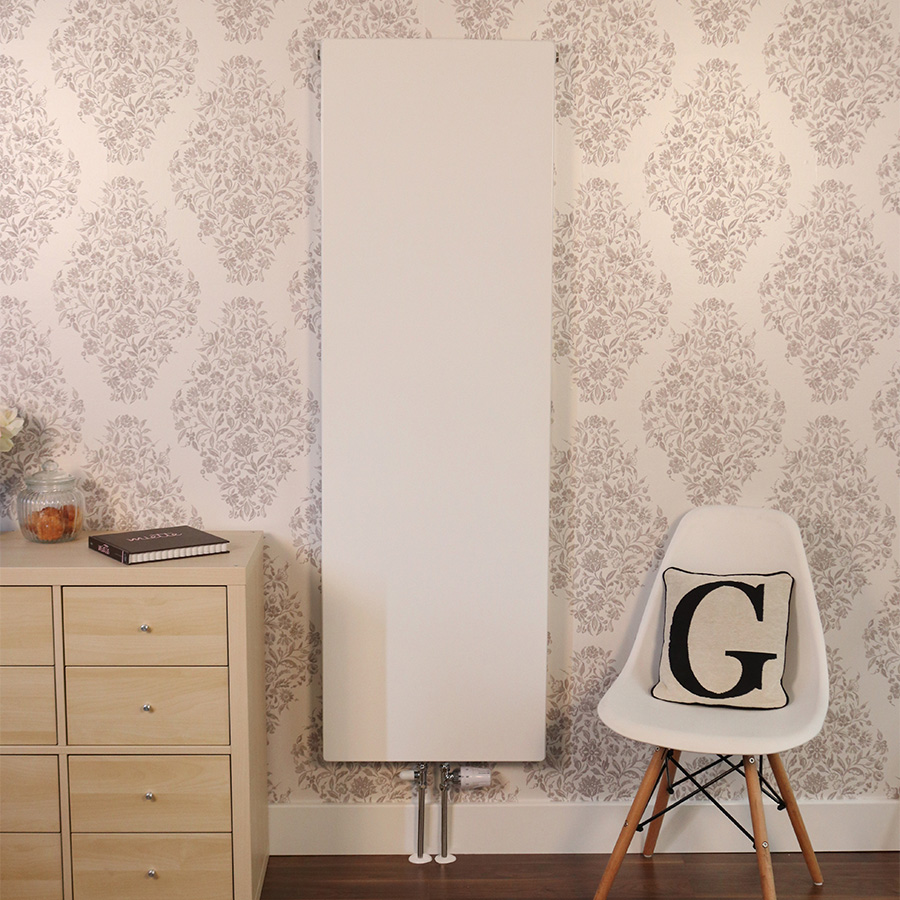

MODEL SHOWN: 16VPS500 (White RAL 9016)

Planal Vertical

The Planal radiators are the ideal choice for modern interiors, this ultra-stylish range is designed with a smooth flat panel that is durable and easy to clean. The Planal radiators come in a horizontal and vertical design.

The details:
• 5-Year Warranty
• Available in 97 size options
• High-quality white powder coat finish (RAL 9016)
• We recommend pipework is not installed until receipt of radiator
• Please allow up to 10 weeks for delivery for made to order models
• All prices are exclusive of VAT and delivery

Description

Description

Modern and impressive. The ultimate modern statement for your room, Planal Vertical radiators provide a discrete, sophisticated new look, while efficiently heating your room.

The Range

Max Working Pressure 10 Bars

95 DEGREES MAX WORKING TEMP.

Closed System

MILD STEEL

VERTICAL MOUNTING

5 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
12VPD700-R	12VPD700R	1200	700	104	H	N/A	36	6424	1881	7.7	51.2	Other Solid Matt RAL	£1,222.40
12VPD700-T	12VPD700T	1200	700	104	H	N/A	36	6424	1881	7.7	51.2	Metallic Micrograin Matt Paint	£1,344.63
12VPD700	12VPD700W	1200	700	104	H	N/A	36	6424	1881	7.7	51.2	White RAL 9016	£719.06
12VPD900-R	12VPD900R	1200	900	104	H	N/A	36	8257	2418	9.2	65.57	Other Solid Matt RAL	£1,513.01
12VPD900-T	12VPD900T	1200	900	104	H	N/A	36	8257	2418	9.2	65.57	Metallic Micrograin Matt Paint	£1,664.32
12VPD900	12VPD900W	1200	900	104	H	N/A	36	8257	2418	9.2	65.57	White RAL 9016	£890.01
12VPH200-R	12VPH200R	1200	200	71	H	N/A	36	1748	512	2.8	14.55	Other Solid Matt RAL	£537.65
12VPH200-T	12VPH200T	1200	200	71	H	N/A	36	1748	512	2.8	14.55	Metallic Micrograin Matt Paint	£591.42
12VPH200	12VPH200W	1200	200	71	H	N/A	36	1748	512	2.8	14.55	White RAL 9016	£316.27
12VPH300-R	12VPH300R	1200	300	71	H	N/A	36	2250	659	4.2	22.45	Other Solid Matt RAL	£546.44
12VPH300-T	12VPH300T	1200	300	71	H	N/A	36	2250	659	4.2	22.45	Metallic Micrograin Matt Paint	£601.08
12VPH300	12VPH300W	1200	300	71	H	N/A	36	2250	659	4.2	22.45	White RAL 9016	£321.43
12VPH400-R	12VPH400R	1200	400	71	H	N/A	36	2899	849	5.1	28.65	Other Solid Matt RAL	£711.75
12VPH400-T	12VPH400T	1200	400	71	H	N/A	36	2899	849	5.1	28.65	Metallic Micrograin Matt Paint	£782.92
12VPH400	12VPH400W	1200	400	71	H	N/A	36	2899	849	5.1	28.65	White RAL 9016	£418.67
12VPH600-R	12VPH600R	1200	600	71	H	N/A	36	4142	1213	7	41.11	Other Solid Matt RAL	£876.90
12VPH600-T	12VPH600T	1200	600	71	H	N/A	36	4142	1213	7	41.11	Metallic Micrograin Matt Paint	£964.59
12VPH600	12VPH600W	1200	600	71	H	N/A	36	4142	1213	7	41.11	White RAL 9016	£515.82
12VPH700-R	12VPH700R	1200	700	71	H	N/A	36	4518	1323	7.7	46.58	Other Solid Matt RAL	£1,022.09
12VPH700-T	12VPH700T	1200	700	71	H	N/A	36	4518	1323	7.7	46.58	Metallic Micrograin Matt Paint	£1,124.30
12VPH700	12VPH700W	1200	700	71	H	N/A	36	4518	1323	7.7	46.58	White RAL 9016	£601.23
12VPH900-R	12VPH900R	1200	900	71	H	N/A	36	5809	1701	9.2	59.49	Other Solid Matt RAL	£1,276.58
12VPH900-T	12VPH900T	1200	900	71	H	N/A	36	5809	1701	9.2	59.49	Metallic Micrograin Matt Paint	£1,404.23
12VPH900	12VPH900W	1200	900	71	H	N/A	36	5809	1701	9.2	59.49	White RAL 9016	£750.93
12VPS200-R	12VPS200R	1200	200	52	H	N/A	36	1748	512	1.2	9.26	Other Solid Matt RAL	£400.04
12VPS200-T	12VPS200T	1200	200	52	H	N/A	36	778	228	1.2	9.26	Metallic Micrograin Matt Paint	£440.05
12VPS200	12VPS200W	1200	200	52	H	N/A	36	778	228	1.2	9.26	White RAL 9016	£235.32
12VPS400-R	12VPS400R	1200	400	52	H	N/A	36	1662	487	3.3	20.61	Other Solid Matt RAL	£564.80
12VPS400-T	12VPS400T	1200	400	52	H	N/A	36	1662	487	3.3	20.61	Metallic Micrograin Matt Paint	£621.27
12VPS400	12VPS400W	1200	400	52	H	N/A	36	1662	487	3.3	20.61	White RAL 9016	£332.23
12VPS600-R	12VPS600R	1200	600	52	H	N/A	36	2284	669	3.6	28.82	Other Solid Matt RAL	£681.89
12VPS600-T	12VPS600T	1200	600	52	H	N/A	36	2284	669	3.6	28.82	Metallic Micrograin Matt Paint	£750.07
12VPS600	12VPS600W	1200	600	52	H	N/A	36	2284	669	3.6	28.82	White RAL 9016	£401.11
12VPS700-R	12VPS700R	1200	700	52	H	N/A	36	2592	759	4	32.56	Other Solid Matt RAL	£749.40
12VPS700-T	12VPS700T	1200	700	52	H	N/A	36	2592	759	4	32.56	Metallic Micrograin Matt Paint	£824.34
12VPS700	12VPS700W	1200	700	52	H	N/A	36	2592	759	4	32.56	White RAL 9016	£440.82
12VPS900-R	12VPS900R	1200	900	52	H	N/A	36	3333	976	4.7	40.93	Other Solid Matt RAL	£944.29
12VPS900-T	12VPS900T	1200	900	52	H	N/A	36	3333	976	4.7	40.93	Metallic Micrograin Matt Paint	£1,038.72
12VPS900	12VPS900W	1200	900	52	H	N/A	36	3333	976	4.7	40.93	White RAL 9016	£555.46
14VPD400-R	14VPD400R	1400	400	104	H	N/A	42	4552	1333	6	36.13	Other Solid Matt RAL	£933.12
14VPD400-T	14VPD400T	1400	400	104	H	N/A	42	4552	1333	6	36.13	Metallic Micrograin Matt Paint	£1,026.43
14VPD400	14VPD400W	1400	400	104	H	N/A	42	4552	1333	6	36.13	White RAL 9016	£548.89
14VPD700-R	14VPD700R	1400	700	104	H	N/A	42	7448	2181	9	59.51	Other Solid Matt RAL	£1,376.30
14VPD700-T	14VPD700T	1400	700	104	H	N/A	42	7448	2181	9	59.51	Metallic Micrograin Matt Paint	£1,513.93
14VPD700	14VPD700W	1400	700	104	H	N/A	42	7448	2181	9	59.51	White RAL 9016	£809.59
14VPD900-R	14VPD900R	1400	900	104	H	N/A	42	9576	2804	10.8	76.42	Other Solid Matt RAL	£1,664.55
14VPD900-T	14VPD900T	1400	900	104	H	N/A	42	9576	2804	10.8	76.42	Metallic Micrograin Matt Paint	£1,831.01
14VPD900	14VPD900W	1400	900	104	H	N/A	42	9576	2804	10.8	76.42	White RAL 9016	£979.15
14VPH200-R	14VPH200R	1400	200	71	H	N/A	42	2022	592	3.3	16.88	Other Solid Matt RAL	£599.22
14VPH200-T	14VPH200T	1400	200	71	H	N/A	42	2022	592	3.3	16.88	Metallic Micrograin Matt Paint	£659.14
14VPH200	14VPH200W	1400	200	71	H	N/A	42	2022	592	3.3	16.88	White RAL 9016	£352.49
14VPH300-R	14VPH300R	1400	300	71	H	N/A	42	2609	764	4.9	25.75	Other Solid Matt RAL	£624.49
14VPH300-T	14VPH300T	1400	300	71	H	N/A	42	2609	764	4.9	25.75	Metallic Micrograin Matt Paint	£686.93
14VPH300	14VPH300W	1400	300	71	H	N/A	42	2609	764	4.9	25.75	White RAL 9016	£367.35
14VPH400-R	14VPH400R	1400	400	71	H	N/A	42	3360	984	6	33.01	Other Solid Matt RAL	£792.09
14VPH400-T	14VPH400T	1400	400	71	H	N/A	42	3360	984	6	33.01	Metallic Micrograin Matt Paint	£871.30
14VPH400	14VPH400W	1400	400	71	H	N/A	42	3360	984	6	33.01	White RAL 9016	£465.94
14VPH700-R	14VPH700R	1400	700	71	H	N/A	42	5498	1610	9	54.01	Other Solid Matt RAL	£1,193.23
14VPH700-T	14VPH700T	1400	700	71	H	N/A	42	5498	1610	9	54.01	Metallic Micrograin Matt Paint	£1,312.55
14VPH700	14VPH700W	1400	700	71	H	N/A	42	5498	1610	9	54.01	White RAL 9016	£701.90
14VPH900-R	14VPH900R	1400	900	71	H	N/A	42	7069	2070	10.8	69.14	Other Solid Matt RAL	£1,432.91
14VPH900-T	14VPH900T	1400	900	71	H	N/A	42	7069	2070	10.8	69.14	Metallic Micrograin Matt Paint	£1,576.20
14VPH900	14VPH900W	1400	900	71	H	N/A	42	7069	2070	10.8	69.14	White RAL 9016	£842.89
14VPS200-R	14VPS200R	1400	200	52	H	N/A	42	2022	592	1.4	10.67	Other Solid Matt RAL	£441.03
14VPS200-T	14VPS200T	1400	200	52	H	N/A	42	898	263	1.4	10.67	Metallic Micrograin Matt Paint	£485.13
14VPS200	14VPS200W	1400	200	52	H	N/A	42	898	263	1.4	10.67	White RAL 9016	£259.43
14VPS300-R	14VPS300R	1400	300	52	H	N/A	42	1567	459	3.6	18.81	Other Solid Matt RAL	£466.08
14VPS300-T	14VPS300T	1400	300	52	H	N/A	42	1567	459	3.6	18.81	Metallic Micrograin Matt Paint	£512.69
14VPS300	14VPS300W	1400	300	52	H	N/A	42	1567	459	3.6	18.81	White RAL 9016	£274.16
14VPS600-R	14VPS600R	1400	600	52	H	N/A	42	2646	775	4.2	33.2	Other Solid Matt RAL	£753.06
14VPS600-T	14VPS600T	1400	600	52	H	N/A	42	2646	775	4.2	33.2	Metallic Micrograin Matt Paint	£828.37
14VPS600	14VPS600W	1400	600	52	H	N/A	42	2646	775	4.2	33.2	White RAL 9016	£442.98
14VPS700-R	14VPS700R	1400	700	52	H	N/A	42	3005	880	4.6	37.58	Other Solid Matt RAL	£823.64
14VPS700-T	14VPS700T	1400	700	52	H	N/A	42	3005	880	4.6	37.58	Metallic Micrograin Matt Paint	£906.01
14VPS700	14VPS700W	1400	700	52	H	N/A	42	3005	880	4.6	37.58	White RAL 9016	£484.50
14VPS900-R	14VPS900R	1400	900	52	H	N/A	42	3862	1131	5.5	47.39	Other Solid Matt RAL	£1,053.32
14VPS900-T	14VPS900T	1400	900	52	H	N/A	42	3862	1131	5.5	47.39	Metallic Micrograin Matt Paint	£1,158.65
14VPS900	14VPS900W	1400	900	52	H	N/A	42	3862	1131	5.5	47.39	White RAL 9016	£619.60
16VPD300-R	16VPD300R	1600	300	104	H	N/A	48	3811	1116	5.6	32.73	Other Solid Matt RAL	£813.49
16VPD300-T	16VPD300T	1600	300	104	H	N/A	48	3811	1116	5.6	32.73	Metallic Micrograin Matt Paint	£894.83
16VPD300	16VPD300W	1600	300	104	H	N/A	48	3811	1116	5.6	32.73	White RAL 9016	£478.52
16VPD400-R	16VPD400R	1600	400	104	H	N/A	48	4856	1422	6.8	41.89	Other Solid Matt RAL	£1,022.29
16VPD400-T	16VPD400T	1600	400	104	H	N/A	48	4856	1422	6.8	41.89	Metallic Micrograin Matt Paint	£1,124.52
16VPD400	16VPD400W	1600	400	104	H	N/A	48	4856	1422	6.8	41.89	White RAL 9016	£601.35
16VPD500-R	16VPD500R	1600	500	104	H	N/A	48	5901	1728	8	50.75	Other Solid Matt RAL	£1,170.19
16VPD500-T	16VPD500T	1600	500	104	H	N/A	48	5901	1728	8	50.75	Metallic Micrograin Matt Paint	£1,287.21
16VPD500	16VPD500W	1600	500	104	H	N/A	48	5901	1728	8	50.75	White RAL 9016	£688.34
16VPD600-R	16VPD600R	1600	600	104	H	N/A	48	6946	2034	9.3	60.46	Other Solid Matt RAL	£1,337.13
16VPD600-T	16VPD600T	1600	600	104	H	N/A	48	6946	2034	9.3	60.46	Metallic Micrograin Matt Paint	£1,470.84
16VPD600	16VPD600W	1600	600	104	H	N/A	48	6946	2034	9.3	60.46	White RAL 9016	£786.55
16VPD700-R	16VPD700R	1600	700	104	H	N/A	48	8104	2373	10.3	68.77	Other Solid Matt RAL	£1,529.09
16VPD700-T	16VPD700T	1600	700	104	H	N/A	48	8104	2373	10.3	68.77	Metallic Micrograin Matt Paint	£1,681.99
16VPD700	16VPD700W	1600	700	104	H	N/A	48	8104	2373	10.3	68.77	White RAL 9016	£899.46
16VPD900-R	16VPD900R	1600	900	104	H	N/A	48	10419	3051	12.3	88.19	Other Solid Matt RAL	£1,891.83
16VPD900-T	16VPD900T	1600	900	104	H	N/A	48	10419	3051	12.3	88.19	Metallic Micrograin Matt Paint	£2,081.01
16VPD900	16VPD900W	1600	900	104	H	N/A	48	10419	3051	12.3	88.19	White RAL 9016	£1,112.84
16VPH200-R	16VPH200R	1600	200	71	H	N/A	48	2315	678	3.7	19.15	Other Solid Matt RAL	£658.41
16VPH200-T	16VPH200T	1600	200	71	H	N/A	48	2315	678	3.7	19.15	Metallic Micrograin Matt Paint	£724.26
16VPH200	16VPH200W	1600	200	71	H	N/A	48	2315	678	3.7	19.15	White RAL 9016	£387.31
16VPH300-R	16VPH300R	1600	300	71	H	N/A	48	2889	846	5.6	29.86	Other Solid Matt RAL	£702.55
16VPH300-T	16VPH300T	1600	300	71	H	N/A	48	2889	846	5.6	29.86	Metallic Micrograin Matt Paint	£772.81
16VPH300	16VPH300W	1600	300	71	H	N/A	48	2889	846	5.6	29.86	White RAL 9016	£413.27
16VPH400-R	16VPH400R	1600	400	71	H	N/A	48	3716	1088	6.8	38.19	Other Solid Matt RAL	£877.03
16VPH400-T	16VPH400T	1600	400	71	H	N/A	48	3716	1088	6.8	38.19	Metallic Micrograin Matt Paint	£964.73
16VPH400	16VPH400W	1600	400	71	H	N/A	48	3716	1088	6.8	38.19	White RAL 9016	£515.90
16VPH500-R	16VPH500R	1600	500	71	H	N/A	48	4518	1323	8	46.01	Other Solid Matt RAL	£976.84
16VPH500-T	16VPH500T	1600	500	71	H	N/A	48	4518	1323	8	46.01	Metallic Micrograin Matt Paint	£1,074.52
16VPH500	16VPH500W	1600	500	71	H	N/A	48	4518	1323	8	46.01	White RAL 9016	£574.61
16VPH600-R	16VPH600R	1600	600	71	H	N/A	48	5307	1554	9.3	54.9	Other Solid Matt RAL	£1,117.70
16VPH600-T	16VPH600T	1600	600	71	H	N/A	48	5307	1554	9.3	54.9	Metallic Micrograin Matt Paint	£1,229.47
16VPH600	16VPH600W	1600	600	71	H	N/A	48	5307	1554	9.3	54.9	White RAL 9016	£657.47
16VPH700-R	16VPH700R	1600	700	71	H	N/A	48	6075	1779	10.3	62.26	Other Solid Matt RAL	£1,350.29
16VPH700-T	16VPH700T	1600	700	71	H	N/A	48	6075	1779	10.3	62.26	Metallic Micrograin Matt Paint	£1,485.32
16VPH700	16VPH700W	1600	700	71	H	N/A	48	6075	1779	10.3	62.26	White RAL 9016	£794.29
16VPH900-R	16VPH900R	1600	900	71	H	N/A	48	7810	2287	12.3	79.59	Other Solid Matt RAL	£1,598.69
16VPH900-T	16VPH900T	1600	900	71	H	N/A	48	7810	2287	12.3	79.59	Metallic Micrograin Matt Paint	£1,758.56
16VPH900	16VPH900W	1600	900	71	H	N/A	48	7810	2287	12.3	79.59	White RAL 9016	£940.40
16VPS200-R	16VPS200R	1600	200	52	H	N/A	48	2315	678	1.6	12.08	Other Solid Matt RAL	£510.90
16VPS200-T	16VPS200T	1600	200	52	H	N/A	48	1020	299	1.6	12.08	Metallic Micrograin Matt Paint	£561.99
16VPS200	16VPS200W	1600	200	52	H	N/A	48	1020	299	1.6	12.08	White RAL 9016	£300.53
16VPS300-R	16VPS300R	1600	300	52	H	N/A	48	1696	497	4.2	21.76	Other Solid Matt RAL	£521.19
16VPS300-T	16VPS300T	1600	300	52	H	N/A	48	1696	497	4.2	21.76	Metallic Micrograin Matt Paint	£573.31
16VPS300	16VPS300W	1600	300	52	H	N/A	48	1696	497	4.2	21.76	White RAL 9016	£306.58
16VPS400-R	16VPS400R	1600	400	52	H	N/A	48	2103	616	4.4	27.22	Other Solid Matt RAL	£686.49
16VPS400-T	16VPS400T	1600	400	52	H	N/A	48	2103	616	4.4	27.22	Metallic Micrograin Matt Paint	£755.13
16VPS400	16VPS400W	1600	400	52	H	N/A	48	2103	616	4.4	27.22	White RAL 9016	£403.81
16VPS500-R	16VPS500R	1600	500	52	H	N/A	48	2521	738	4.6	32.34	Other Solid Matt RAL	£739.14
16VPS500-T	16VPS500T	1600	500	52	H	N/A	48	2521	738	4.6	32.34	Metallic Micrograin Matt Paint	£813.05
16VPS500	16VPS500W	1600	500	52	H	N/A	48	2521	738	4.6	32.34	White RAL 9016	£434.79
16VPS600-R	16VPS600R	1600	600	52	H	N/A	48	2937	860	4.8	38.29	Other Solid Matt RAL	£821.94
16VPS600-T	16VPS600T	1600	600	52	H	N/A	48	2937	860	4.8	38.29	Metallic Micrograin Matt Paint	£904.13
16VPS600	16VPS600W	1600	600	52	H	N/A	48	2937	860	4.8	38.29	White RAL 9016	£483.49
16VPS700-R	16VPS700R	1600	700	52	H	N/A	48	3347	980	5.3	43.33	Other Solid Matt RAL	£916.45
16VPS700-T	16VPS700T	1600	700	52	H	N/A	48	3347	980	5.3	43.33	Metallic Micrograin Matt Paint	£1,008.09
16VPS700	16VPS700W	1600	700	52	H	N/A	48	3347	980	5.3	43.33	White RAL 9016	£539.09
16VPS900-R	16VPS900R	1600	900	52	H	N/A	48	4303	1260	6.2	54.57	Other Solid Matt RAL	£1,164.68
16VPS900-T	16VPS900T	1600	900	52	H	N/A	48	4303	1260	6.2	54.57	Metallic Micrograin Matt Paint	£1,281.14
16VPS900	16VPS900W	1600	900	52	H	N/A	48	4303	1260	6.2	54.57	White RAL 9016	£685.11
18VPD300-R	18VPD300R	1800	300	104	H	N/A	54	3985	1167	6.3	36.43	Other Solid Matt RAL	£876.56
18VPD300-T	18VPD300T	1800	300	104	H	N/A	54	3985	1167	6.3	36.43	Metallic Micrograin Matt Paint	£964.22
18VPD300	18VPD300W	1800	300	104	H	N/A	54	3985	1167	6.3	36.43	White RAL 9016	£515.62
18VPD400-R	18VPD400R	1800	400	104	H	N/A	54	5160	1511	7.7	46.79	Other Solid Matt RAL	£1,035.35
18VPD400-T	18VPD400T	1800	400	104	H	N/A	54	5160	1511	7.7	46.79	Metallic Micrograin Matt Paint	£1,138.89
18VPD400	18VPD400W	1800	400	104	H	N/A	54	5160	1511	7.7	46.79	White RAL 9016	£609.03
18VPD500-R	18VPD500R	1800	500	104	H	N/A	54	6335	1855	9.1	56.39	Other Solid Matt RAL	£1,285.49
18VPD500-T	18VPD500T	1800	500	104	H	N/A	54	6335	1855	9.1	56.39	Metallic Micrograin Matt Paint	£1,414.04
18VPD500	18VPD500W	1800	500	104	H	N/A	54	6335	1855	9.1	56.39	White RAL 9016	£756.17
18VPD600-R	18VPD600R	1800	600	104	H	N/A	54	7503	2197	10.4	67.79	Other Solid Matt RAL	£1,461.64
18VPD600-T	18VPD600T	1800	600	104	H	N/A	54	7503	2197	10.4	67.79	Metallic Micrograin Matt Paint	£1,607.80
18VPD600	18VPD600W	1800	600	104	H	N/A	54	7503	2197	10.4	67.79	White RAL 9016	£859.79
18VPD700-R	18VPD700R	1800	700	104	H	N/A	54	8756	2564	11.6	77.18	Other Solid Matt RAL	£1,733.54
18VPD700-T	18VPD700T	1800	700	104	H	N/A	54	8756	2564	11.6	77.18	Metallic Micrograin Matt Paint	£1,906.89
18VPD700	18VPD700W	1800	700	104	H	N/A	54	8756	2564	11.6	77.18	White RAL 9016	£1,019.73
18VPD900-R	18VPD900R	1800	900	104	H	N/A	54	11256	3296	13.9	99.15	Other Solid Matt RAL	£2,144.39
18VPD900-T	18VPD900T	1800	900	104	H	N/A	54	11256	3296	13.9	99.15	Metallic Micrograin Matt Paint	£2,358.83
18VPD900	18VPD900W	1800	900	104	H	N/A	54	11256	3296	13.9	99.15	White RAL 9016	£1,261.40
18VPH200-R	18VPH200R	1800	200	71	H	N/A	54	2599	761	4.2	21.48	Other Solid Matt RAL	£696.33
18VPH200-T	18VPH200T	1800	200	71	H	N/A	54	2599	761	4.2	21.48	Metallic Micrograin Matt Paint	£765.96
18VPH200	18VPH200W	1800	200	71	H	N/A	54	2599	761	4.2	21.48	White RAL 9016	£409.61
18VPH300-R	18VPH300R	1800	300	71	H	N/A	54	3149	922	6.3	33.17	Other Solid Matt RAL	£748.48
18VPH300-T	18VPH300T	1800	300	71	H	N/A	54	3149	922	6.3	33.17	Metallic Micrograin Matt Paint	£823.33
18VPH300	18VPH300W	1800	300	71	H	N/A	54	3149	922	6.3	33.17	White RAL 9016	£440.28
18VPH400-R	18VPH400R	1800	400	71	H	N/A	54	4054	1187	7.7	42.57	Other Solid Matt RAL	£975.78
18VPH400-T	18VPH400T	1800	400	71	H	N/A	54	4054	1187	7.7	42.57	Metallic Micrograin Matt Paint	£1,073.36
18VPH400	18VPH400W	1800	400	71	H	N/A	54	4054	1187	7.7	42.57	White RAL 9016	£573.99
18VPH500-R	18VPH500R	1800	500	71	H	N/A	54	4935	1445	9.1	50.99	Other Solid Matt RAL	£1,072.25
18VPH500-T	18VPH500T	1800	500	71	H	N/A	54	4935	1445	9.1	50.99	Metallic Micrograin Matt Paint	£1,179.48
18VPH500	18VPH500W	1800	500	71	H	N/A	54	4935	1445	9.1	50.99	White RAL 9016	£630.74
18VPH600-R	18VPH600R	1800	600	71	H	N/A	54	5795	1697	10.4	61.42	Other Solid Matt RAL	£1,201.78
18VPH600-T	18VPH600T	1800	600	71	H	N/A	54	5795	1697	10.4	61.42	Metallic Micrograin Matt Paint	£1,321.95
18VPH600	18VPH600W	1800	600	71	H	N/A	54	5795	1697	10.4	61.42	White RAL 9016	£706.93
18VPH700-R	18VPH700R	1800	700	71	H	N/A	54	6632	1942	11.6	69.73	Other Solid Matt RAL	£1,509.69
18VPH700-T	18VPH700T	1800	700	71	H	N/A	54	6632	1942	11.6	69.73	Metallic Micrograin Matt Paint	£1,660.67
18VPH700	18VPH700W	1800	700	71	H	N/A	54	6632	1942	11.6	69.73	White RAL 9016	£888.05
18VPH900-R	18VPH900R	1800	900	71	H	N/A	54	8527	2497	13.9	89.28	Other Solid Matt RAL	£1,762.09
18VPH900-T	18VPH900T	1800	900	71	H	N/A	54	8527	2497	13.9	89.28	Metallic Micrograin Matt Paint	£1,938.30
18VPH900	18VPH900W	1800	900	71	H	N/A	54	8527	2497	13.9	89.28	White RAL 9016	£1,036.52
18VPS200-R	18VPS200R	1800	200	52	H	N/A	54	2599	761	1.8	13.48	Other Solid Matt RAL	£537.40
18VPS200-T	18VPS200T	1800	200	52	H	N/A	54	1150	337	1.8	13.48	Metallic Micrograin Matt Paint	£591.15
18VPS200	18VPS200W	1800	200	52	H	N/A	54	1150	337	1.8	13.48	White RAL 9016	£316.12
18VPS300-R	18VPS300R	1800	300	52	H	N/A	54	1822	533	4.7	24.09	Other Solid Matt RAL	£553.34
18VPS300-T	18VPS300T	1800	300	52	H	N/A	54	1822	533	4.7	24.09	Metallic Micrograin Matt Paint	£608.67
18VPS300	18VPS300W	1800	300	52	H	N/A	54	1822	533	4.7	24.09	White RAL 9016	£325.50
18VPS400-R	18VPS400R	1800	400	52	H	N/A	54	2287	670	4.9	30.24	Other Solid Matt RAL	£730.11
18VPS400-T	18VPS400T	1800	400	52	H	N/A	54	2287	670	4.9	30.24	Metallic Micrograin Matt Paint	£803.12
18VPS400	18VPS400W	1800	400	52	H	N/A	54	2287	670	4.9	30.24	White RAL 9016	£429.48
18VPS500-R	18VPS500R	1800	500	52	H	N/A	54	2754	806	5.2	35.65	Other Solid Matt RAL	£803.56
18VPS500-T	18VPS500T	1800	500	52	H	N/A	54	2754	806	5.2	35.65	Metallic Micrograin Matt Paint	£883.92
18VPS500	18VPS500W	1800	500	52	H	N/A	54	2754	806	5.2	35.65	White RAL 9016	£472.68
18VPS600-R	18VPS600R	1800	600	52	H	N/A	54	3220	943	5.4	42.81	Other Solid Matt RAL	£900.00
18VPS600-T	18VPS600T	1800	600	52	H	N/A	54	3220	943	5.4	42.81	Metallic Micrograin Matt Paint	£990.00
18VPS600	18VPS600W	1800	600	52	H	N/A	54	3220	943	5.4	42.81	White RAL 9016	£529.41
18VPS700-R	18VPS700R	1800	700	52	H	N/A	54	3681	1078	5.9	48.51	Other Solid Matt RAL	£1,002.29
18VPS700-T	18VPS700T	1800	700	52	H	N/A	54	3681	1078	5.9	48.51	Metallic Micrograin Matt Paint	£1,102.51
18VPS700	18VPS700W	1800	700	52	H	N/A	54	3681	1078	5.9	48.51	White RAL 9016	£589.58
18VPS900-R	18VPS900R	1800	900	52	H	N/A	54	4733	1386	7	61.21	Other Solid Matt RAL	£1,273.73
18VPS900-T	18VPS900T	1800	900	52	H	N/A	54	4733	1386	7	61.21	Metallic Micrograin Matt Paint	£1,401.11
18VPS900	18VPS900W	1800	900	52	H	N/A	54	4733	1386	7	61.21	White RAL 9016	£749.26
20VPD300-R	20VPD300R	2000	300	104	H	N/A	60	4299	1259	7	40.06	Other Solid Matt RAL	£976.61
20VPD300-T	20VPD300T	2000	300	104	H	N/A	60	4299	1259	7	40.06	Metallic Micrograin Matt Paint	£1,074.27
20VPD300	20VPD300W	2000	300	104	H	N/A	60	4299	1259	7	40.06	White RAL 9016	£574.48
20VPD400-R	20VPD400R	2000	400	104	H	N/A	60	5560	1628	8.5	51.63	Other Solid Matt RAL	£1,187.59
20VPD400-T	20VPD400T	2000	400	104	H	N/A	60	5560	1628	8.5	51.63	Metallic Micrograin Matt Paint	£1,306.34
20VPD400	20VPD400W	2000	400	104	H	N/A	60	5560	1628	8.5	51.63	White RAL 9016	£698.58
20VPD500-R	20VPD500R	2000	500	104	H	N/A	60	6827	1999	10.1	62.43	Other Solid Matt RAL	£1,398.58
20VPD500-T	20VPD500T	2000	500	104	H	N/A	60	6827	1999	10.1	62.43	Metallic Micrograin Matt Paint	£1,538.43
20VPD500	20VPD500W	2000	500	104	H	N/A	60	6827	1999	10.1	62.43	White RAL 9016	£822.69
20VPD600-R	20VPD600R	2000	600	104	H	N/A	60	8094	2370	11.6	75.02	Other Solid Matt RAL	£1,605.21
20VPD600-T	20VPD600T	2000	600	104	H	N/A	60	8094	2370	11.6	75.02	Metallic Micrograin Matt Paint	£1,765.73
20VPD600	20VPD600W	2000	600	104	H	N/A	60	8094	2370	11.6	75.02	White RAL 9016	£944.24
20VPD700-R	20VPD700R	2000	700	104	H	N/A	60	9442	2765	12.9	85.5	Other Solid Matt RAL	£1,907.68
20VPD700-T	20VPD700T	2000	700	104	H	N/A	60	9442	2765	12.9	85.5	Metallic Micrograin Matt Paint	£2,098.45
20VPD700	20VPD700W	2000	700	104	H	N/A	60	9442	2765	12.9	85.5	White RAL 9016	£1,122.17
20VPH200-R	20VPH200R	2000	200	71	H	N/A	60	2889	846	4.7	23.91	Other Solid Matt RAL	£772.11
20VPH200-T	20VPH200T	2000	200	71	H	N/A	60	2889	846	4.7	23.91	Metallic Micrograin Matt Paint	£849.33
20VPH200	20VPH200W	2000	200	71	H	N/A	60	2889	846	4.7	23.91	White RAL 9016	£454.19
20VPH300-R	20VPH300R	2000	300	71	H	N/A	60	3401	996	7	36.42	Other Solid Matt RAL	£858.67
20VPH300-T	20VPH300T	2000	300	71	H	N/A	60	3401	996	7	36.42	Metallic Micrograin Matt Paint	£944.53
20VPH300	20VPH300W	2000	300	71	H	N/A	60	3401	996	7	36.42	White RAL 9016	£505.10
20VPH400-R	20VPH400R	2000	400	71	H	N/A	60	4381	1283	8.5	46.87	Other Solid Matt RAL	£1,042.34
20VPH400-T	20VPH400T	2000	400	71	H	N/A	60	4381	1283	8.5	46.87	Metallic Micrograin Matt Paint	£1,146.57
20VPH400	20VPH400W	2000	400	71	H	N/A	60	4381	1283	8.5	46.87	White RAL 9016	£613.14
20VPH500-R	20VPH500R	2000	500	71	H	N/A	60	5331	1561	10.1	56.35	Other Solid Matt RAL	£1,179.05
20VPH500-T	20VPH500T	2000	500	71	H	N/A	60	5331	1561	10.1	56.35	Metallic Micrograin Matt Paint	£1,296.96
20VPH500	20VPH500W	2000	500	71	H	N/A	60	5331	1561	10.1	56.35	White RAL 9016	£693.56
20VPH600-R	20VPH600R	2000	600	71	H	N/A	60	6261	1833	11.6	67.84	Other Solid Matt RAL	£1,310.82
20VPH600-T	20VPH600T	2000	600	71	H	N/A	60	6261	1833	11.6	67.84	Metallic Micrograin Matt Paint	£1,441.90
20VPH600	20VPH600W	2000	600	71	H	N/A	60	6261	1833	11.6	67.84	White RAL 9016	£771.07
20VPH700-R	20VPH700R	2000	700	71	H	N/A	60	7168	2099	12.9	77.09	Other Solid Matt RAL	£1,643.32
20VPH700-T	20VPH700T	2000	700	71	H	N/A	60	7168	2099	12.9	77.09	Metallic Micrograin Matt Paint	£1,807.65
20VPH700	20VPH700W	2000	700	71	H	N/A	60	7168	2099	12.9	77.09	White RAL 9016	£966.66
20VPH900-R	20VPH900R	2000	900	71	H	N/A	60	9217	2699	15.4	98.84	Other Solid Matt RAL	£1,927.90
20VPH900-T	20VPH900T	2000	900	71	H	N/A	60	9217	2699	15.4	98.84	Metallic Micrograin Matt Paint	£2,120.69
20VPH900	20VPH900W	2000	900	71	H	N/A	60	9217	2699	15.4	98.84	White RAL 9016	£1,134.06
20VPS200-R	20VPS200R	2000	200	52	H	N/A	60	2889	846	2	14.97	Other Solid Matt RAL	£588.02
20VPS200-T	20VPS200T	2000	200	52	H	N/A	60	1277	374	2	14.97	Metallic Micrograin Matt Paint	£646.81
20VPS200	20VPS200W	2000	200	52	H	N/A	60	1277	374	2	14.97	White RAL 9016	£345.90
20VPS300-R	20VPS300R	2000	300	52	H	N/A	60	1965	575	5.2	26.32	Other Solid Matt RAL	£603.84
20VPS300-T	20VPS300T	2000	300	52	H	N/A	60	1965	575	5.2	26.32	Metallic Micrograin Matt Paint	£664.22
20VPS300	20VPS300W	2000	300	52	H	N/A	60	1965	575	5.2	26.32	White RAL 9016	£355.20
20VPS400-R	20VPS400R	2000	400	52	H	N/A	60	2455	719	5.5	33.18	Other Solid Matt RAL	£794.38
20VPS400-T	20VPS400T	2000	400	52	H	N/A	60	2455	719	5.5	33.18	Metallic Micrograin Matt Paint	£873.82
20VPS400	20VPS400W	2000	400	52	H	N/A	60	2455	719	5.5	33.18	White RAL 9016	£467.28
20VPS500-R	20VPS500R	2000	500	52	H	N/A	60	2951	864	5.7	39.32	Other Solid Matt RAL	£860.76
20VPS500-T	20VPS500T	2000	500	52	H	N/A	60	2951	864	5.7	39.32	Metallic Micrograin Matt Paint	£946.83
20VPS500	20VPS500W	2000	500	52	H	N/A	60	2951	864	5.7	39.32	White RAL 9016	£506.33
20VPS600-R	20VPS600R	2000	600	52	H	N/A	60	3446	1009	6	47.15	Other Solid Matt RAL	£959.69
20VPS600-T	20VPS600T	2000	600	52	H	N/A	60	3446	1009	6	47.15	Metallic Micrograin Matt Paint	£1,055.66
20VPS600	20VPS600W	2000	600	52	H	N/A	60	3446	1009	6	47.15	White RAL 9016	£564.52
20VPS700-R	20VPS700R	2000	700	52	H	N/A	60	3941	1154	6.6	53.47	Other Solid Matt RAL	£1,090.43
20VPS700-T	20VPS700T	2000	700	52	H	N/A	60	3941	1154	6.6	53.47	Metallic Micrograin Matt Paint	£1,199.47
20VPS700	20VPS700W	2000	700	52	H	N/A	60	3941	1154	6.6	53.47	White RAL 9016	£641.43
20VPS900-R	20VPS900R	2000	900	52	H	N/A	60	5068	1484	7.8	67.62	Other Solid Matt RAL	£1,382.76
20VPS900-T	20VPS900T	2000	900	52	H	N/A	60	5068	1484	7.8	67.62	Metallic Micrograin Matt Paint	£1,521.03
20VPS900	20VPS900W	2000	900	52	H	N/A	60	5068	1484	7.8	67.62	White RAL 9016	£813.39

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.

Search products

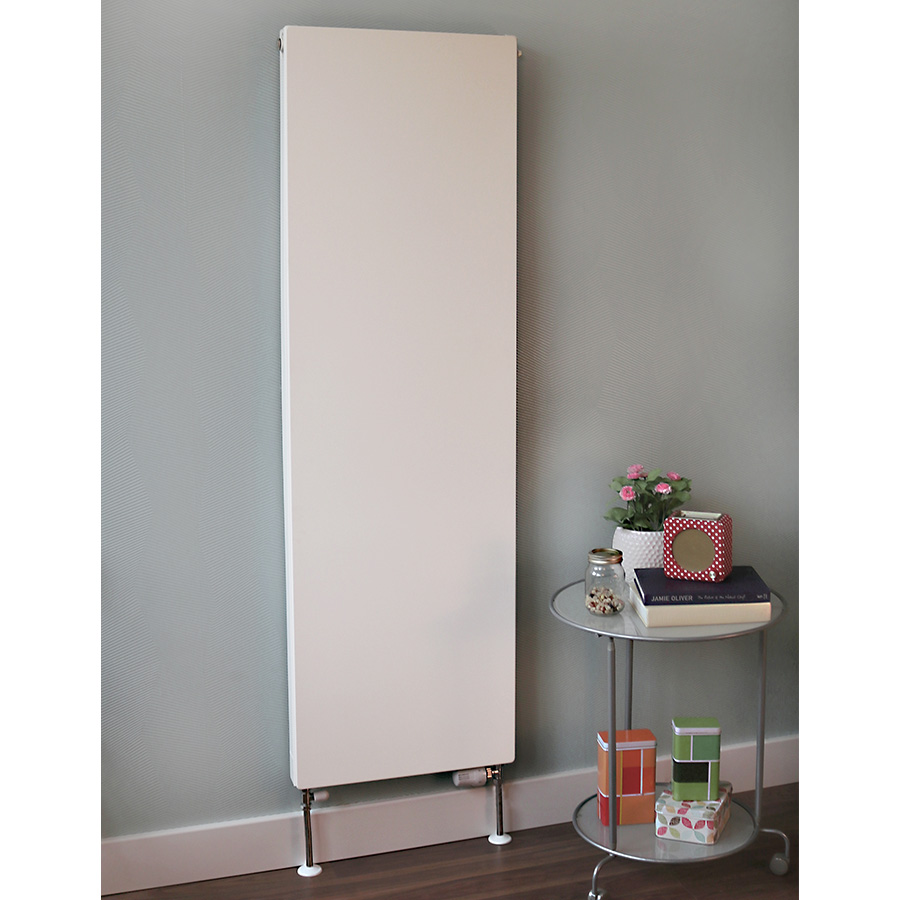

Planal Vertical

Description

The Range

Download or request an Ultraheat Premier Range catalogue

Planal Vertical

Description

Related products

Buckingham

Eco Rail Electric

Bombe

6 Column

The Range
