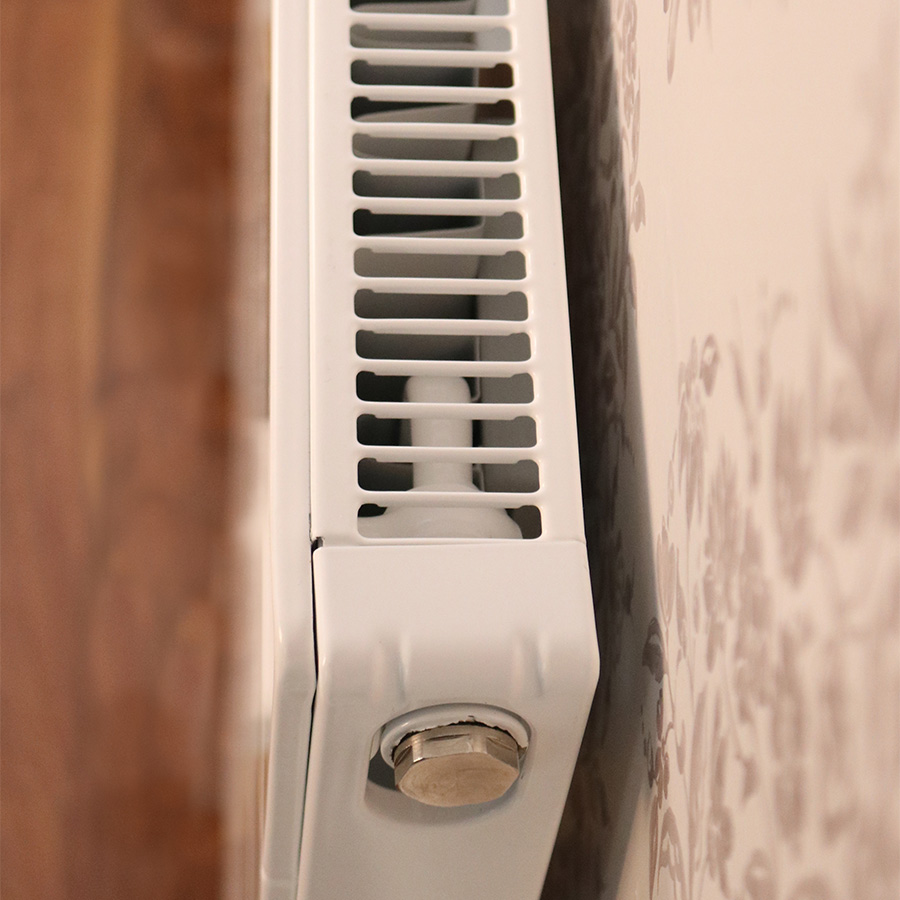

MODEL SHOWN: 6LSS800 (White RAL 9016)

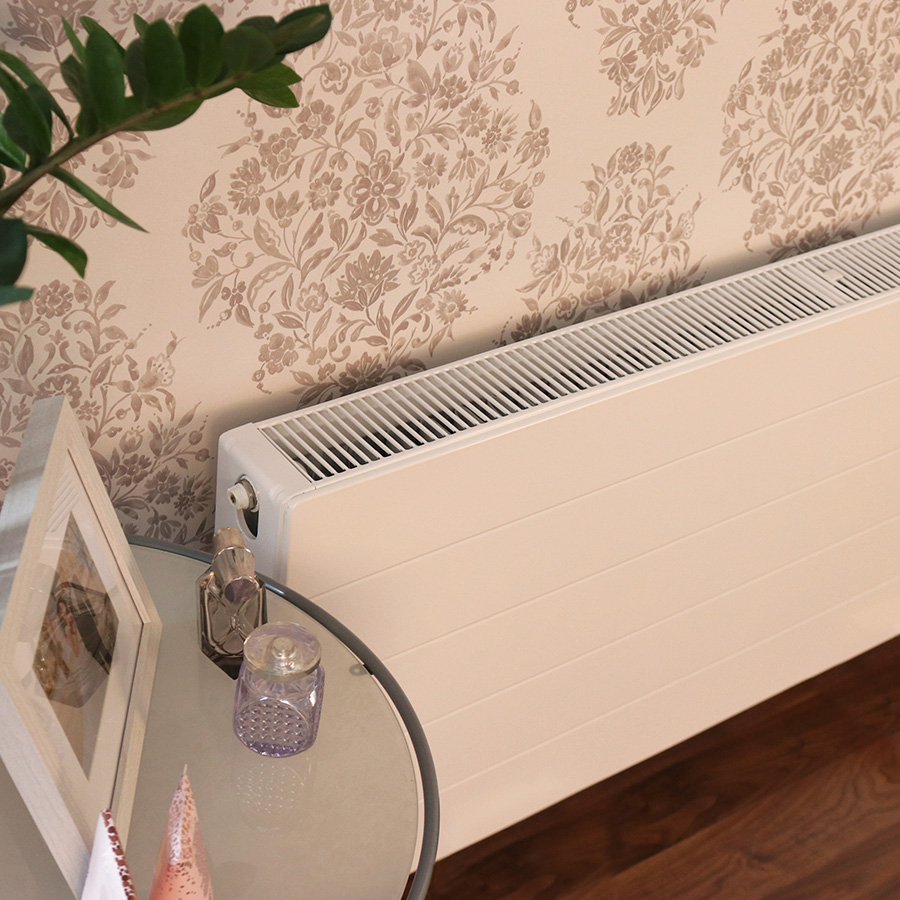

MODEL SHOWN: 5LDS1200 (White RAL 9016)

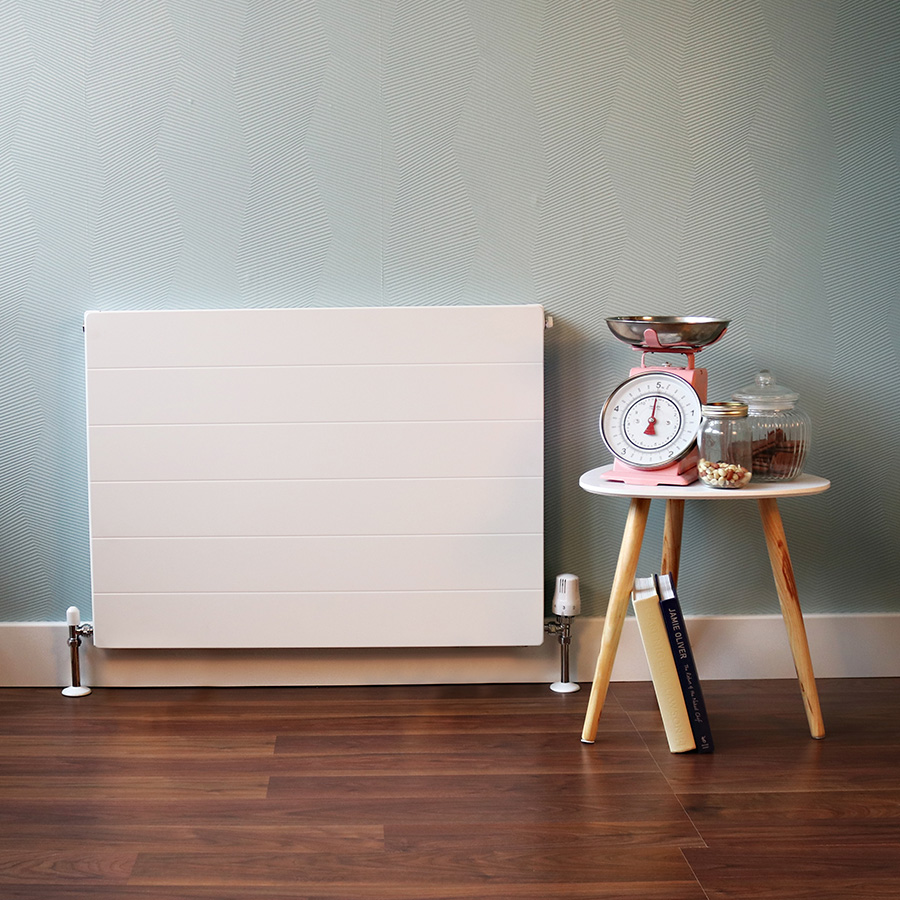

MODEL SHOWN: 6LSS800 (White RAL 9016)

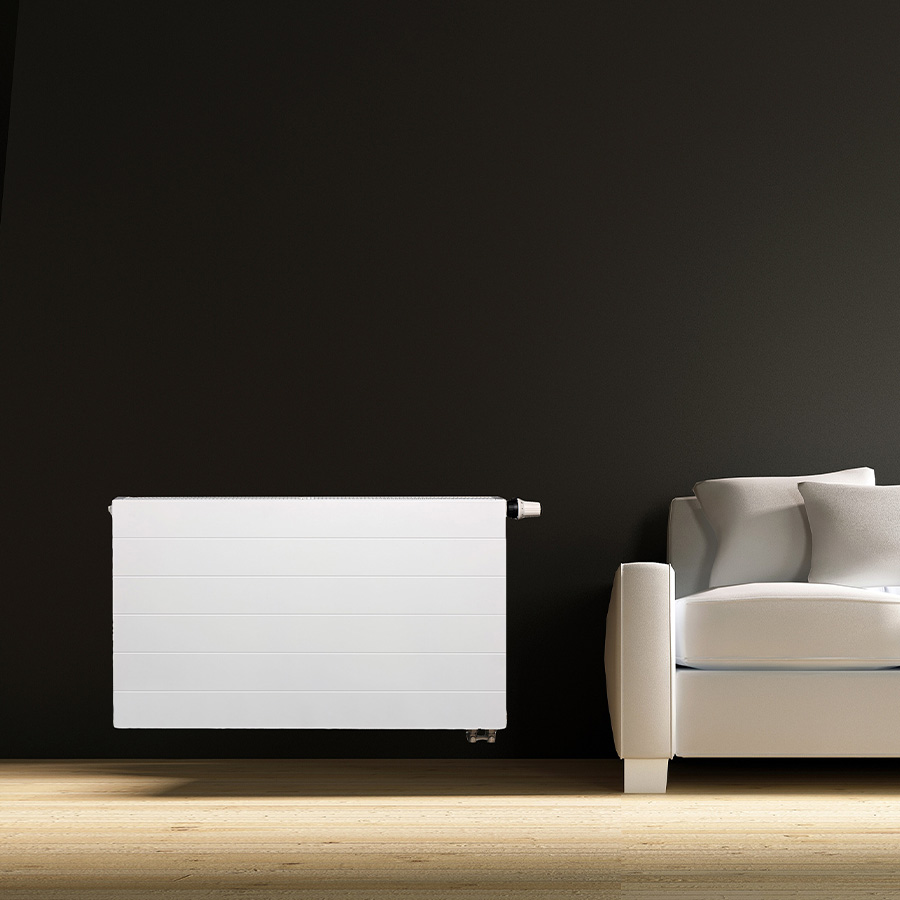

MODEL SHOWN: 6LSS1200 (White RAL 9016)

Lanner Horizontal

The Lanner radiators are powerful and reliable with a durable body that provides excellent quality. They are easy to install and come in a horizontal and vertical design.

The details:
• 5-Year Warranty
• Available in 221 size options
• High-quality white powder coat finish (White RAL 9016)
• We recommend pipework is not installed until receipt of radiator
• Please allow up to 10 weeks for delivery for made to order models
• All prices are exclusive of VAT and delivery

SKU: Lanner Horizontal Categories: Lanner Horizontal, Panel, Range Where to buy

The Range

Max Working Pressure 10 Bars

95 DEGREES MAX WORKING TEMP.

Closed System

MILD STEEL

VERTICAL MOUNTING

5 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
	2LTS1000R	200	1000	164	H	N/A	30	2903	850	3.5	17.59	Other Solid Matt RAL	POA
	2LTS1000T	200	1000	164	H	N/A	30	2903	850	3.5	17.59	Metallic Micrograin Matt Paint	POA
	2LTS1000W	200	1000	164	H	N/A	30	2903	850	3.5	17.59	White RAL 9016	POA
	2LTS1400R	200	1400	164	H	N/A	42	4064	1190	4.9	24.93	Other Solid Matt RAL	POA
	2LTS1400T	200	1400	164	H	N/A	42	4064	1190	4.9	24.93	Metallic Micrograin Matt Paint	POA
	2LTS1400W	200	1400	164	H	N/A	42	4064	1190	4.9	24.93	White RAL 9016	POA
	2LTS2000R	200	2000	164	H	N/A	60	5802	1699	7	34.83	Other Solid Matt RAL	POA
	2LTS2000T	200	2000	164	H	N/A	60	5802	1699	7	34.83	Metallic Micrograin Matt Paint	POA
	2LTS2000W	200	2000	164	H	N/A	60	5802	1699	7	34.83	White RAL 9016	POA
	2LTS2400R	200	2400	164	H	N/A	72	6963	2039	8.4	41.33	Other Solid Matt RAL	POA
	2LTS2400T	200	2400	164	H	N/A	72	6963	2039	8.4	41.33	Metallic Micrograin Matt Paint	POA
	2LTS2400W	200	2400	164	H	N/A	72	6963	2039	8.4	41.33	White RAL 9016	POA
	2LTS600R	200	600	164	H	N/A	18	1738	509	2.1	11.99	Other Solid Matt RAL	POA
	2LTS600T	200	600	164	H	N/A	18	1738	509	2.1	11.99	Metallic Micrograin Matt Paint	POA
	2LTS600W	200	600	164	H	N/A	18	1738	509	2.1	11.99	White RAL 9016	POA
	2LTS800R	200	800	164	H	N/A	24	2322	680	2.8	15.2	Other Solid Matt RAL	POA
	2LTS800T	200	800	164	H	N/A	24	2322	680	2.8	15.2	Metallic Micrograin Matt Paint	POA
	2LTS800W	200	800	164	H	N/A	24	2322	680	2.8	15.2	White RAL 9016	POA
3LDS1000-R	3LDS1000R	300	1000	104	H	N/A	30	3450	1010	3.5	19.4	Other Solid Matt RAL	£400.43
3LDS1000-T	3LDS1000T	300	1000	104	H	N/A	30	3450	1010	3.5	19.4	Metallic Micrograin Matt Paint	£440.47
3LDS1000	3LDS1000W	300	1000	104	H	N/A	30	3450	1010	3.5	19.4	White RAL 9016	£235.54
3LDS1200-R	3LDS1200R	300	1200	104	H	N/A	36	4140	1212	4.2	22.88	Other Solid Matt RAL	£470.82
3LDS1200-T	3LDS1200T	300	1200	104	H	N/A	36	4140	1212	4.2	22.88	Metallic Micrograin Matt Paint	£517.90
3LDS1200	3LDS1200W	300	1200	104	H	N/A	36	4140	1212	4.2	22.88	White RAL 9016	£276.96
3LDS1400-R	3LDS1400R	300	1400	104	H	N/A	42	4830	1414	4.9	26.35	Other Solid Matt RAL	£541.89
3LDS1400-T	3LDS1400T	300	1400	104	H	N/A	42	4830	1414	4.9	26.35	Metallic Micrograin Matt Paint	£596.07
3LDS1400	3LDS1400W	300	1400	104	H	N/A	42	4830	1414	4.9	26.35	White RAL 9016	£318.76
3LDS1800-R	3LDS1800R	300	1800	104	H	N/A	54	6210	1818	7	33.56	Other Solid Matt RAL	£680.41
3LDS1800-T	3LDS1800T	300	1800	104	H	N/A	54	6210	1818	7	33.56	Metallic Micrograin Matt Paint	£748.45
3LDS1800	3LDS1800W	300	1800	104	H	N/A	54	6210	1818	7	33.56	White RAL 9016	£400.24
3LDS2000-R	3LDS2000R	300	2000	104	H	N/A	60	6900	2020	7	37.02	Other Solid Matt RAL	£753.15
3LDS2000-T	3LDS2000T	300	2000	104	H	N/A	60	6900	2020	7	37.02	Metallic Micrograin Matt Paint	£828.46
3LDS2000	3LDS2000W	300	2000	104	H	N/A	60	6900	2020	7	37.02	White RAL 9016	£443.03
	3LDS500R	300	500	104	H	N/A	15	1725	505	1.8	10.63	Other Solid Matt RAL	POA
	3LDS500T	300	500	104	H	N/A	15	1725	505	1.8	10.63	Metallic Micrograin Matt Paint	POA
	3LDS500W	300	500	104	H	N/A	15	1725	505	1.8	10.63	White RAL 9016	POA
	3LDS800R	300	800	104	H	N/A	24	2760	808	2.8	15.85	Other Solid Matt RAL	POA
	3LDS800T	300	800	104	H	N/A	24	2760	808	2.8	15.85	Metallic Micrograin Matt Paint	POA
	3LDS800W	300	800	104	H	N/A	24	2760	808	2.8	15.85	White RAL 9016	POA
	3LSS1000R	300	1000	52	H	N/A	30	1774	519	2.6	12.31	Other Solid Matt RAL	POA
	3LSS1000T	300	1000	52	H	N/A	30	1774	519	2.6	12.31	Metallic Micrograin Matt Paint	POA
	3LSS1000W	300	1000	52	H	N/A	30	1774	519	2.6	12.31	White RAL 9016	POA
	3LSS1200R	300	1200	52	H	N/A	36	2129	623	3.1	14.43	Other Solid Matt RAL	POA
	3LSS1200T	300	1200	52	H	N/A	36	2129	623	3.1	14.43	Metallic Micrograin Matt Paint	POA
	3LSS1200W	300	1200	52	H	N/A	36	2129	623	3.1	14.43	White RAL 9016	POA
	3LSS1400R	300	1400	52	H	N/A	42	2484	727	3.6	16.54	Other Solid Matt RAL	POA
	3LSS1400T	300	1400	52	H	N/A	42	2484	727	3.6	16.54	Metallic Micrograin Matt Paint	POA
	3LSS1400W	300	1400	52	H	N/A	42	2484	727	3.6	16.54	White RAL 9016	POA
	3LSS2000R	300	2000	52	H	N/A	60	3548	1039	5.2	23.08	Other Solid Matt RAL	POA
	3LSS2000T	300	2000	52	H	N/A	60	3548	1039	5.2	23.08	Metallic Micrograin Matt Paint	POA
	3LSS2000W	300	2000	52	H	N/A	60	3548	1039	5.2	23.08	White RAL 9016	POA
	3LSS500R	300	500	52	H	N/A	15	888	260	1.3	7.01	Other Solid Matt RAL	POA
	3LSS500T	300	500	52	H	N/A	15	888	260	1.3	7.01	Metallic Micrograin Matt Paint	POA
	3LSS500W	300	500	52	H	N/A	15	888	260	1.3	7.01	White RAL 9016	POA
	3LSS800R	300	800	52	H	N/A	24	1419	415	2.1	10.18	Other Solid Matt RAL	POA
	3LSS800T	300	800	52	H	N/A	24	1419	415	2.1	10.18	Metallic Micrograin Matt Paint	POA
	3LSS800W	300	800	52	H	N/A	24	1419	415	2.1	10.18	White RAL 9016	POA
	3LTS1000R	300	1000	164	H	N/A	30	4221	1236	5.2	27.04	Other Solid Matt RAL	POA
	3LTS1000T	300	1000	164	H	N/A	30	4221	1236	5.2	27.04	Metallic Micrograin Matt Paint	POA
	3LTS1000W	300	1000	164	H	N/A	30	4221	1236	5.2	27.04	White RAL 9016	POA
	3LTS1200R	300	1200	164	H	N/A	36	5064	1483	6.2	31.95	Other Solid Matt RAL	POA
	3LTS1200T	300	1200	164	H	N/A	36	5064	1483	6.2	31.95	Metallic Micrograin Matt Paint	POA
	3LTS1200W	300	1200	164	H	N/A	36	5064	1483	6.2	31.95	White RAL 9016	POA
	3LTS1400R	300	1400	164	H	N/A	42	5908	1730	7.3	36.85	Other Solid Matt RAL	POA
	3LTS1400T	300	1400	164	H	N/A	42	5908	1730	7.3	36.85	Metallic Micrograin Matt Paint	POA
	3LTS1400W	300	1400	164	H	N/A	42	5908	1730	7.3	36.85	White RAL 9016	POA
	3LTS1600R	300	1600	164	H	N/A	48	6758	1979	8.3	41.83	Other Solid Matt RAL	POA
	3LTS1600T	300	1600	164	H	N/A	48	6758	1979	8.3	41.83	Metallic Micrograin Matt Paint	POA
	3LTS1600W	300	1600	164	H	N/A	48	6758	1979	8.3	41.83	White RAL 9016	POA
	3LTS1800R	300	1800	164	H	N/A	54	7595	2224	9.4	46.91	Other Solid Matt RAL	POA
	3LTS1800T	300	1800	164	H	N/A	54	7595	2224	9.4	46.91	Metallic Micrograin Matt Paint	POA
	3LTS1800W	300	1800	164	H	N/A	54	7595	2224	9.4	46.91	White RAL 9016	POA
	3LTS2000R	300	2000	164	H	N/A	60	8442	2472	10.4	51.8	Other Solid Matt RAL	POA
	3LTS2000T	300	2000	164	H	N/A	60	8442	2472	10.4	51.8	Metallic Micrograin Matt Paint	POA
	3LTS2000W	300	2000	164	H	N/A	60	8442	2472	10.4	51.8	White RAL 9016	POA
	3LTS500R	300	500	164	H	N/A	15	2104	616	2.6	14.82	Other Solid Matt RAL	POA
	3LTS500T	300	500	164	H	N/A	15	2104	616	2.6	14.82	Metallic Micrograin Matt Paint	POA
	3LTS500W	300	500	164	H	N/A	15	2104	616	2.6	14.82	White RAL 9016	POA
	3LTS600R	300	600	164	H	N/A	18	2534	742	3.1	17.16	Other Solid Matt RAL	POA
	3LTS600T	300	600	164	H	N/A	18	2534	742	3.1	17.16	Metallic Micrograin Matt Paint	POA
	3LTS600W	300	600	164	H	N/A	18	2534	742	3.1	17.16	White RAL 9016	POA
	3LTS800R	300	800	164	H	N/A	24	3374	988	4.2	22.06	Other Solid Matt RAL	POA
	3LTS800T	300	800	164	H	N/A	24	3374	988	4.2	22.06	Metallic Micrograin Matt Paint	POA
	3LTS800W	300	800	164	H	N/A	24	3374	988	4.2	22.06	White RAL 9016	POA
4LDS1000-R	4LDS1000R	400	1000	104	H	N/A	30	4417	1293	4.3	25.55	Other Solid Matt RAL	£500.77
4LDS1000-T	4LDS1000T	400	1000	104	H	N/A	30	4417	1293	4.3	25.55	Metallic Micrograin Matt Paint	£550.85
4LDS1000	4LDS1000W	400	1000	104	H	N/A	30	4417	1293	4.3	25.55	White RAL 9016	£294.57
4LDS1100-R	4LDS1100R	400	1100	104	H	N/A	33	4859	1422	4.7	27.88	Other Solid Matt RAL	£545.69
4LDS1100-T	4LDS1100T	400	1100	104	H	N/A	33	4859	1422	4.7	27.88	Metallic Micrograin Matt Paint	£600.26
4LDS1100	4LDS1100W	400	1100	104	H	N/A	33	4859	1422	4.7	27.88	White RAL 9016	£320.99
4LDS1200-R	4LDS1200R	400	1200	104	H	N/A	36	5300	1552	5.1	30.22	Other Solid Matt RAL	£591.65
4LDS1200-T	4LDS1200T	400	1200	104	H	N/A	36	5300	1552	5.1	30.22	Metallic Micrograin Matt Paint	£650.82
4LDS1200	4LDS1200W	400	1200	104	H	N/A	36	5300	1552	5.1	30.22	White RAL 9016	£348.03
4LDS1400-R	4LDS1400R	400	1400	104	H	N/A	42	6184	1810	6	34.89	Other Solid Matt RAL	£694.34
4LDS1400-T	4LDS1400T	400	1400	104	H	N/A	42	6184	1810	6	34.89	Metallic Micrograin Matt Paint	£763.77
4LDS1400	4LDS1400W	400	1400	104	H	N/A	42	6184	1810	6	34.89	White RAL 9016	£408.44
	4LDS1600R	400	1600	104	H	N/A	48	7067	2069	6.8	39.64	Other Solid Matt RAL	POA
	4LDS1600T	400	1600	104	H	N/A	48	7067	2069	6.8	39.64	Metallic Micrograin Matt Paint	POA
	4LDS1600W	400	1600	104	H	N/A	48	7067	2069	6.8	39.64	White RAL 9016	POA
4LDS1800-R	4LDS1800R	400	1800	104	H	N/A	54	7951	2327	7.7	44.53	Other Solid Matt RAL	£858.20
4LDS1800-T	4LDS1800T	400	1800	104	H	N/A	54	7951	2327	7.7	44.53	Metallic Micrograin Matt Paint	£944.02
4LDS1800	4LDS1800W	400	1800	104	H	N/A	54	7951	2327	7.7	44.53	White RAL 9016	£504.83
	4LDS2000R	400	2000	104	H	N/A	60	8834	2586	8.5	49.18	Other Solid Matt RAL	POA
	4LDS2000T	400	2000	104	H	N/A	60	8834	2586	8.5	49.18	Metallic Micrograin Matt Paint	POA
	4LDS2000W	400	2000	104	H	N/A	60	8834	2586	8.5	49.18	White RAL 9016	POA
	4LDS400R	400	400	104	H	N/A	12	1767	517	1.7	11.46	Other Solid Matt RAL	POA
	4LDS400T	400	400	104	H	N/A	12	1767	517	1.7	11.46	Metallic Micrograin Matt Paint	POA
	4LDS400W	400	400	104	H	N/A	12	1767	517	1.7	11.46	White RAL 9016	POA
	4LDS500R	400	500	104	H	N/A	15	2209	647	2.1	13.79	Other Solid Matt RAL	POA
	4LDS500T	400	500	104	H	N/A	15	2209	647	2.1	13.79	Metallic Micrograin Matt Paint	POA
	4LDS500W	400	500	104	H	N/A	15	2209	647	2.1	13.79	White RAL 9016	POA
	4LDS600R	400	600	104	H	N/A	18	2650	776	2.6	16.13	Other Solid Matt RAL	POA
	4LDS600T	400	600	104	H	N/A	18	2650	776	2.6	16.13	Metallic Micrograin Matt Paint	POA
	4LDS600W	400	600	104	H	N/A	18	2650	776	2.6	16.13	White RAL 9016	POA
4LDS700-R	4LDS700R	400	700	104	H	N/A	21	3092	905	3	18.46	Other Solid Matt RAL	£363.93
4LDS700-T	4LDS700T	400	700	104	H	N/A	21	3092	905	3	18.46	Metallic Micrograin Matt Paint	£400.31
4LDS700	4LDS700W	400	700	104	H	N/A	21	3092	905	3	18.46	White RAL 9016	£214.07
	4LDS800R	400	800	104	H	N/A	24	3534	1034	3.4	20.8	Other Solid Matt RAL	POA
	4LDS800T	400	800	104	H	N/A	24	3534	1034	3.4	20.8	Metallic Micrograin Matt Paint	POA
	4LDS800W	400	800	104	H	N/A	24	3534	1034	3.4	20.8	White RAL 9016	POA
	4LDS900R	400	900	104	H	N/A	27	3975	1164	3.8	23.13	Other Solid Matt RAL	POA
	4LDS900T	400	900	104	H	N/A	27	3975	1164	3.8	23.13	Metallic Micrograin Matt Paint	POA
	4LDS900W	400	900	104	H	N/A	27	3975	1164	3.8	23.13	White RAL 9016	POA
4LHS1000-R	4LHS1000R	400	1000	71	H	N/A	30	3427	1003	4.3	22.91	Other Solid Matt RAL	£465.20
4LHS1000-T	4LHS1000T	400	1000	71	H	N/A	30	3427	1003	4.3	22.91	Metallic Micrograin Matt Paint	£511.72
4LHS1000	4LHS1000W	400	1000	71	H	N/A	30	3427	1003	4.3	22.91	White RAL 9016	£273.65
	4LHS1100R	400	1100	71	H	N/A	33	3770	1103	4.7	25.01	Other Solid Matt RAL	POA
	4LHS1100T	400	1100	71	H	N/A	33	3770	1103	4.7	25.01	Metallic Micrograin Matt Paint	POA
	4LHS1100W	400	1100	71	H	N/A	33	3770	1103	4.7	25.01	White RAL 9016	POA
4LHS1200-R	4LHS1200R	400	1200	71	H	N/A	36	4112	1204	5.1	27.12	Other Solid Matt RAL	£549.54
4LHS1200-T	4LHS1200T	400	1200	71	H	N/A	36	4112	1204	5.1	27.12	Metallic Micrograin Matt Paint	£604.49
4LHS1200	4LHS1200W	400	1200	71	H	N/A	36	4112	1204	5.1	27.12	White RAL 9016	£323.26
	4LHS1400R	400	1400	71	H	N/A	42	4798	1404	6	31.32	Other Solid Matt RAL	POA
	4LHS1400T	400	1400	71	H	N/A	42	4798	1404	6	31.32	Metallic Micrograin Matt Paint	POA
	4LHS1400W	400	1400	71	H	N/A	42	4798	1404	6	31.32	White RAL 9016	POA
4LHS1600-R	4LHS1600R	400	1600	71	H	N/A	48	5483	1605	6.8	35.57	Other Solid Matt RAL	£717.41
4LHS1600-T	4LHS1600T	400	1600	71	H	N/A	48	5483	1605	6.8	35.57	Metallic Micrograin Matt Paint	£789.15
4LHS1600	4LHS1600W	400	1600	71	H	N/A	48	5483	1605	6.8	35.57	White RAL 9016	£422.01
	4LHS1800R	400	1800	71	H	N/A	54	6169	1805	7.7	39.99	Other Solid Matt RAL	POA
	4LHS1800T	400	1800	71	H	N/A	54	6169	1805	7.7	39.99	Metallic Micrograin Matt Paint	POA
	4LHS1800W	400	1800	71	H	N/A	54	6169	1805	7.7	39.99	White RAL 9016	POA
	4LHS2000R	400	2000	71	H	N/A	60	6854	2006	8.5	44.17	Other Solid Matt RAL	POA
	4LHS2000T	400	2000	71	H	N/A	60	6854	2006	8.5	44.17	Metallic Micrograin Matt Paint	POA
	4LHS2000W	400	2000	71	H	N/A	60	6854	2006	8.5	44.17	White RAL 9016	POA
	4LHS400R	400	400	71	H	N/A	12	1370	401	1.7	10.26	Other Solid Matt RAL	POA
	4LHS400T	400	400	71	H	N/A	12	1370	401	1.7	10.26	Metallic Micrograin Matt Paint	POA
	4LHS400W	400	400	71	H	N/A	12	1370	401	1.7	10.26	White RAL 9016	POA
	4LHS500R	400	500	71	H	N/A	15	1714	502	2.1	12.36	Other Solid Matt RAL	POA
	4LHS500T	400	500	71	H	N/A	15	1714	502	2.1	12.36	Metallic Micrograin Matt Paint	POA
	4LHS500W	400	500	71	H	N/A	15	1714	502	2.1	12.36	White RAL 9016	POA
	4LHS600R	400	600	71	H	N/A	18	2056	602	2.6	14.46	Other Solid Matt RAL	POA
	4LHS600T	400	600	71	H	N/A	18	2056	602	2.6	14.46	Metallic Micrograin Matt Paint	POA
	4LHS600W	400	600	71	H	N/A	18	2056	602	2.6	14.46	White RAL 9016	POA
	4LHS700R	400	700	71	H	N/A	21	2399	702	3	16.56	Other Solid Matt RAL	POA
	4LHS700T	400	700	71	H	N/A	21	2399	702	3	16.56	Metallic Micrograin Matt Paint	POA
	4LHS700W	400	700	71	H	N/A	21	2399	702	3	16.56	White RAL 9016	POA
4LHS800-R	4LHS800R	400	800	71	H	N/A	24	2742	802	3.4	18.71	Other Solid Matt RAL	£382.91
4LHS800-T	4LHS800T	400	800	71	H	N/A	24	2742	802	3.4	18.71	Metallic Micrograin Matt Paint	£421.21
4LHS800	4LHS800W	400	800	71	H	N/A	24	2742	802	3.4	18.71	White RAL 9016	£225.24
	4LHS900R	400	900	71	H	N/A	27	3084	903	3.8	20.81	Other Solid Matt RAL	POA
	4LHS900T	400	900	71	H	N/A	27	3084	903	3.8	20.81	Metallic Micrograin Matt Paint	POA
	4LHS900W	400	900	71	H	N/A	27	3084	903	3.8	20.81	White RAL 9016	POA
	4LSS1000R	400	1000	52	H	N/A	30	2286	669	2.7	16.03	Other Solid Matt RAL	POA
	4LSS1000T	400	1000	52	H	N/A	30	2286	669	2.7	16.03	Metallic Micrograin Matt Paint	POA
	4LSS1000W	400	1000	52	H	N/A	30	2286	669	2.7	16.03	White RAL 9016	POA
	4LSS1100R	400	1100	52	H	N/A	33	2515	736	3	17.44	Other Solid Matt RAL	POA
	4LSS1100T	400	1100	52	H	N/A	33	2515	736	3	17.44	Metallic Micrograin Matt Paint	POA
	4LSS1100W	400	1100	52	H	N/A	33	2515	736	3	17.44	White RAL 9016	POA
	4LSS1200R	400	1200	52	H	N/A	36	2743	803	3.3	18.85	Other Solid Matt RAL	POA
	4LSS1200T	400	1200	52	H	N/A	36	2743	803	3.3	18.85	Metallic Micrograin Matt Paint	POA
	4LSS1200W	400	1200	52	H	N/A	36	2743	803	3.3	18.85	White RAL 9016	POA
	4LSS1400R	400	1400	52	H	N/A	42	3200	937	3.8	21.66	Other Solid Matt RAL	POA
	4LSS1400T	400	1400	52	H	N/A	42	3200	937	3.8	21.66	Metallic Micrograin Matt Paint	POA
	4LSS1400W	400	1400	52	H	N/A	42	3200	937	3.8	21.66	White RAL 9016	POA
	4LSS1600R	400	1600	52	H	N/A	48	3658	1070	4.4	24.48	Other Solid Matt RAL	POA
	4LSS1600T	400	1600	52	H	N/A	48	3658	1070	4.4	24.48	Metallic Micrograin Matt Paint	POA
	4LSS1600W	400	1600	52	H	N/A	48	3658	1070	4.4	24.48	White RAL 9016	POA
	4LSS1800R	400	1800	52	H	N/A	54	4115	1204	4.9	27.55	Other Solid Matt RAL	POA
	4LSS1800T	400	1800	52	H	N/A	54	4115	1204	4.9	27.55	Metallic Micrograin Matt Paint	POA
	4LSS1800W	400	1800	52	H	N/A	54	4115	1204	4.9	27.55	White RAL 9016	POA
	4LSS2000R	400	2000	52	H	N/A	60	4572	1338	5.5	30.35	Other Solid Matt RAL	POA
	4LSS2000T	400	2000	52	H	N/A	60	4572	1338	5.5	30.35	Metallic Micrograin Matt Paint	POA
	4LSS2000W	400	2000	52	H	N/A	60	4572	1338	5.5	30.35	White RAL 9016	POA
	4LSS400R	400	400	52	H	N/A	12	914	268	1.1	7.57	Other Solid Matt RAL	POA
	4LSS400T	400	400	52	H	N/A	12	914	268	1.1	7.57	Metallic Micrograin Matt Paint	POA
	4LSS400W	400	400	52	H	N/A	12	914	268	1.1	7.57	White RAL 9016	POA
	4LSS500R	400	500	52	H	N/A	15	1143	335	1.4	8.98	Other Solid Matt RAL	POA
	4LSS500T	400	500	52	H	N/A	15	1143	335	1.4	8.98	Metallic Micrograin Matt Paint	POA
	4LSS500W	400	500	52	H	N/A	15	1143	335	1.4	8.98	White RAL 9016	POA
	4LSS600R	400	600	52	H	N/A	18	1372	401	1.6	10.38	Other Solid Matt RAL	POA
	4LSS600T	400	600	52	H	N/A	18	1372	401	1.6	10.38	Metallic Micrograin Matt Paint	POA
	4LSS600W	400	600	52	H	N/A	18	1372	401	1.6	10.38	White RAL 9016	POA
	4LSS700R	400	700	52	H	N/A	21	1600	468	1.9	11.79	Other Solid Matt RAL	POA
	4LSS700T	400	700	52	H	N/A	21	1600	468	1.9	11.79	Metallic Micrograin Matt Paint	POA
	4LSS700W	400	700	52	H	N/A	21	1600	468	1.9	11.79	White RAL 9016	POA
	4LSS800R	400	800	52	H	N/A	24	1829	535	2.2	13.2	Other Solid Matt RAL	POA
	4LSS800T	400	800	52	H	N/A	24	1829	535	2.2	13.2	Metallic Micrograin Matt Paint	POA
	4LSS800W	400	800	52	H	N/A	24	1829	535	2.2	13.2	White RAL 9016	POA
	4LSS900R	400	900	52	H	N/A	27	2057	602	2.5	14.61	Other Solid Matt RAL	POA
	4LSS900T	400	900	52	H	N/A	27	2057	602	2.5	14.61	Metallic Micrograin Matt Paint	POA
	4LSS900W	400	900	52	H	N/A	27	2057	602	2.5	14.61	White RAL 9016	POA
	4LTS1000R	400	1000	164	H	N/A	30	5409	1584	6.4	35.77	Other Solid Matt RAL	POA
	4LTS1000T	400	1000	164	H	N/A	30	5409	1584	6.4	35.77	Metallic Micrograin Matt Paint	POA
	4LTS1000W	400	1000	164	H	N/A	30	5409	1584	6.4	35.77	White RAL 9016	POA
	4LTS1200R	400	1200	164	H	N/A	36	6495	1902	7.7	42.37	Other Solid Matt RAL	POA
	4LTS1200T	400	1200	164	H	N/A	36	6495	1902	7.7	42.37	Metallic Micrograin Matt Paint	POA
	4LTS1200W	400	1200	164	H	N/A	36	6495	1902	7.7	42.37	White RAL 9016	POA
	4LTS1400R	400	1400	164	H	N/A	42	7574	2218	8.9	48.9	Other Solid Matt RAL	POA
	4LTS1400T	400	1400	164	H	N/A	42	7574	2218	8.9	48.9	Metallic Micrograin Matt Paint	POA
	4LTS1400W	400	1400	164	H	N/A	42	7574	2218	8.9	48.9	White RAL 9016	POA
	4LTS1600R	400	1600	164	H	N/A	48	8657	2535	10.2	55.64	Other Solid Matt RAL	POA
	4LTS1600T	400	1600	164	H	N/A	48	8657	2535	10.2	55.64	Metallic Micrograin Matt Paint	POA
	4LTS1600W	400	1600	164	H	N/A	48	8657	2535	10.2	55.64	White RAL 9016	POA
	4LTS1800R	400	1800	164	H	N/A	54	9740	2852	11.5	62.46	Other Solid Matt RAL	POA
	4LTS1800T	400	1800	164	H	N/A	54	9740	2852	11.5	62.46	Metallic Micrograin Matt Paint	POA
	4LTS1800W	400	1800	164	H	N/A	54	9740	2852	11.5	62.46	White RAL 9016	POA
	4LTS2000R	400	2000	164	H	N/A	60	10822	3169	12.8	69.04	Other Solid Matt RAL	POA
	4LTS2000T	400	2000	164	H	N/A	60	10822	3169	12.8	69.04	Metallic Micrograin Matt Paint	POA
	4LTS2000W	400	2000	164	H	N/A	60	10822	3169	12.8	69.04	White RAL 9016	POA
	4LTS500R	400	500	164	H	N/A	15	2697	790	3.2	19.28	Other Solid Matt RAL	POA
	4LTS500T	400	500	164	H	N/A	15	2697	790	3.2	19.28	Metallic Micrograin Matt Paint	POA
	4LTS500W	400	500	164	H	N/A	15	2697	790	3.2	19.28	White RAL 9016	POA
	4LTS600R	400	600	164	H	N/A	18	3248	951	3.8	22.49	Other Solid Matt RAL	POA
	4LTS600T	400	600	164	H	N/A	18	3248	951	3.8	22.49	Metallic Micrograin Matt Paint	POA
	4LTS600W	400	600	164	H	N/A	18	3248	951	3.8	22.49	White RAL 9016	POA
	4LTS800R	400	800	164	H	N/A	24	4327	1267	5.1	29.1	Other Solid Matt RAL	POA
	4LTS800T	400	800	164	H	N/A	24	4327	1267	5.1	29.1	Metallic Micrograin Matt Paint	POA
	4LTS800W	400	800	164	H	N/A	24	4327	1267	5.1	29.1	White RAL 9016	POA
5LDS1000-R	5LDS1000R	500	1000	104	H	N/A	30	5309	1554	5	31.25	Other Solid Matt RAL	£610.91
5LDS1000-T	5LDS1000T	500	1000	104	H	N/A	30	5309	1554	5	31.25	Metallic Micrograin Matt Paint	£672.00
5LDS1000	5LDS1000W	500	1000	104	H	N/A	30	5309	1554	5	31.25	White RAL 9016	£359.36
5LDS1100-R	5LDS1100R	500	1100	104	H	N/A	33	5840	1709	5.5	34.19	Other Solid Matt RAL	£667.99
5LDS1100-T	5LDS1100T	500	1100	104	H	N/A	33	5840	1709	5.5	34.19	Metallic Micrograin Matt Paint	£734.79
5LDS1100	5LDS1100W	500	1100	104	H	N/A	33	5840	1709	5.5	34.19	White RAL 9016	£392.94
5LDS1200-R	5LDS1200R	500	1200	104	H	N/A	36	6371	1865	6	37.12	Other Solid Matt RAL	£724.83
5LDS1200-T	5LDS1200T	500	1200	104	H	N/A	36	6371	1865	6	37.12	Metallic Micrograin Matt Paint	£797.31
5LDS1200	5LDS1200W	500	1200	104	H	N/A	36	6371	1865	6	37.12	White RAL 9016	£426.37
5LDS1400-R	5LDS1400R	500	1400	104	H	N/A	42	7433	2176	7	42.99	Other Solid Matt RAL	£837.45
5LDS1400-T	5LDS1400T	500	1400	104	H	N/A	42	7433	2176	7	42.99	Metallic Micrograin Matt Paint	£921.20
5LDS1400	5LDS1400W	500	1400	104	H	N/A	42	7433	2176	7	42.99	White RAL 9016	£492.62
5LDS1600-R	5LDS1600R	500	1600	104	H	N/A	48	8494	2486	8	48.94	Other Solid Matt RAL	£950.33
5LDS1600-T	5LDS1600T	500	1600	104	H	N/A	48	8494	2486	8	48.94	Metallic Micrograin Matt Paint	£1,045.37
5LDS1600	5LDS1600W	500	1600	104	H	N/A	48	8494	2486	8	48.94	White RAL 9016	£559.02
	5LDS1800R	500	1800	104	H	N/A	54	9556	2797	9.1	54.59	Other Solid Matt RAL	POA
	5LDS1800T	500	1800	104	H	N/A	54	9556	2797	9.1	54.59	Metallic Micrograin Matt Paint	POA
	5LDS1800W	500	1800	104	H	N/A	54	9556	2797	9.1	54.59	White RAL 9016	POA
	5LDS2000R	500	2000	104	H	N/A	60	10618	3108	10.1	60.44	Other Solid Matt RAL	POA
	5LDS2000T	500	2000	104	H	N/A	60	10618	3108	10.1	60.44	Metallic Micrograin Matt Paint	POA
	5LDS2000W	500	2000	104	H	N/A	60	10618	3108	10.1	60.44	White RAL 9016	POA
	5LDS400R	500	400	104	H	N/A	12	2124	622	2	13.57	Other Solid Matt RAL	POA
	5LDS400T	500	400	104	H	N/A	12	2124	622	2	13.57	Metallic Micrograin Matt Paint	POA
	5LDS400W	500	400	104	H	N/A	12	2124	622	2	13.57	White RAL 9016	POA
	5LDS500R	500	500	104	H	N/A	15	2655	777	2.5	16.5	Other Solid Matt RAL	POA
	5LDS500T	500	500	104	H	N/A	15	2655	777	2.5	16.5	Metallic Micrograin Matt Paint	POA
	5LDS500W	500	500	104	H	N/A	15	2655	777	2.5	16.5	White RAL 9016	POA
5LDS600-R	5LDS600R	500	600	104	H	N/A	18	3185	932	3	19.44	Other Solid Matt RAL	£385.02
5LDS600-T	5LDS600T	500	600	104	H	N/A	18	3185	932	3	19.44	Metallic Micrograin Matt Paint	£423.52
5LDS600	5LDS600W	500	600	104	H	N/A	18	3185	932	3	19.44	White RAL 9016	£226.49
	5LDS700R	500	700	104	H	N/A	21	3716	1088	3.5	22.37	Other Solid Matt RAL	POA
	5LDS700T	500	700	104	H	N/A	21	3716	1088	3.5	22.37	Metallic Micrograin Matt Paint	POA
	5LDS700W	500	700	104	H	N/A	21	3716	1088	3.5	22.37	White RAL 9016	POA
5LDS800-R	5LDS800R	500	800	104	H	N/A	24	4247	1243	4	25.31	Other Solid Matt RAL	£498.15
5LDS800-T	5LDS800T	500	800	104	H	N/A	24	4247	1243	4	25.31	Metallic Micrograin Matt Paint	£547.96
5LDS800	5LDS800W	500	800	104	H	N/A	24	4247	1243	4	25.31	White RAL 9016	£293.03
	5LDS900R	500	900	104	H	N/A	27	4778	1399	4.5	28.24	Other Solid Matt RAL	POA
	5LDS900T	500	900	104	H	N/A	27	4778	1399	4.5	28.24	Metallic Micrograin Matt Paint	POA
	5LDS900W	500	900	104	H	N/A	27	4778	1399	4.5	28.24	White RAL 9016	POA
5LHS1000-R	5LHS1000R	500	1000	71	H	N/A	30	4122	1207	5	27.91	Other Solid Matt RAL	£558.57
5LHS1000-T	5LHS1000T	500	1000	71	H	N/A	30	4122	1207	5	27.91	Metallic Micrograin Matt Paint	£614.43
5LHS1000	5LHS1000W	500	1000	71	H	N/A	30	4122	1207	5	27.91	White RAL 9016	£328.57
	5LHS1100R	500	1100	71	H	N/A	33	4534	1328	5.5	30.54	Other Solid Matt RAL	POA
	5LHS1100T	500	1100	71	H	N/A	33	4534	1328	5.5	30.54	Metallic Micrograin Matt Paint	POA
	5LHS1100W	500	1100	71	H	N/A	33	4534	1328	5.5	30.54	White RAL 9016	POA
5LHS1200-R	5LHS1200R	500	1200	71	H	N/A	36	4946	1448	6	33.17	Other Solid Matt RAL	£662.05
5LHS1200-T	5LHS1200T	500	1200	71	H	N/A	36	4946	1448	6	33.17	Metallic Micrograin Matt Paint	£728.25
5LHS1200	5LHS1200W	500	1200	71	H	N/A	36	4946	1448	6	33.17	White RAL 9016	£389.44
5LHS1400-R	5LHS1400R	500	1400	71	H	N/A	42	5771	1690	7	38.43	Other Solid Matt RAL	£765.10
5LHS1400-T	5LHS1400T	500	1400	71	H	N/A	42	5771	1690	7	38.43	Metallic Micrograin Matt Paint	£841.59
5LHS1400	5LHS1400W	500	1400	71	H	N/A	42	5771	1690	7	38.43	White RAL 9016	£450.05
	5LHS1600R	500	1600	71	H	N/A	48	6595	1931	8	43.74	Other Solid Matt RAL	POA
	5LHS1600T	500	1600	71	H	N/A	48	6595	1931	8	43.74	Metallic Micrograin Matt Paint	POA
	5LHS1600W	500	1600	71	H	N/A	48	6595	1931	8	43.74	White RAL 9016	POA
5LHS1800-R	5LHS1800R	500	1800	71	H	N/A	54	7420	2173	9	48.79	Other Solid Matt RAL	£996.00
5LHS1800-T	5LHS1800T	500	1800	71	H	N/A	54	7420	2173	9	48.79	Metallic Micrograin Matt Paint	£1,095.60
5LHS1800	5LHS1800W	500	1800	71	H	N/A	54	7420	2173	9	48.79	White RAL 9016	£585.88
	5LHS2000R	500	2000	71	H	N/A	60	8244	2414	10	54.03	Other Solid Matt RAL	POA
	5LHS2000T	500	2000	71	H	N/A	60	8244	2414	10	54.03	Metallic Micrograin Matt Paint	POA
	5LHS2000W	500	2000	71	H	N/A	60	8244	2414	10	54.03	White RAL 9016	POA
	5LHS400R	500	400	71	H	N/A	12	1649	483	2	12.08	Other Solid Matt RAL	POA
	5LHS400T	500	400	71	H	N/A	12	1649	483	2	12.08	Metallic Micrograin Matt Paint	POA
	5LHS400W	500	400	71	H	N/A	12	1649	483	2	12.08	White RAL 9016	POA
	5LHS500R	500	500	71	H	N/A	15	2061	604	2.5	14.71	Other Solid Matt RAL	POA
	5LHS500T	500	500	71	H	N/A	15	2061	604	2.5	14.71	Metallic Micrograin Matt Paint	POA
	5LHS500W	500	500	71	H	N/A	15	2061	604	2.5	14.71	White RAL 9016	POA
5LHS600-R	5LHS600R	500	600	71	H	N/A	18	2473	724	3	17.34	Other Solid Matt RAL	£352.82
5LHS600-T	5LHS600T	500	600	71	H	N/A	18	2473	724	3	17.34	Metallic Micrograin Matt Paint	£388.10
5LHS600	5LHS600W	500	600	71	H	N/A	18	2473	724	3	17.34	White RAL 9016	£207.54
5LHS700-R	5LHS700R	500	700	71	H	N/A	21	2885	845	3.5	19.97	Other Solid Matt RAL	£404.40
5LHS700-T	5LHS700T	500	700	71	H	N/A	21	2885	845	3.5	19.97	Metallic Micrograin Matt Paint	£444.83
5LHS700	5LHS700W	500	700	71	H	N/A	21	2885	845	3.5	19.97	White RAL 9016	£237.88
5LHS800-R	5LHS800R	500	800	71	H	N/A	24	3298	966	4	22.65	Other Solid Matt RAL	£456.08
5LHS800-T	5LHS800T	500	800	71	H	N/A	24	3298	966	4	22.65	Metallic Micrograin Matt Paint	£501.69
5LHS800	5LHS800W	500	800	71	H	N/A	24	3298	966	4	22.65	White RAL 9016	£268.29
	5LHS900R	500	900	71	H	N/A	27	3710	1086	4.5	25.28	Other Solid Matt RAL	POA
	5LHS900T	500	900	71	H	N/A	27	3710	1086	4.5	25.28	Metallic Micrograin Matt Paint	POA
	5LHS900W	500	900	71	H	N/A	27	3710	1086	4.5	25.28	White RAL 9016	POA
5LSS1000-R	5LSS1000R	500	1000	52	H	N/A	30	2748	804	2.9	19.27	Other Solid Matt RAL	£409.34
5LSS1000-T	5LSS1000T	500	1000	52	H	N/A	30	2748	804	2.9	19.27	Metallic Micrograin Matt Paint	£450.27
5LSS1000	5LSS1000W	500	1000	52	H	N/A	30	2748	804	2.9	19.27	White RAL 9016	£240.79
	5LSS1100R	500	1100	52	H	N/A	33	3023	884	3.2	21.03	Other Solid Matt RAL	POA
	5LSS1100T	500	1100	52	H	N/A	33	3023	884	3.2	21.03	Metallic Micrograin Matt Paint	POA
	5LSS1100W	500	1100	52	H	N/A	33	3023	884	3.2	21.03	White RAL 9016	POA
5LSS1200-R	5LSS1200R	500	1200	52	H	N/A	36	3298	965	3.4	22.79	Other Solid Matt RAL	£482.53
	5LSS1200T	500	1200	52	H	N/A	36	3298	965	3.4	22.79	Metallic Micrograin Matt Paint	POA
5LSS1200	5LSS1200W	500	1200	52	H	N/A	36	3298	965	3.4	22.79	White RAL 9016	£283.84
5LSS1400-R	5LSS1400R	500	1400	52	H	N/A	42	3847	1126	4	26.31	Other Solid Matt RAL	£555.22
5LSS1400-T	5LSS1400T	500	1400	52	H	N/A	42	3847	1126	4	26.31	Metallic Micrograin Matt Paint	£610.74
5LSS1400	5LSS1400W	500	1400	52	H	N/A	42	3847	1126	4	26.31	White RAL 9016	£326.60
	5LSS1600R	500	1600	52	H	N/A	48	4397	1286	4.6	29.83	Other Solid Matt RAL	POA
	5LSS1600T	500	1600	52	H	N/A	48	4397	1286	4.6	29.83	Metallic Micrograin Matt Paint	POA
	5LSS1600W	500	1600	52	H	N/A	48	4397	1286	4.6	29.83	White RAL 9016	POA
	5LSS1800R	500	1800	52	H	N/A	54	4946	1447	5.2	33.17	Other Solid Matt RAL	POA
	5LSS1800T	500	1800	52	H	N/A	54	4946	1447	5.2	33.17	Metallic Micrograin Matt Paint	POA
	5LSS1800W	500	1800	52	H	N/A	54	4946	1447	5.2	33.17	White RAL 9016	POA
	5LSS2000R	500	2000	52	H	N/A	60	5496	1608	5.7	36.67	Other Solid Matt RAL	POA
	5LSS2000T	500	2000	52	H	N/A	60	5496	1608	5.7	36.67	Metallic Micrograin Matt Paint	POA
	5LSS2000W	500	2000	52	H	N/A	60	5496	1608	5.7	36.67	White RAL 9016	POA
	5LSS400R	500	400	52	H	N/A	12	1099	322	1.1	8.7	Other Solid Matt RAL	POA
	5LSS400T	500	400	52	H	N/A	12	1099	322	1.1	8.7	Metallic Micrograin Matt Paint	POA
	5LSS400W	500	400	52	H	N/A	12	1099	322	1.1	8.7	White RAL 9016	POA
	5LSS500R	500	500	52	H	N/A	15	1374	402	1.4	10.46	Other Solid Matt RAL	POA
	5LSS500T	500	500	52	H	N/A	15	1374	402	1.4	10.46	Metallic Micrograin Matt Paint	POA
	5LSS500W	500	500	52	H	N/A	15	1374	402	1.4	10.46	White RAL 9016	POA
5LSS600-R	5LSS600R	500	600	52	H	N/A	18	1649	482	1.7	12.21	Other Solid Matt RAL	£264.54
5LSS600-T	5LSS600T	500	600	52	H	N/A	18	1649	482	1.7	12.21	Metallic Micrograin Matt Paint	£291.00
5LSS600	5LSS600W	500	600	52	H	N/A	18	1649	482	1.7	12.21	White RAL 9016	£155.62
	5LSS700R	500	700	52	H	N/A	21	1924	563	2	13.97	Other Solid Matt RAL	POA
	5LSS700T	500	700	52	H	N/A	21	1924	563	2	13.97	Metallic Micrograin Matt Paint	POA
	5LSS700W	500	700	52	H	N/A	21	1924	563	2	13.97	White RAL 9016	POA
5LSS800-R	5LSS800R	500	800	52	H	N/A	24	2198	643	2.3	15.74	Other Solid Matt RAL	£336.80
5LSS800-T	5LSS800T	500	800	52	H	N/A	24	2198	643	2.3	15.74	Metallic Micrograin Matt Paint	£370.48
5LSS800	5LSS800W	500	800	52	H	N/A	24	2198	643	2.3	15.74	White RAL 9016	£198.12
	5LSS900R	500	900	52	H	N/A	27	2473	724	2.6	17.5	Other Solid Matt RAL	POA
	5LSS900T	500	900	52	H	N/A	27	2473	724	2.6	17.5	Metallic Micrograin Matt Paint	POA
	5LSS900W	500	900	52	H	N/A	27	2473	724	2.6	17.5	White RAL 9016	POA
	5LTS1000R	500	1000	164	H	N/A	30	6502	1904	7.6	43.98	Other Solid Matt RAL	POA
	5LTS1000T	500	1000	164	H	N/A	30	6502	1904	7.6	43.98	Metallic Micrograin Matt Paint	POA
	5LTS1000W	500	1000	164	H	N/A	30	6502	1904	7.6	43.98	White RAL 9016	POA
	5LTS1200R	500	1200	164	H	N/A	36	7803	2285	9.1	52.27	Other Solid Matt RAL	POA
	5LTS1200T	500	1200	164	H	N/A	36	7803	2285	9.1	52.27	Metallic Micrograin Matt Paint	POA
	5LTS1200W	500	1200	164	H	N/A	36	7803	2285	9.1	52.27	White RAL 9016	POA
	5LTS1400R	500	1400	164	H	N/A	42	9104	2666	10.6	60.56	Other Solid Matt RAL	POA
	5LTS1400T	500	1400	164	H	N/A	42	9104	2666	10.6	60.56	Metallic Micrograin Matt Paint	POA
	5LTS1400W	500	1400	164	H	N/A	42	9104	2666	10.6	60.56	White RAL 9016	POA
	5LTS1600R	500	1600	164	H	N/A	48	10402	3046	12.1	68.74	Other Solid Matt RAL	POA
	5LTS1600T	500	1600	164	H	N/A	48	10402	3046	12.1	68.74	Metallic Micrograin Matt Paint	POA
	5LTS1600W	500	1600	164	H	N/A	48	10402	3046	12.1	68.74	White RAL 9016	POA
	5LTS1800R	500	1800	164	H	N/A	54	11707	3428	13.7	77.03	Other Solid Matt RAL	POA
	5LTS1800T	500	1800	164	H	N/A	54	11707	3428	13.7	77.03	Metallic Micrograin Matt Paint	POA
	5LTS1800W	500	1800	164	H	N/A	54	11707	3428	13.7	77.03	White RAL 9016	POA
	5LTS2000R	500	2000	164	H	N/A	60	13008	3809	15.2	85.27	Other Solid Matt RAL	POA
	5LTS2000T	500	2000	164	H	N/A	60	13008	3809	15.2	85.27	Metallic Micrograin Matt Paint	POA
	5LTS2000W	500	2000	164	H	N/A	60	13008	3809	15.2	85.27	White RAL 9016	POA
	5LTS400R	500	400	164	H	N/A	12	3254	953	3	19.03	Other Solid Matt RAL	POA
	5LTS400T	500	400	164	H	N/A	12	3254	953	3	19.03	Metallic Micrograin Matt Paint	POA
	5LTS400W	500	400	164	H	N/A	12	3254	953	3	19.03	White RAL 9016	POA
	5LTS500R	500	500	164	H	N/A	15	3887	1138	3.8	23.18	Other Solid Matt RAL	POA
	5LTS500T	500	500	164	H	N/A	15	3887	1138	3.8	23.18	Metallic Micrograin Matt Paint	POA
	5LTS500W	500	500	164	H	N/A	15	3887	1138	3.8	23.18	White RAL 9016	POA
	5LTS600R	500	600	164	H	N/A	18	3900	1142	4.6	27.32	Other Solid Matt RAL	POA
	5LTS600T	500	600	164	H	N/A	18	3900	1142	4.6	27.32	Metallic Micrograin Matt Paint	POA
	5LTS600W	500	600	164	H	N/A	18	3900	1142	4.6	27.32	White RAL 9016	POA
	5LTS800R	500	800	164	H	N/A	24	5201	1523	6.1	35.61	Other Solid Matt RAL	POA
	5LTS800T	500	800	164	H	N/A	24	5201	1523	6.1	35.61	Metallic Micrograin Matt Paint	POA
	5LTS800W	500	800	164	H	N/A	24	5201	1523	6.1	35.61	White RAL 9016	POA
6LDS1000-R	6LDS1000R	600	1000	104	H	N/A	30	6129	1794	5.8	37.89	Other Solid Matt RAL	£726.16
6LDS1000-T	6LDS1000T	600	1000	104	H	N/A	30	6129	1794	5.8	37.89	Metallic Micrograin Matt Paint	£798.77
6LDS1000	6LDS1000W	600	1000	104	H	N/A	30	6129	1794	5.8	37.89	White RAL 9016	£427.15
	6LDS1100R	600	1100	104	H	N/A	33	6742	1973	6.4	41.42	Other Solid Matt RAL	POA
	6LDS1100T	600	1100	104	H	N/A	33	6742	1973	6.4	41.42	Metallic Micrograin Matt Paint	POA
	6LDS1100W	600	1100	104	H	N/A	33	6742	1973	6.4	41.42	White RAL 9016	POA
6LDS1200-R	6LDS1200R	600	1200	104	H	N/A	36	7355	2153	7	44.96	Other Solid Matt RAL	£861.82
6LDS1200-T	6LDS1200T	600	1200	104	H	N/A	36	7355	2153	7	44.96	Metallic Micrograin Matt Paint	£948.01
6LDS1200	6LDS1200W	600	1200	104	H	N/A	36	7355	2153	7	44.96	White RAL 9016	£506.95
6LDS1400-R	6LDS1400R	600	1400	104	H	N/A	42	8581	2512	8.1	52.02	Other Solid Matt RAL	£998.67
6LDS1400-T	6LDS1400T	600	1400	104	H	N/A	42	8581	2512	8.1	52.02	Metallic Micrograin Matt Paint	£1,098.53
6LDS1400	6LDS1400W	600	1400	104	H	N/A	42	8581	2512	8.1	52.02	White RAL 9016	£587.45
6LDS1600-R	6LDS1600R	600	1600	104	H	N/A	48	9806	2870	9.3	59.17	Other Solid Matt RAL	£1,134.73
6LDS1600-T	6LDS1600T	600	1600	104	H	N/A	48	9806	2870	9.3	59.17	Metallic Micrograin Matt Paint	£1,248.21
6LDS1600	6LDS1600W	600	1600	104	H	N/A	48	9806	2870	9.3	59.17	White RAL 9016	£667.49
	6LDS1800R	600	1800	104	H	N/A	54	11032	3229	10.4	66.53	Other Solid Matt RAL	POA
	6LDS1800T	600	1800	104	H	N/A	54	11032	3229	10.4	66.53	Metallic Micrograin Matt Paint	POA
	6LDS1800W	600	1800	104	H	N/A	54	11032	3229	10.4	66.53	White RAL 9016	POA
6LDS2000-R	6LDS2000R	600	2000	104	H	N/A	60	12258	3588	11.6	73.57	Other Solid Matt RAL	£1,382.16
6LDS2000-T	6LDS2000T	600	2000	104	H	N/A	60	12258	3588	11.6	73.57	Metallic Micrograin Matt Paint	£1,520.38
6LDS2000	6LDS2000W	600	2000	104	H	N/A	60	12258	3588	11.6	73.57	White RAL 9016	£813.04
	6LDS400R	600	400	104	H	N/A	12	2452	718	2.3	16.62	Other Solid Matt RAL	POA
	6LDS400T	600	400	104	H	N/A	12	2452	718	2.3	16.62	Metallic Micrograin Matt Paint	POA
	6LDS400W	600	400	104	H	N/A	12	2452	718	2.3	16.62	White RAL 9016	POA
	6LDS500R	600	500	104	H	N/A	15	3065	897	2.9	20.15	Other Solid Matt RAL	POA
	6LDS500T	600	500	104	H	N/A	15	3065	897	2.9	20.15	Metallic Micrograin Matt Paint	POA
	6LDS500W	600	500	104	H	N/A	15	3065	897	2.9	20.15	White RAL 9016	POA
6LDS600-R	6LDS600R	600	600	104	H	N/A	18	3677	1076	3.5	23.68	Other Solid Matt RAL	£454.22
6LDS600-T	6LDS600T	600	600	104	H	N/A	18	3677	1076	3.5	23.68	Metallic Micrograin Matt Paint	£499.65
6LDS600	6LDS600W	600	600	104	H	N/A	18	3677	1076	3.5	23.68	White RAL 9016	£267.19
	6LDS700R	600	700	104	H	N/A	21	4290	1256	4.1	27.22	Other Solid Matt RAL	POA
	6LDS700T	600	700	104	H	N/A	21	4290	1256	4.1	27.22	Metallic Micrograin Matt Paint	POA
	6LDS700W	600	700	104	H	N/A	21	4290	1256	4.1	27.22	White RAL 9016	POA
6LDS800-R	6LDS800R	600	800	104	H	N/A	24	4903	1435	4.6	30.75	Other Solid Matt RAL	£590.22
6LDS800-T	6LDS800T	600	800	104	H	N/A	24	4903	1435	4.6	30.75	Metallic Micrograin Matt Paint	£649.25
6LDS800	6LDS800W	600	800	104	H	N/A	24	4903	1435	4.6	30.75	White RAL 9016	£347.19
	6LDS900R	600	900	104	H	N/A	27	5516	1615	5.2	34.28	Other Solid Matt RAL	POA
	6LDS900T	600	900	104	H	N/A	27	5516	1615	5.2	34.28	Metallic Micrograin Matt Paint	POA
	6LDS900W	600	900	104	H	N/A	27	5516	1615	5.2	34.28	White RAL 9016	POA
6LHS1000-R	6LHS1000R	600	1000	71	H	N/A	30	4778	1399	5.8	33.85	Other Solid Matt RAL	£653.17
6LHS1000-T	6LHS1000T	600	1000	71	H	N/A	30	4778	1399	5.8	33.85	Metallic Micrograin Matt Paint	£718.49
6LHS1000	6LHS1000W	600	1000	71	H	N/A	30	4778	1399	5.8	33.85	White RAL 9016	£384.22
	6LHS1100R	600	1100	71	H	N/A	33	5256	1539	6.4	37.01	Other Solid Matt RAL	POA
	6LHS1100T	600	1100	71	H	N/A	33	5256	1539	6.4	37.01	Metallic Micrograin Matt Paint	POA
	6LHS1100W	600	1100	71	H	N/A	33	5256	1539	6.4	37.01	White RAL 9016	POA
6LHS1200-R	6LHS1200R	600	1200	71	H	N/A	36	5734	1679	6.9	40.17	Other Solid Matt RAL	£774.50
6LHS1200-T	6LHS1200T	600	1200	71	H	N/A	36	5734	1679	6.9	40.17	Metallic Micrograin Matt Paint	£851.94
6LHS1200	6LHS1200W	600	1200	71	H	N/A	36	5734	1679	6.9	40.17	White RAL 9016	£455.58
6LHS1400-R	6LHS1400R	600	1400	71	H	N/A	42	6689	1959	8.1	46.49	Other Solid Matt RAL	£896.88
6LHS1400-T	6LHS1400T	600	1400	71	H	N/A	42	6689	1959	8.1	46.49	Metallic Micrograin Matt Paint	£986.57
6LHS1400	6LHS1400W	600	1400	71	H	N/A	42	6689	1959	8.1	46.49	White RAL 9016	£527.58
6LHS1600-R	6LHS1600R	600	1600	71	H	N/A	48	7645	2238	9.3	52.86	Other Solid Matt RAL	£1,018.59
6LHS1600-T	6LHS1600T	600	1600	71	H	N/A	48	7645	2238	9.3	52.86	Metallic Micrograin Matt Paint	£1,120.45
6LHS1600	6LHS1600W	600	1600	71	H	N/A	48	7645	2238	9.3	52.86	White RAL 9016	£599.17
6LHS1800-R	6LHS1800R	600	1800	71	H	N/A	54	8600	2518	10.4	59.48	Other Solid Matt RAL	£1,163.30
6LHS1800-T	6LHS1800T	600	1800	71	H	N/A	54	8600	2518	10.4	59.48	Metallic Micrograin Matt Paint	£1,279.63
6LHS1800	6LHS1800W	600	1800	71	H	N/A	54	8600	2518	10.4	59.48	White RAL 9016	£684.29
	6LHS2000R	600	2000	71	H	N/A	60	9556	2798	11.6	65.96	Other Solid Matt RAL	POA
	6LHS2000T	600	2000	71	H	N/A	60	9556	2798	11.6	65.96	Metallic Micrograin Matt Paint	POA
	6LHS2000W	600	2000	71	H	N/A	60	9556	2798	11.6	65.96	White RAL 9016	POA
	6LHS400R	600	400	71	H	N/A	12	1911	560	2.3	14.84	Other Solid Matt RAL	POA
	6LHS400T	600	400	71	H	N/A	12	1911	560	2.3	14.84	Metallic Micrograin Matt Paint	POA
	6LHS400W	600	400	71	H	N/A	12	1911	560	2.3	14.84	White RAL 9016	POA
6LHS500-R	6LHS500R	600	500	71	H	N/A	15	2389	700	2.9	18	Other Solid Matt RAL	£348.24
6LHS500-T	6LHS500T	600	500	71	H	N/A	15	2389	700	2.9	18	Metallic Micrograin Matt Paint	£383.08
6LHS500	6LHS500W	600	500	71	H	N/A	15	2389	700	2.9	18	White RAL 9016	£204.86
6LHS600-R	6LHS600R	600	600	71	H	N/A	18	2867	839	3.5	21.16	Other Solid Matt RAL	£409.36
6LHS600-T	6LHS600T	600	600	71	H	N/A	18	2867	839	3.5	21.16	Metallic Micrograin Matt Paint	£450.29
6LHS600	6LHS600W	600	600	71	H	N/A	18	2867	839	3.5	21.16	White RAL 9016	£240.80
6LHS700-R	6LHS700R	600	700	71	H	N/A	21	3345	979	4.1	24.32	Other Solid Matt RAL	£470.33
6LHS700-T	6LHS700T	600	700	71	H	N/A	21	3345	979	4.1	24.32	Metallic Micrograin Matt Paint	£517.36
6LHS700	6LHS700W	600	700	71	H	N/A	21	3345	979	4.1	24.32	White RAL 9016	£276.66
6LHS800-R	6LHS800R	600	800	71	H	N/A	24	3822	1119	4.6	27.53	Other Solid Matt RAL	£531.51
6LHS800-T	6LHS800T	600	800	71	H	N/A	24	3822	1119	4.6	27.53	Metallic Micrograin Matt Paint	£584.67
6LHS800	6LHS800W	600	800	71	H	N/A	24	3822	1119	4.6	27.53	White RAL 9016	£312.66
	6LHS900R	600	900	71	H	N/A	27	4300	1259	5.2	30.69	Other Solid Matt RAL	POA
	6LHS900T	600	900	71	H	N/A	27	4300	1259	5.2	30.69	Metallic Micrograin Matt Paint	POA
	6LHS900W	600	900	71	H	N/A	27	4300	1259	5.2	30.69	White RAL 9016	POA
6LSS1000-R	6LSS1000R	600	1000	52	H	N/A	30	3181	931	3	23.46	Other Solid Matt RAL	£476.87
6LSS1000-T	6LSS1000T	600	1000	52	H	N/A	30	3181	931	3	23.46	Metallic Micrograin Matt Paint	£524.55
6LSS1000	6LSS1000W	600	1000	52	H	N/A	30	3181	931	3	23.46	White RAL 9016	£280.51
	6LSS1100R	600	1100	52	H	N/A	33	3499	1024	3.3	25.57	Other Solid Matt RAL	POA
	6LSS1100T	600	1100	52	H	N/A	33	3499	1024	3.3	25.57	Metallic Micrograin Matt Paint	POA
	6LSS1100W	600	1100	52	H	N/A	33	3499	1024	3.3	25.57	White RAL 9016	POA
6LSS1200-R	6LSS1200R	600	1200	52	H	N/A	36	3817	1117	3.6	27.68	Other Solid Matt RAL	£563.12
6LSS1200-T	6LSS1200T	600	1200	52	H	N/A	36	3817	1117	3.6	27.68	Metallic Micrograin Matt Paint	£619.43
6LSS1200	6LSS1200W	600	1200	52	H	N/A	36	3817	1117	3.6	27.68	White RAL 9016	£331.25
6LSS1400-R	6LSS1400R	600	1400	52	H	N/A	42	4453	1303	4.2	31.91	Other Solid Matt RAL	£649.35
6LSS1400-T	6LSS1400T	600	1400	52	H	N/A	42	4453	1303	4.2	31.91	Metallic Micrograin Matt Paint	£714.29
6LSS1400	6LSS1400W	600	1400	52	H	N/A	42	4453	1303	4.2	31.91	White RAL 9016	£381.97
	6LSS1600R	600	1600	52	H	N/A	48	5090	1490	4.8	36.14	Other Solid Matt RAL	POA
	6LSS1600T	600	1600	52	H	N/A	48	5090	1490	4.8	36.14	Metallic Micrograin Matt Paint	POA
	6LSS1600W	600	1600	52	H	N/A	48	5090	1490	4.8	36.14	White RAL 9016	POA
6LSS1800-R	6LSS1800R	600	1800	52	H	N/A	54	5726	1676	5.4	40.7	Other Solid Matt RAL	£821.77
6LSS1800-T	6LSS1800T	600	1800	52	H	N/A	54	5726	1676	5.4	40.7	Metallic Micrograin Matt Paint	£903.94
6LSS1800	6LSS1800W	600	1800	52	H	N/A	54	5726	1676	5.4	40.7	White RAL 9016	£483.39
6LSS2000-R	6LSS2000R	600	2000	52	H	N/A	60	6362	1862	6	44.89	Other Solid Matt RAL	£910.49
6LSS2000-T	6LSS2000T	600	2000	52	H	N/A	60	6362	1862	6	44.89	Metallic Micrograin Matt Paint	£1,001.54
6LSS2000	6LSS2000W	600	2000	52	H	N/A	60	6362	1862	6	44.89	White RAL 9016	£535.58
	6LSS400R	600	400	52	H	N/A	12	1272	372	1.2	10.76	Other Solid Matt RAL	POA
	6LSS400T	600	400	52	H	N/A	12	1272	372	1.2	10.76	Metallic Micrograin Matt Paint	POA
	6LSS400W	600	400	52	H	N/A	12	1272	372	1.2	10.76	White RAL 9016	POA
6LSS500-R	6LSS500R	600	500	52	H	N/A	15	1591	466	1.5	12.88	Other Solid Matt RAL	£242.55
6LSS500-T	6LSS500T	600	500	52	H	N/A	15	1591	466	1.5	12.88	Metallic Micrograin Matt Paint	£266.81
6LSS500	6LSS500W	600	500	52	H	N/A	15	1591	466	1.5	12.88	White RAL 9016	£142.68
6LSS600-R	6LSS600R	600	600	52	H	N/A	18	1909	559	1.8	14.99	Other Solid Matt RAL	£304.17
6LSS600-T	6LSS600T	600	600	52	H	N/A	18	1909	559	1.8	14.99	Metallic Micrograin Matt Paint	£334.59
6LSS600	6LSS600W	600	600	52	H	N/A	18	1909	559	1.8	14.99	White RAL 9016	£178.92
	6LSS700R	600	700	52	H	N/A	21	2227	652	2.1	17.1	Other Solid Matt RAL	POA
	6LSS700T	600	700	52	H	N/A	21	2227	652	2.1	17.1	Metallic Micrograin Matt Paint	POA
	6LSS700W	600	700	52	H	N/A	21	2227	652	2.1	17.1	White RAL 9016	POA
6LSS800-R	6LSS800R	600	800	52	H	N/A	24	2545	745	2.4	19.22	Other Solid Matt RAL	£390.23
6LSS800-T	6LSS800T	600	800	52	H	N/A	24	2545	745	2.4	19.22	Metallic Micrograin Matt Paint	£429.26
6LSS800	6LSS800W	600	800	52	H	N/A	24	2545	745	2.4	19.22	White RAL 9016	£229.55
	6LSS900R	600	900	52	H	N/A	27	2863	838	2.7	21.33	Other Solid Matt RAL	POA
	6LSS900T	600	900	52	H	N/A	27	2863	838	2.7	21.33	Metallic Micrograin Matt Paint	POA
	6LSS900W	600	900	52	H	N/A	27	2863	838	2.7	21.33	White RAL 9016	POA
	6LTS1000R	600	1000	164	H	N/A	30	7506	2198	8.8	53.07	Other Solid Matt RAL	POA
	6LTS1000T	600	1000	164	H	N/A	30	7506	2198	8.8	53.07	Metallic Micrograin Matt Paint	POA
	6LTS1000W	600	1000	164	H	N/A	30	7506	2198	8.8	53.07	White RAL 9016	POA
	6LTS1200R	600	1200	164	H	N/A	36	9005	2637	10.5	63.07	Other Solid Matt RAL	POA
	6LTS1200T	600	1200	164	H	N/A	36	9005	2637	10.5	63.07	Metallic Micrograin Matt Paint	POA
	6LTS1200W	600	1200	164	H	N/A	36	9005	2637	10.5	63.07	White RAL 9016	POA
	6LTS1400R	600	1400	164	H	N/A	42	10508	3077	12.3	73.01	Other Solid Matt RAL	POA
	6LTS1400T	600	1400	164	H	N/A	42	10508	3077	12.3	73.01	Metallic Micrograin Matt Paint	POA
	6LTS1400W	600	1400	164	H	N/A	42	10508	3077	12.3	73.01	White RAL 9016	POA
	6LTS1600R	600	1600	164	H	N/A	48	12007	3516	14	83.06	Other Solid Matt RAL	POA
	6LTS1600T	600	1600	164	H	N/A	48	12007	3516	14	83.06	Metallic Micrograin Matt Paint	POA
	6LTS1600W	600	1600	164	H	N/A	48	12007	3516	14	83.06	White RAL 9016	POA
	6LTS1800R	600	1800	164	H	N/A	54	13510	3956	15.8	93.33	Other Solid Matt RAL	POA
	6LTS1800T	600	1800	164	H	N/A	54	13510	3956	15.8	93.33	Metallic Micrograin Matt Paint	POA
	6LTS1800W	600	1800	164	H	N/A	54	13510	3956	15.8	93.33	White RAL 9016	POA
	6LTS2000R	600	2000	164	H	N/A	60	15009	4395	17.6	103.26	Other Solid Matt RAL	POA
	6LTS2000T	600	2000	164	H	N/A	60	15009	4395	17.6	103.26	Metallic Micrograin Matt Paint	POA
	6LTS2000W	600	2000	164	H	N/A	60	15009	4395	17.6	103.26	White RAL 9016	POA
	6LTS400R	600	400	164	H	N/A	12	3002	879	3.5	22.87	Other Solid Matt RAL	POA
	6LTS400T	600	400	164	H	N/A	12	3002	879	3.5	22.87	Metallic Micrograin Matt Paint	POA
	6LTS400W	600	400	164	H	N/A	12	3002	879	3.5	22.87	White RAL 9016	POA
	6LTS500R	600	500	164	H	N/A	15	3739	1095	4.4	28.07	Other Solid Matt RAL	POA
	6LTS500T	600	500	164	H	N/A	15	3739	1095	4.4	28.07	Metallic Micrograin Matt Paint	POA
	6LTS500W	600	500	164	H	N/A	15	3739	1095	4.4	28.07	White RAL 9016	POA
	6LTS600R	600	600	164	H	N/A	18	4501	1318	5.3	33.06	Other Solid Matt RAL	POA
	6LTS600T	600	600	164	H	N/A	18	4501	1318	5.3	33.06	Metallic Micrograin Matt Paint	POA
	6LTS600W	600	600	164	H	N/A	18	4501	1318	5.3	33.06	White RAL 9016	POA
	6LTS800R	600	800	164	H	N/A	24	6004	1758	7	43	Other Solid Matt RAL	POA
	6LTS800T	600	800	164	H	N/A	24	6004	1758	7	43	Metallic Micrograin Matt Paint	POA
	6LTS800W	600	800	164	H	N/A	24	6004	1758	7	43	White RAL 9016	POA
	6LTS900R	600	900	164	H	N/A	27	6732	1971	7.9	43.03	Other Solid Matt RAL	POA
	6LTS900T	600	900	164	H	N/A	27	6732	1971	7.9	43.03	Metallic Micrograin Matt Paint	POA
	6LTS900W	600	900	164	H	N/A	27	6732	1971	7.9	43.03	White RAL 9016	POA
7LDS1000-R	7LDS1000R	700	1000	104	H	N/A	30	6887	2016	6.4	43.49	Other Solid Matt RAL	£854.27
7LDS1000-T	7LDS1000T	700	1000	104	H	N/A	30	6887	2016	6.4	43.49	Metallic Micrograin Matt Paint	£939.70
7LDS1000	7LDS1000W	700	1000	104	H	N/A	30	6887	2016	6.4	43.49	White RAL 9016	£502.51
7LDS1100-R	7LDS1100R	700	1100	104	H	N/A	33	7576	2218	7.1	47.56	Other Solid Matt RAL	£935.81
7LDS1100-T	7LDS1100T	700	1100	104	H	N/A	33	7576	2218	7.1	47.56	Metallic Micrograin Matt Paint	£1,029.39
7LDS1100	7LDS1100W	700	1100	104	H	N/A	33	7576	2218	7.1	47.56	White RAL 9016	£550.48
	7LDS1200R	700	1200	104	H	N/A	36	8264	2419	7.7	51.63	Other Solid Matt RAL	POA
	7LDS1200T	700	1200	104	H	N/A	36	8264	2419	7.7	51.63	Metallic Micrograin Matt Paint	POA
	7LDS1200W	700	1200	104	H	N/A	36	8264	2419	7.7	51.63	White RAL 9016	POA
	7LDS1400R	700	1400	104	H	N/A	42	9642	2822	9	59.78	Other Solid Matt RAL	POA
	7LDS1400T	700	1400	104	H	N/A	42	9642	2822	9	59.78	Metallic Micrograin Matt Paint	POA
	7LDS1400W	700	1400	104	H	N/A	42	9642	2822	9	59.78	White RAL 9016	POA
	7LDS400R	700	400	104	H	N/A	12	2755	806	2.6	18.99	Other Solid Matt RAL	POA
	7LDS400T	700	400	104	H	N/A	12	2755	806	2.6	18.99	Metallic Micrograin Matt Paint	POA
	7LDS400W	700	400	104	H	N/A	12	2755	806	2.6	18.99	White RAL 9016	POA
	7LDS500R	700	500	104	H	N/A	15	3444	1008	3.2	23.06	Other Solid Matt RAL	POA
	7LDS500T	700	500	104	H	N/A	15	3444	1008	3.2	23.06	Metallic Micrograin Matt Paint	POA
	7LDS500W	700	500	104	H	N/A	15	3444	1008	3.2	23.06	White RAL 9016	POA
7LDS600-R	7LDS600R	700	600	104	H	N/A	18	4132	1210	3.9	27.13	Other Solid Matt RAL	£531.98
7LDS600-T	7LDS600T	700	600	104	H	N/A	18	4132	1210	3.9	27.13	Metallic Micrograin Matt Paint	£585.18
7LDS600	7LDS600W	700	600	104	H	N/A	18	4132	1210	3.9	27.13	White RAL 9016	£312.93
	7LDS700R	700	700	104	H	N/A	21	4821	1411	4.5	31.2	Other Solid Matt RAL	POA
	7LDS700T	700	700	104	H	N/A	21	4821	1411	4.5	31.2	Metallic Micrograin Matt Paint	POA
	7LDS700W	700	700	104	H	N/A	21	4821	1411	4.5	31.2	White RAL 9016	POA
7LDS800-R	7LDS800R	700	800	104	H	N/A	24	5510	1613	5.1	35.27	Other Solid Matt RAL	£693.19
7LDS800-T	7LDS800T	700	800	104	H	N/A	24	5510	1613	5.1	35.27	Metallic Micrograin Matt Paint	£762.51
7LDS800	7LDS800W	700	800	104	H	N/A	24	5510	1613	5.1	35.27	White RAL 9016	£407.76
	7LDS900R	700	900	104	H	N/A	27	6198	1814	5.8	39.35	Other Solid Matt RAL	POA
	7LDS900T	700	900	104	H	N/A	27	6198	1814	5.8	39.35	Metallic Micrograin Matt Paint	POA
	7LDS900W	700	900	104	H	N/A	27	6198	1814	5.8	39.35	White RAL 9016	POA
	7LHS1000R	700	1000	71	H	N/A	30	5573	1632	6.4	38.7	Other Solid Matt RAL	POA
	7LHS1000T	700	1000	71	H	N/A	30	5573	1632	6.4	38.7	Metallic Micrograin Matt Paint	POA
	7LHS1000W	700	1000	71	H	N/A	30	5573	1632	6.4	38.7	White RAL 9016	POA
	7LHS1200R	700	1200	71	H	N/A	36	6688	1958	7.7	45.96	Other Solid Matt RAL	POA
	7LHS1200T	700	1200	71	H	N/A	36	6688	1958	7.7	45.96	Metallic Micrograin Matt Paint	POA
	7LHS1200W	700	1200	71	H	N/A	36	6688	1958	7.7	45.96	White RAL 9016	POA
	7LHS400R	700	400	71	H	N/A	12	2229	653	2.6	16.88	Other Solid Matt RAL	POA
	7LHS400T	700	400	71	H	N/A	12	2229	653	2.6	16.88	Metallic Micrograin Matt Paint	POA
	7LHS400W	700	400	71	H	N/A	12	2229	653	2.6	16.88	White RAL 9016	POA
	7LHS500R	700	500	71	H	N/A	15	2787	816	3.2	20.51	Other Solid Matt RAL	POA
	7LHS500T	700	500	71	H	N/A	15	2787	816	3.2	20.51	Metallic Micrograin Matt Paint	POA
	7LHS500W	700	500	71	H	N/A	15	2787	816	3.2	20.51	White RAL 9016	POA
	7LHS600R	700	600	71	H	N/A	18	3344	979	3.9	24.13	Other Solid Matt RAL	POA
	7LHS600T	700	600	71	H	N/A	18	3344	979	3.9	24.13	Metallic Micrograin Matt Paint	POA
	7LHS600W	700	600	71	H	N/A	18	3344	979	3.9	24.13	White RAL 9016	POA
	7LHS700R	700	700	71	H	N/A	21	3901	1142	4.5	27.77	Other Solid Matt RAL	POA
	7LHS700T	700	700	71	H	N/A	21	3901	1142	4.5	27.77	Metallic Micrograin Matt Paint	POA
	7LHS700W	700	700	71	H	N/A	21	3901	1142	4.5	27.77	White RAL 9016	POA
	7LHS800R	700	800	71	H	N/A	24	4459	1306	5.1	31.44	Other Solid Matt RAL	POA
	7LHS800T	700	800	71	H	N/A	24	4459	1306	5.1	31.44	Metallic Micrograin Matt Paint	POA
	7LHS800W	700	800	71	H	N/A	24	4459	1306	5.1	31.44	White RAL 9016	POA
	7LHS900R	700	900	71	H	N/A	27	5016	1469	5.8	35.08	Other Solid Matt RAL	POA
	7LHS900T	700	900	71	H	N/A	27	5016	1469	5.8	35.08	Metallic Micrograin Matt Paint	POA
	7LHS900W	700	900	71	H	N/A	27	5016	1469	5.8	35.08	White RAL 9016	POA
	7LSS1000R	700	1000	52	H	N/A	30	3584	1049	3.3	26.9	Other Solid Matt RAL	POA
	7LSS1000T	700	1000	52	H	N/A	30	3584	1049	3.3	26.9	Metallic Micrograin Matt Paint	POA
	7LSS1000W	700	1000	52	H	N/A	30	3584	1049	3.3	26.9	White RAL 9016	POA
	7LSS1100R	700	1100	52	H	N/A	33	3942	1154	3.6	29.33	Other Solid Matt RAL	POA
	7LSS1100T	700	1100	52	H	N/A	33	3942	1154	3.6	29.33	Metallic Micrograin Matt Paint	POA
	7LSS1100W	700	1100	52	H	N/A	33	3942	1154	3.6	29.33	White RAL 9016	POA
	7LSS1200R	700	1200	52	H	N/A	36	4301	1259	4	31.76	Other Solid Matt RAL	POA
	7LSS1200T	700	1200	52	H	N/A	36	4301	1259	4	31.76	Metallic Micrograin Matt Paint	POA
	7LSS1200W	700	1200	52	H	N/A	36	4301	1259	4	31.76	White RAL 9016	POA
	7LSS1400R	700	1400	52	H	N/A	42	5018	1469	4.6	36.63	Other Solid Matt RAL	POA
	7LSS1400T	700	1400	52	H	N/A	42	5018	1469	4.6	36.63	Metallic Micrograin Matt Paint	POA
	7LSS1400W	700	1400	52	H	N/A	42	5018	1469	4.6	36.63	White RAL 9016	POA
	7LSS400R	700	400	52	H	N/A	12	1434	420	1.3	12.29	Other Solid Matt RAL	POA
	7LSS400T	700	400	52	H	N/A	12	1434	420	1.3	12.29	Metallic Micrograin Matt Paint	POA
	7LSS400W	700	400	52	H	N/A	12	1434	420	1.3	12.29	White RAL 9016	POA
	7LSS500R	700	500	52	H	N/A	15	1792	525	1.7	14.72	Other Solid Matt RAL	POA
	7LSS500T	700	500	52	H	N/A	15	1792	525	1.7	14.72	Metallic Micrograin Matt Paint	POA
	7LSS500W	700	500	52	H	N/A	15	1792	525	1.7	14.72	White RAL 9016	POA
	7LSS600R	700	600	52	H	N/A	18	2150	629	2	17.15	Other Solid Matt RAL	POA
	7LSS600T	700	600	52	H	N/A	18	2150	629	2	17.15	Metallic Micrograin Matt Paint	POA
	7LSS600W	700	600	52	H	N/A	18	2150	629	2	17.15	White RAL 9016	POA
	7LSS700R	700	700	52	H	N/A	21	2509	734	2.3	19.58	Other Solid Matt RAL	POA
	7LSS700T	700	700	52	H	N/A	21	2509	734	2.3	19.58	Metallic Micrograin Matt Paint	POA
	7LSS700W	700	700	52	H	N/A	21	2509	734	2.3	19.58	White RAL 9016	POA
	7LSS800R	700	800	52	H	N/A	24	2867	839	2.6	22.02	Other Solid Matt RAL	POA
	7LSS800T	700	800	52	H	N/A	24	2867	839	2.6	22.02	Metallic Micrograin Matt Paint	POA
	7LSS800W	700	800	52	H	N/A	24	2867	839	2.6	22.02	White RAL 9016	POA
	7LSS900R	700	900	52	H	N/A	27	3226	944	3	24.45	Other Solid Matt RAL	POA
	7LSS900T	700	900	52	H	N/A	27	3226	944	3	24.45	Metallic Micrograin Matt Paint	POA
	7LSS900W	700	900	52	H	N/A	27	3226	944	3	24.45	White RAL 9016	POA
	7LTS1000R	700	1000	164	H	N/A	30	8390	2457	9.7	60.91	Other Solid Matt RAL	POA
	7LTS1000T	700	1000	164	H	N/A	30	8390	2457	9.7	60.91	Metallic Micrograin Matt Paint	POA
	7LTS1000W	700	1000	164	H	N/A	30	8390	2457	9.7	60.91	White RAL 9016	POA
	7LTS400R	700	400	164	H	N/A	12	3357	983	3.9	26.84	Other Solid Matt RAL	POA
	7LTS400T	700	400	164	H	N/A	12	3357	983	3.9	26.84	Metallic Micrograin Matt Paint	POA
	7LTS400W	700	400	164	H	N/A	12	3357	983	3.9	26.84	White RAL 9016	POA
	7LTS500R	700	500	164	H	N/A	15	4196	1229	4.8	32.87	Other Solid Matt RAL	POA
	7LTS500T	700	500	164	H	N/A	15	4196	1229	4.8	32.87	Metallic Micrograin Matt Paint	POA
	7LTS500W	700	500	164	H	N/A	15	4196	1229	4.8	32.87	White RAL 9016	POA
	7LTS600R	700	600	164	H	N/A	18	5033	1474	5.8	38.9	Other Solid Matt RAL	POA
	7LTS600T	700	600	164	H	N/A	18	5033	1474	5.8	38.9	Metallic Micrograin Matt Paint	POA
	7LTS600W	700	600	164	H	N/A	18	5033	1474	5.8	38.9	White RAL 9016	POA
	7LTS800R	700	800	164	H	N/A	24	6711	1965	7.8	50.95	Other Solid Matt RAL	POA
	7LTS800T	700	800	164	H	N/A	24	6711	1965	7.8	50.95	Metallic Micrograin Matt Paint	POA
	7LTS800W	700	800	164	H	N/A	24	6711	1965	7.8	50.95	White RAL 9016	POA
	9LDS400R	900	400	104	H	N/A	12	3289	963	3.1	24.4	Other Solid Matt RAL	POA
	9LDS400T	900	400	104	H	N/A	12	3289	963	3.1	24.4	Metallic Micrograin Matt Paint	POA
	9LDS400W	900	400	104	H	N/A	12	3289	963	3.1	24.4	White RAL 9016	POA
	9LDS500R	900	500	104	H	N/A	15	4111	1203	3.9	29.72	Other Solid Matt RAL	POA
	9LDS500T	900	500	104	H	N/A	15	4111	1203	3.9	29.72	Metallic Micrograin Matt Paint	POA
	9LDS500W	900	500	104	H	N/A	15	4111	1203	3.9	29.72	White RAL 9016	POA
	9LDS600R	900	600	104	H	N/A	18	4933	1444	4.6	35.05	Other Solid Matt RAL	POA
	9LDS600T	900	600	104	H	N/A	18	4933	1444	4.6	35.05	Metallic Micrograin Matt Paint	POA
	9LDS600W	900	600	104	H	N/A	18	4933	1444	4.6	35.05	White RAL 9016	POA
	9LDS700R	900	700	104	H	N/A	21	5755	1685	5.4	40.38	Other Solid Matt RAL	POA
	9LDS700T	900	700	104	H	N/A	21	5755	1685	5.4	40.38	Metallic Micrograin Matt Paint	POA
	9LDS700W	900	700	104	H	N/A	21	5755	1685	5.4	40.38	White RAL 9016	POA
	9LSS400R	900	400	52	H	N/A	12	1720	503	1.6	15.52	Other Solid Matt RAL	POA
	9LSS400T	900	400	52	H	N/A	12	1720	503	1.6	15.52	Metallic Micrograin Matt Paint	POA
	9LSS400W	900	400	52	H	N/A	12	1720	503	1.6	15.52	White RAL 9016	POA
	9LSS500R	900	500	52	H	N/A	15	2150	629	2	18.67	Other Solid Matt RAL	POA
	9LSS500T	900	500	52	H	N/A	15	2150	629	2	18.67	Metallic Micrograin Matt Paint	POA
	9LSS500W	900	500	52	H	N/A	15	2150	629	2	18.67	White RAL 9016	POA
	9LSS600R	900	600	52	H	N/A	18	2580	755	2.3	21.82	Other Solid Matt RAL	POA
	9LSS600T	900	600	52	H	N/A	18	2580	755	2.3	21.82	Metallic Micrograin Matt Paint	POA
	9LSS600W	900	600	52	H	N/A	18	2580	755	2.3	21.82	White RAL 9016	POA
	9LSS700R	900	700	52	H	N/A	21	3010	881	2.7	24.96	Other Solid Matt RAL	POA
	9LSS700T	900	700	52	H	N/A	21	3010	881	2.7	24.96	Metallic Micrograin Matt Paint	POA
	9LSS700W	900	700	52	H	N/A	21	3010	881	2.7	24.96	White RAL 9016	POA
	9LTS1000R	900	1000	164	H	N/A	30	9979	2922	11.5	79.07	Other Solid Matt RAL	POA
	9LTS1000T	900	1000	164	H	N/A	30	9979	2922	11.5	79.07	Metallic Micrograin Matt Paint	POA
	9LTS1000W	900	1000	164	H	N/A	30	9979	2922	11.5	79.07	White RAL 9016	POA
	9LTS400R	900	400	164	H	N/A	12	3991	1169	4.6	33.94	Other Solid Matt RAL	POA
	9LTS400T	900	400	164	H	N/A	12	3991	1169	4.6	33.94	Metallic Micrograin Matt Paint	POA
	9LTS400W	900	400	164	H	N/A	12	3991	1169	4.6	33.94	White RAL 9016	POA
	9LTS500R	900	500	164	H	N/A	15	4989	1461	5.8	41.45	Other Solid Matt RAL	POA
	9LTS500T	900	500	164	H	N/A	15	4989	1461	5.8	41.45	Metallic Micrograin Matt Paint	POA
	9LTS500W	900	500	164	H	N/A	15	4989	1461	5.8	41.45	White RAL 9016	POA
	9LTS600R	900	600	164	H	N/A	18	5988	1753	6.9	48.96	Other Solid Matt RAL	POA
	9LTS600T	900	600	164	H	N/A	18	5988	1753	6.9	48.96	Metallic Micrograin Matt Paint	POA
	9LTS600W	900	600	164	H	N/A	18	5988	1753	6.9	48.96	White RAL 9016	POA
	9LTS800R	900	800	164	H	N/A	24	7982	2337	9.2	63.98	Other Solid Matt RAL	POA
	9LTS800T	900	800	164	H	N/A	24	7982	2337	9.2	63.98	Metallic Micrograin Matt Paint	POA
	9LTS800W	900	800	164	H	N/A	24	7982	2337	9.2	63.98	White RAL 9016	POA

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
