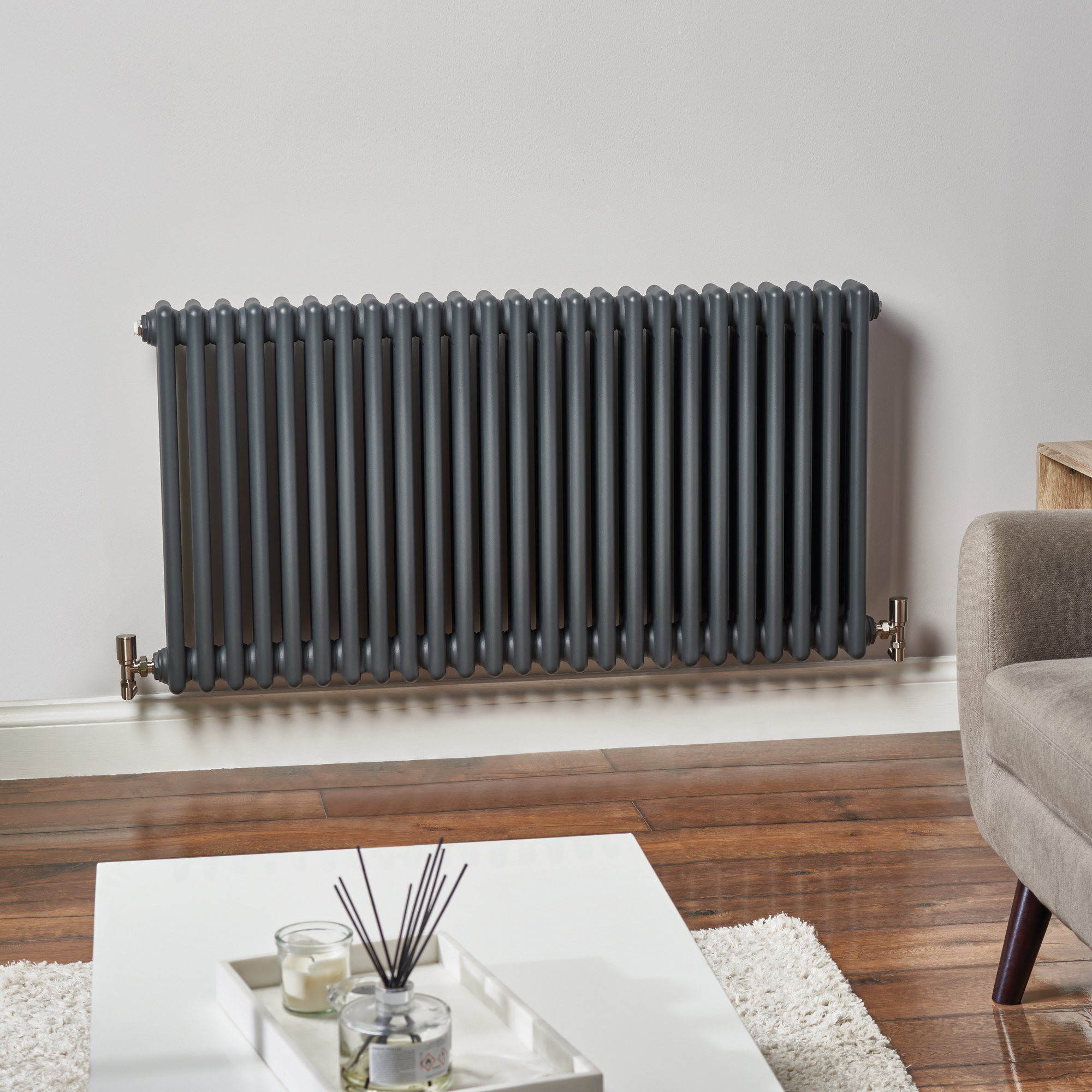

3 Column

The Ultraheat Column radiators are practical and versatile, making them the perfect choice for any room at home or office. You can choose from either two columns, three, four or six positioning them either vertically from floor to ceiling or tucking one effortlessly under a window.

The details:
• 5-Year Warranty
• Available in 53 size options
• High-quality white powder coat finish (White RAL 9016)
• Selected sizes available in Anthracite RAL 7016
• Available in any RAL colour
• Vertical columns (each one with three sections)
• Built to last: 1.5mm thick mild steel for guaranteed quality
• Tested to BS EB 442 Standards
• ISO9001:2008 Registered Manufactured
• We recommend pipework is not installed until receipt of radiator
• All prices are exclusive of VAT and delivery

SKU: 3 Column Categories: 3 Column, Range, Tubular Where to buy

The Range

MAX WORKING PRESSURE (BAR)

95 DEGREES MAX WORKING TEMP.

Closed System

Mild Steel

VERTICAL MOUNTING

5 YEARS WARRANTY

PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
C3030919R	300	864	100	H	N/A	19	2141	627	10.8	21.1	Other Solid Matt RAL	£781.42
C3030919T	300	864	100	H	N/A	19	2141	627	10.8	21.1	Metallic Micrograin Matt Paint	£875.19
C3030919W	300	864	100	H	N/A	19	2141	627	10.8	21.1	White RAL 9016	£465.13
C3031125R	300	1130	100	H	N/A	25	2817	825	14.3	27.4	Other Solid Matt RAL	£974.56
C3031125T	300	1130	100	H	N/A	25	2817	825	14.3	27.4	Metallic Micrograin Matt Paint	£1,091.51
C3031125W	300	1130	100	H	N/A	25	2817	825	14.3	27.4	White RAL 9016	£580.10
C3031432R	300	1440	100	H	N/A	32	3606	1056	18.2	34.8	Other Solid Matt RAL	£1,133.88
C3031432T	300	1440	100	H	N/A	32	3606	1056	18.2	34.8	Metallic Micrograin Matt Paint	£1,269.95
C3031432W	300	1440	100	H	N/A	32	3606	1056	18.2	34.8	White RAL 9016	£691.39
C3031636R	300	1617	100	H	N/A	36	4057	1188	20.5	38.8	Other Solid Matt RAL	£1,381.99
C3031636T	300	1617	100	H	N/A	36	4057	1188	20.5	38.8	Metallic Micrograin Matt Paint	£1,547.83
C3031636W	300	1617	100	H	N/A	36	4057	1188	20.5	38.8	White RAL 9016	£837.57
C3040409R	400	421	100	H	N/A	9	1291	378	6	12.5	Other Solid Matt RAL	£375.62
C3040409T	400	421	100	H	N/A	9	1291	378	6	12.5	Metallic Micrograin Matt Paint	£420.69
C3040409W	400	421	100	H	N/A	9	1291	378	6	12.5	White RAL 9016	£242.33
C3040613A	400	598	100	H	N/A	13	1865	546	8.8	18.4	Anthracite RAL 7016	£426.14
C3040613R	400	598	100	H	N/A	13	1865	546	8.8	18.4	Other Solid Matt RAL	£544.90
C3040613T	400	598	100	H	N/A	13	1865	546	8.8	18.4	Metallic Micrograin Matt Paint	£610.29
C3040613W	400	598	100	H	N/A	13	1865	546	8.8	18.4	White RAL 9016	£330.24
C3040716A	400	731	100	H	N/A	16	2295	672	10.8	22.4	Anthracite RAL 7016	£505.83
C3040716R	400	731	100	H	N/A	16	2295	672	10.8	22.4	Other Solid Matt RAL	£625.89
C3040716T	400	731	100	H	N/A	16	2295	672	10.8	22.4	Metallic Micrograin Matt Paint	£701.00
C3040716W	400	731	100	H	N/A	16	2295	672	10.8	22.4	White RAL 9016	£406.42
C3040919A	400	864	100	H	N/A	19	2725	798	12.8	26.4	Anthracite RAL 7016	£569.92
C3040919R	400	864	100	H	N/A	19	2725	798	12.8	26.4	Other Solid Matt RAL	£752.86
C3040919T	400	864	100	H	N/A	19	2725	798	12.8	26.4	Metallic Micrograin Matt Paint	£843.20
C3040919W	400	864	100	H	N/A	19	2725	798	12.8	26.4	White RAL 9016	£482.60
C3040922A	400	997	100	H	N/A	22	3155	924	14.8	30.5	Anthracite RAL 7016	£659.91
C3040922R	400	997	100	H	N/A	22	3155	924	14.8	30.5	Other Solid Matt RAL	£882.95
C3040922T	400	997	100	H	N/A	22	3155	924	14.8	30.5	Metallic Micrograin Matt Paint	£988.91
C3040922W	400	997	100	H	N/A	22	3155	924	14.8	30.5	White RAL 9016	£558.83
C3041125A	400	1130	100	H	N/A	25	3586	1050	16.9	34.3	Anthracite RAL 7016	£750.08
C3041125R	400	1130	100	H	N/A	25	3586	1050	16.9	34.3	Other Solid Matt RAL	£1,016.12
C3041125T	400	1130	100	H	N/A	25	3586	1050	16.9	34.3	Metallic Micrograin Matt Paint	£1,138.05
C3041125W	400	1130	100	H	N/A	25	3586	1050	16.9	34.3	White RAL 9016	£635.07
C3041432A	400	1440	100	H	N/A	32	4590	1344	21.6	43.5	Anthracite RAL 7016	£959.69
C3041432R	400	1440	100	H	N/A	32	4590	1344	21.6	43.5	Other Solid Matt RAL	£1,316.79
C3041432T	400	1440	100	H	N/A	32	4590	1344	21.6	43.5	Metallic Micrograin Matt Paint	£1,474.80
C3041432W	400	1440	100	H	N/A	32	4590	1344	21.6	43.5	White RAL 9016	£812.83
C3041636R	400	1617	100	H	N/A	36	5163	1512	24.4	48.8	Other Solid Matt RAL	£1,499.65
C3041636T	400	1617	100	H	N/A	36	5163	1512	24.4	48.8	Metallic Micrograin Matt Paint	£1,679.61
C3041636W	400	1617	100	H	N/A	36	5163	1512	24.4	48.8	White RAL 9016	£914.42
C3041640R	400	1794	100	H	N/A	40	5737	1680	27.1	54.2	Other Solid Matt RAL	£1,708.03
C3041640T	400	1794	100	H	N/A	40	5737	1680	27.1	54.2	Metallic Micrograin Matt Paint	£1,913.00
C3041640W	400	1794	100	H	N/A	40	5737	1680	27.1	54.2	White RAL 9016	£1,028.94
C3050409R	500	421	100	H	N/A	9	1567	459	7.2	15.5	Other Solid Matt RAL	£372.75
C3050409T	500	421	100	H	N/A	9	1567	459	7.2	15.5	Metallic Micrograin Matt Paint	£417.48
C3050409W	500	421	100	H	N/A	9	1567	459	7.2	15.5	White RAL 9016	£245.23
C3050613R	500	598	100	H	N/A	13	2264	663	10.4	21.6	Other Solid Matt RAL	£583.21
C3050613T	500	598	100	H	N/A	13	2264	663	10.4	21.6	Metallic Micrograin Matt Paint	£653.20
C3050613W	500	598	100	H	N/A	13	2264	663	10.4	21.6	White RAL 9016	£353.46
C3050716R	500	731	100	H	N/A	16	2787	816	12.8	26.3	Other Solid Matt RAL	£711.72
C3050716T	500	731	100	H	N/A	16	2787	816	12.8	26.3	Metallic Micrograin Matt Paint	£797.13
C3050716W	500	731	100	H	N/A	16	2787	816	12.8	26.3	White RAL 9016	£431.34
C3050919A	500	864	100	H	N/A	19	3309	969	15.2	31	Anthracite RAL 7016	£604.57
C3050919R	500	864	100	H	N/A	19	3309	969	15.2	31	Other Solid Matt RAL	£845.19
C3050919T	500	864	100	H	N/A	19	3309	969	15.2	31	Metallic Micrograin Matt Paint	£946.62
C3050919W	500	864	100	H	N/A	19	3309	969	15.2	31	White RAL 9016	£512.24
C3050922A	500	997	100	H	N/A	22	3832	1122	15.2	35.9	Anthracite RAL 7016	£681.55
C3050922R	500	997	100	H	N/A	22	3832	1122	15.2	35.9	Other Solid Matt RAL	£949.22
C3050922T	500	997	100	H	N/A	22	3832	1122	15.2	35.9	Metallic Micrograin Matt Paint	£1,063.13
C3050922W	500	997	100	H	N/A	22	3832	1122	15.2	35.9	White RAL 9016	£593.26
C3051125A	500	1130	100	H	N/A	25	4354	1275	20	40.3	Anthracite RAL 7016	£796.85
C3051125R	500	1130	100	H	N/A	25	4354	1275	20	40.3	Other Solid Matt RAL	£1,062.79
C3051125T	500	1130	100	H	N/A	25	4354	1275	20	40.3	Metallic Micrograin Matt Paint	£1,190.32
C3051125W	500	1130	100	H	N/A	25	4354	1275	20	40.3	White RAL 9016	£685.67
C3051432A	500	1440	100	H	N/A	32	5573	1632	25.6	51.1	Anthracite RAL 7016	£1,018.58
C3051432R	500	1440	100	H	N/A	32	5573	1632	25.6	51.1	Other Solid Matt RAL	£1,409.16
C3051432T	500	1440	100	H	N/A	32	5573	1632	25.6	51.1	Metallic Micrograin Matt Paint	£1,578.26
C3051432W	500	1440	100	H	N/A	32	5573	1632	25.6	51.1	White RAL 9016	£880.73
C3051636R	500	1617	100	H	N/A	36	6270	1836	28.8	57.3	Other Solid Matt RAL	£1,644.15
C3051636T	500	1617	100	H	N/A	36	6270	1836	28.8	57.3	Metallic Micrograin Matt Paint	£1,841.44
C3051636W	500	1617	100	H	N/A	36	6270	1836	28.8	57.3	White RAL 9016	£1,027.59
C3051640R	500	1794	100	H	N/A	40	6967	2040	32	63.7	Other Solid Matt RAL	£1,906.98
C3051640T	500	1794	100	H	N/A	40	6967	2040	32	63.7	Metallic Micrograin Matt Paint	£2,135.82
C3051640W	500	1794	100	H	N/A	40	6967	2040	32	63.7	White RAL 9016	£1,155.75
C3060306R	600	288	100	H	N/A	6	1250	366	5.8	11.6	Other Solid Matt RAL	£271.34
C3060306T	600	288	100	H	N/A	6	1250	366	5.8	11.6	Metallic Micrograin Matt Paint	£303.90
C3060306W	600	288	100	H	N/A	6	1250	366	5.8	11.6	White RAL 9016	£180.89
C3060408R	600	377	100	H	N/A	8	1667	488	7.7	15.3	Other Solid Matt RAL	£365.83
C3060408T	600	377	100	H	N/A	8	1667	488	7.7	15.3	Metallic Micrograin Matt Paint	£409.73
C3060408W	600	377	100	H	N/A	8	1667	488	7.7	15.3	White RAL 9016	£240.68
C3060409R	600	421	100	H	N/A	9	1875	549	8.6	18.1	Other Solid Matt RAL	£408.70
C3060409T	600	421	100	H	N/A	9	1875	549	8.6	18.1	Metallic Micrograin Matt Paint	£457.74
C3060409W	600	421	100	H	N/A	9	1875	549	8.6	18.1	White RAL 9016	£263.68
C3060613A	600	598	100	H	N/A	13	2708	793	12.5	25.6	Anthracite RAL 7016	£429.61
C3060613R	600	598	100	H	N/A	13	2708	793	12.5	25.6	Other Solid Matt RAL	£608.29
C3060613T	600	598	100	H	N/A	13	2708	793	12.5	25.6	Metallic Micrograin Matt Paint	£681.29
C3060613W	600	598	100	H	N/A	13	2708	793	12.5	25.6	White RAL 9016	£380.18
C3060716A	600	731	100	H	N/A	16	3333	976	15.4	31.2	Anthracite RAL 7016	£531.81
C3060716R	600	731	100	H	N/A	16	3333	976	15.4	31.2	Other Solid Matt RAL	£757.71
C3060716T	600	731	100	H	N/A	16	3333	976	15.4	31.2	Metallic Micrograin Matt Paint	£848.64
C3060716W	600	731	100	H	N/A	16	3333	976	15.4	31.2	White RAL 9016	£470.63
C3060919A	600	864	100	H	N/A	19	3958	1159	18.2	36.8	Anthracite RAL 7016	£627.09
C3060919R	600	864	100	H	N/A	19	3958	1159	18.2	36.8	Other Solid Matt RAL	£875.67
C3060919T	600	864	100	H	N/A	19	3958	1159	18.2	36.8	Metallic Micrograin Matt Paint	£980.75
C3060919W	600	864	100	H	N/A	19	3958	1159	18.2	36.8	White RAL 9016	£547.29
C3060922A	600	997	100	H	N/A	22	4583	1342	21.1	42.6	Anthracite RAL 7016	£728.10
C3060922R	600	997	100	H	N/A	22	4583	1342	21.1	42.6	Other Solid Matt RAL	£998.38
C3060922T	600	997	100	H	N/A	22	4583	1342	21.1	42.6	Metallic Micrograin Matt Paint	£1,118.19
C3060922W	600	997	100	H	N/A	22	4583	1342	21.1	42.6	White RAL 9016	£644.12
C3061125A	600	1130	100	H	N/A	25	5208	1525	24	48	Anthracite RAL 7016	£824.57
C3061125R	600	1130	100	H	N/A	25	5208	1525	24	48	Other Solid Matt RAL	£1,152.33
C3061125T	600	1130	100	H	N/A	25	5208	1525	24	48	Metallic Micrograin Matt Paint	£1,290.61
C3061125W	600	1130	100	H	N/A	25	5208	1525	24	48	White RAL 9016	£720.20
C3061432A	600	1440	100	H	N/A	32	6666	1952	30.7	61	Anthracite RAL 7016	£1,054.96
C3061432R	600	1440	100	H	N/A	32	6666	1952	30.7	61	Other Solid Matt RAL	£1,474.86
C3061432T	600	1440	100	H	N/A	32	6666	1952	30.7	61	Metallic Micrograin Matt Paint	£1,651.84
C3061432W	600	1440	100	H	N/A	32	6666	1952	30.7	61	White RAL 9016	£921.79
C3061636R	600	1617	100	H	N/A	36	7499	2196	34.6	68.5	Other Solid Matt RAL	£1,678.50
C3061636T	600	1617	100	H	N/A	36	7499	2196	34.6	68.5	Metallic Micrograin Matt Paint	£1,879.93
C3061636W	600	1617	100	H	N/A	36	7499	2196	34.6	68.5	White RAL 9016	£1,049.07
C3061640R	600	1794	100	H	N/A	40	8333	2440	38.4	76.1	Other Solid Matt RAL	£1,930.23
C3061640T	600	1794	100	H	N/A	40	8333	2440	38.4	76.1	Metallic Micrograin Matt Paint	£2,161.86
C3061640W	600	1794	100	H	N/A	40	8333	2440	38.4	76.1	White RAL 9016	£1,162.79
C3070306R	750	288	100	H	N/A	6	1865	546	7.2	14.5	Other Solid Matt RAL	£333.35
C3070306T	750	288	100	H	N/A	6	1865	546	7.2	14.5	Metallic Micrograin Matt Paint	£373.36
C3070306W	750	288	100	H	N/A	6	1865	546	7.2	14.5	White RAL 9016	£210.98
C3070408R	750	377	100	H	N/A	8	2486	728	9.6	19.1	Other Solid Matt RAL	£450.10
C3070408T	750	377	100	H	N/A	8	2486	728	9.6	19.1	Metallic Micrograin Matt Paint	£504.11
C3070408W	750	377	100	H	N/A	8	2486	728	9.6	19.1	White RAL 9016	£281.31
C3070409R	750	421	100	H	N/A	9	2797	819	10.8	22.7	Other Solid Matt RAL	£512.69
C3070409T	750	421	100	H	N/A	9	2797	819	10.8	22.7	Metallic Micrograin Matt Paint	£574.21
C3070409W	750	421	100	H	N/A	9	2797	819	10.8	22.7	White RAL 9016	£316.48
C3070613R	750	598	100	H	N/A	13	4040	1183	15.6	32.1	Other Solid Matt RAL	£749.70
C3070613T	750	598	100	H	N/A	13	4040	1183	15.6	32.1	Metallic Micrograin Matt Paint	£839.66
C3070613W	750	598	100	H	N/A	13	4040	1183	15.6	32.1	White RAL 9016	£457.13
C3070716R	750	731	100	H	N/A	16	4972	1456	19.2	39	Other Solid Matt RAL	£933.95
C3070716T	750	731	100	H	N/A	16	4972	1456	19.2	39	Metallic Micrograin Matt Paint	£1,046.03
C3070716W	750	731	100	H	N/A	16	4972	1456	19.2	39	White RAL 9016	£562.62
C3070919R	750	864	100	H	N/A	19	5905	1729	22.8	46	Other Solid Matt RAL	£1,080.68
C3070919T	750	864	100	H	N/A	19	5905	1729	22.8	46	Metallic Micrograin Matt Paint	£1,210.37
C3070919W	750	864	100	H	N/A	19	5905	1729	22.8	46	White RAL 9016	£643.26
C3070922R	750	997	100	H	N/A	22	6837	2002	26.4	53.2	Other Solid Matt RAL	£1,262.32
C3070922T	750	997	100	H	N/A	22	6837	2002	26.4	53.2	Metallic Micrograin Matt Paint	£1,413.80
C3070922W	750	997	100	H	N/A	22	6837	2002	26.4	53.2	White RAL 9016	£742.54
C3071125R	750	1130	100	H	N/A	25	7769	2275	30	60	Other Solid Matt RAL	£1,512.05
C3071125T	750	1130	100	H	N/A	25	7769	2275	30	60	Metallic Micrograin Matt Paint	£1,693.50
C3071125W	750	1130	100	H	N/A	25	7769	2275	30	60	White RAL 9016	£879.10
C3071432R	750	1440	100	H	N/A	32	9944	2912	38.4	76.3	Other Solid Matt RAL	£1,933.51
C3071432T	750	1440	100	H	N/A	32	9944	2912	38.4	76.3	Metallic Micrograin Matt Paint	£2,165.53
C3071432W	750	1440	100	H	N/A	32	9944	2912	38.4	76.3	White RAL 9016	£1,111.21
C3071636R	750	1617	100	H	N/A	36	11188	3276	43.2	85.6	Other Solid Matt RAL	£2,122.92
C3071636T	750	1617	100	H	N/A	36	11188	3276	43.2	85.6	Metallic Micrograin Matt Paint	£2,377.67
C3071636W	750	1617	100	H	N/A	36	11188	3276	43.2	85.6	White RAL 9016	£1,206.20
C3180306A	1800	288	100	H	N/A	6	3668	1074	14.9	32.1	Anthracite RAL 7016	£419.21
C3180306R	1800	288	100	H	N/A	6	3668	1074	14.9	32.1	Other Solid Matt RAL	£616.37
C3180306T	1800	288	100	H	N/A	6	3668	1074	14.9	32.1	Metallic Micrograin Matt Paint	£690.34
C3180306W	1800	288	100	H	N/A	6	3668	1074	14.9	32.1	White RAL 9016	£385.23
C3180408A	1800	377	100	H	N/A	8	4890	1432	19.9	42.8	Anthracite RAL 7016	£559.53
C3180408R	1800	377	100	H	N/A	8	4890	1432	19.9	42.8	Other Solid Matt RAL	£833.56
C3180408T	1800	377	100	H	N/A	8	4890	1432	19.9	42.8	Metallic Micrograin Matt Paint	£933.58
C3180408W	1800	377	100	H	N/A	8	4890	1432	19.9	42.8	White RAL 9016	£520.97
C3180409R	1800	421	100	H	N/A	9	5502	1611	22.4	47.9	Other Solid Matt RAL	£1,014.55
C3180409T	1800	421	100	H	N/A	9	5502	1611	22.4	47.9	Metallic Micrograin Matt Paint	£1,136.30
C3180409W	1800	421	100	H	N/A	9	5502	1611	22.4	47.9	White RAL 9016	£622.42

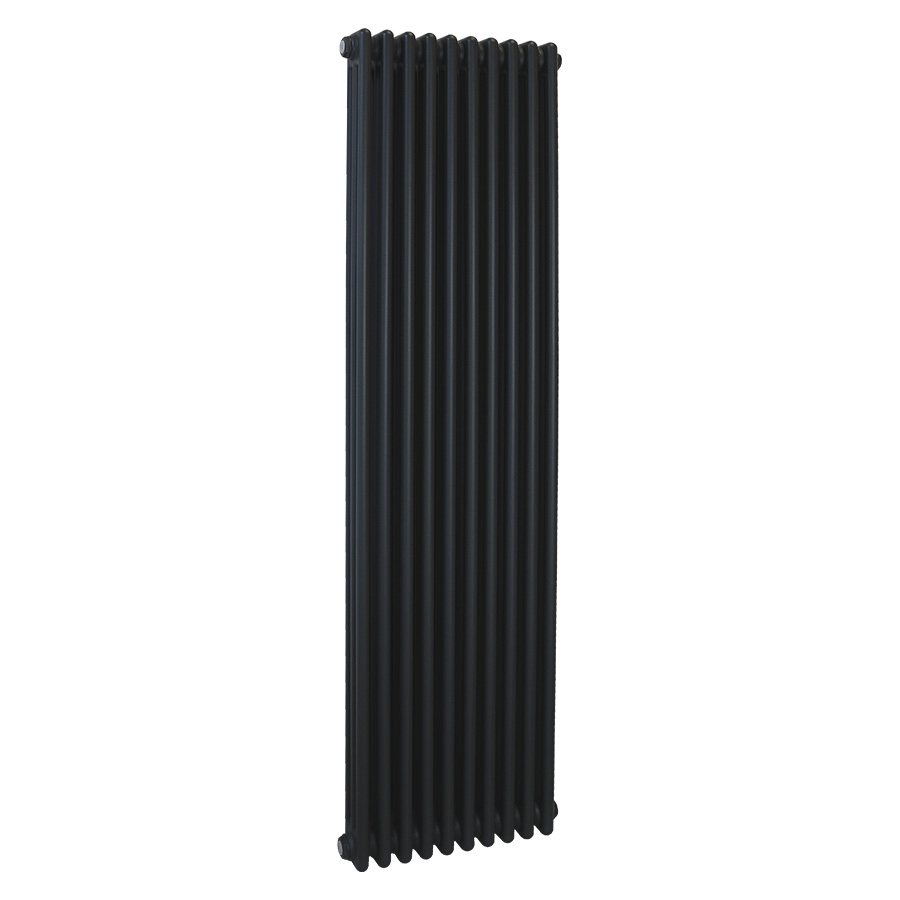

C3180510A	1800	465	100	H	N/A	10	6113	1790	24.9	53.1	Anthracite RAL 7016	£698.11
C3180510R	1800	465	100	H	N/A	10	6113	1790	24.9	53.1	Other Solid Matt RAL	£1,160.67
C3180510T	1800	465	100	H	N/A	10	6113	1790	24.9	53.1	Metallic Micrograin Matt Paint	£1,299.95
C3180510W	1800	465	100	H	N/A	10	6113	1790	24.9	53.1	White RAL 9016	£699.20
C3180613A	1800	598	100	H	N/A	13	7947	2327	32.4	68.5	Anthracite RAL 7016	£907.72
C3180613R	1800	598	100	H	N/A	13	7947	2327	32.4	68.5	Other Solid Matt RAL	£1,408.97
C3180613T	1800	598	100	H	N/A	13	7947	2327	32.4	68.5	Metallic Micrograin Matt Paint	£1,578.04
C3180613W	1800	598	100	H	N/A	13	7947	2327	32.4	68.5	White RAL 9016	£914.91
C3200306R	2000	288	100	H	N/A	6	4055	1187	16.5	26.7	Other Solid Matt RAL	£688.60
C3200306T	2000	288	100	H	N/A	6	4055	1187	16.5	26.7	Metallic Micrograin Matt Paint	£771.23
C3200306W	2000	288	100	H	N/A	6	4055	1187	16.5	26.7	White RAL 9016	£417.33
C3200408R	2000	377	100	H	N/A	8	5406	1583	22	35.5	Other Solid Matt RAL	£931.24
C3200408T	2000	377	100	H	N/A	8	5406	1583	22	35.5	Metallic Micrograin Matt Paint	£1,042.99
C3200408W	2000	377	100	H	N/A	8	5406	1583	22	35.5	White RAL 9016	£564.39
C3200409R	2000	421	100	H	N/A	9	6082	1781	24.8	47.3	Other Solid Matt RAL	£1,112.58
C3200409T	2000	421	100	H	N/A	9	6082	1781	24.8	47.3	Metallic Micrograin Matt Paint	£1,246.09
C3200409W	2000	421	100	H	N/A	9	6082	1781	24.8	47.3	White RAL 9016	£674.29
C3200510R	2000	465	100	H	N/A	10	6758	1979	27.5	53.2	Other Solid Matt RAL	£1,249.81
C3200510T	2000	465	100	H	N/A	10	6758	1979	27.5	53.2	Metallic Micrograin Matt Paint	£1,399.79
C3200510W	2000	465	100	H	N/A	10	6758	1979	27.5	53.2	White RAL 9016	£757.46
C3200613R	2000	598	100	H	N/A	13	8786	2573	35.8	59.1	Other Solid Matt RAL	£1,635.41
C3200613T	2000	598	100	H	N/A	13	8786	2573	35.8	59.1	Metallic Micrograin Matt Paint	£1,831.66
C3200613W	2000	598	100	H	N/A	13	8786	2573	35.8	59.1	White RAL 9016	£991.16

Addons

Name	Summary	RRP
C3FTA	3 Column Radiator Feet in Metallic Micrograin Matt Paint	£60.63
C3FTR	3 Column Radiator Feet in Other Solid Matt RAL	£88.53
C3FTT	3 Column Radiator Feet in Metallic Micrograin Matt Paint	£99.15
C3FTW	3 Column Radiator Feet in White RAL 9016	£53.65

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
