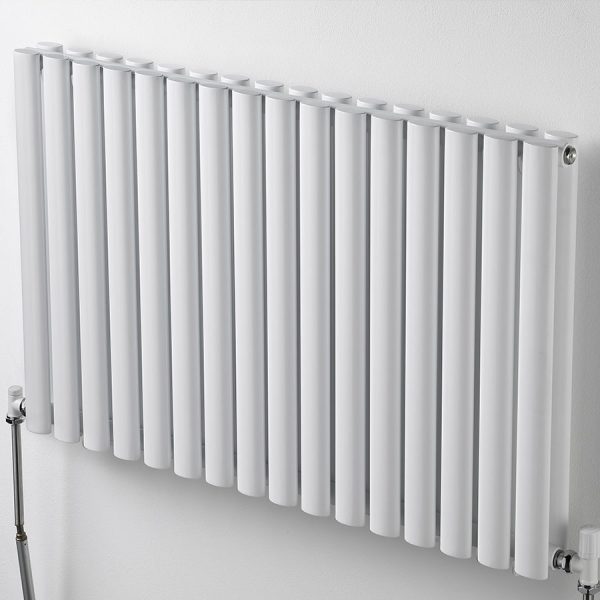

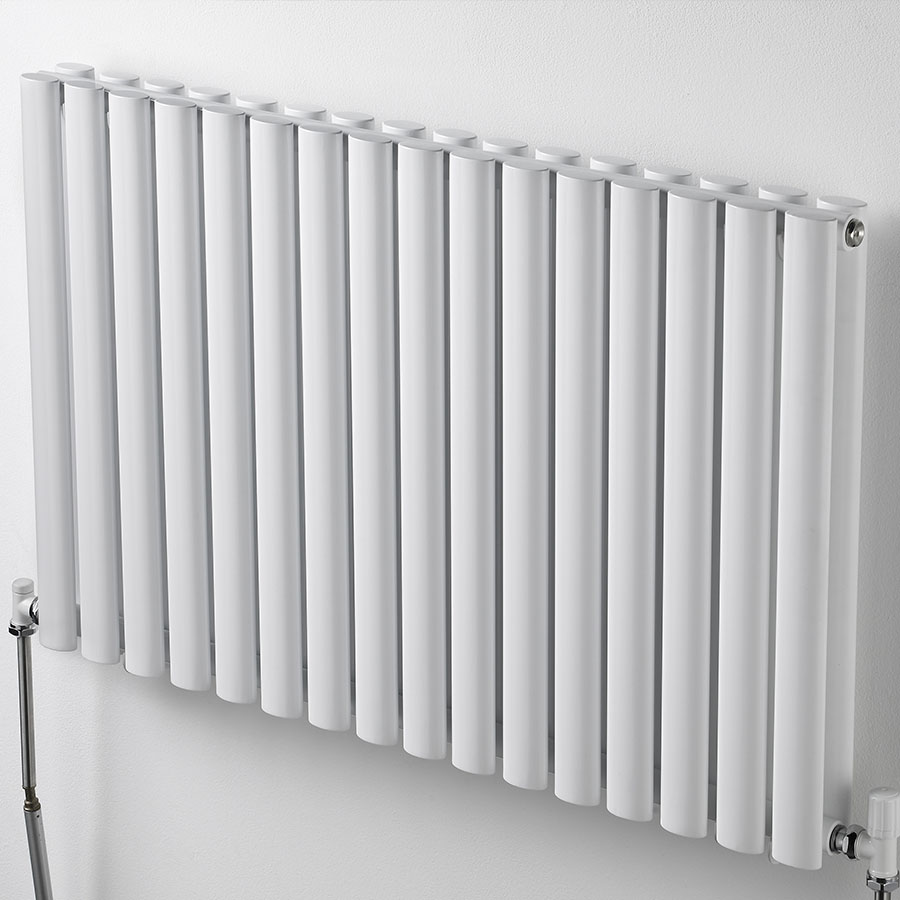

MODEL SHOWN: SD616W (White RAL 9016)

Sofi Horizontal

The Sofi radiator is a simplistic design with modern elliptical tubes offering a high heat output. The Sofi radiators come in a horizontal and vertical design.

The details:
• 5-Year Warranty
• Available in 11 size options
• High-quality white powder coat finish (RAL 9016)
• We recommend pipework is not installed until receipt of radiator
• All prices are exclusive of VAT and delivery

SKU: Sofi Horizontal Categories: Range, Sofi Horizontal, Tubular Where to buy

The Range

Max Working Pressure 6 Bars

95 DEGREES MAX WORKING TEMP.

Closed System

Mild Steel

VERTICAL MOUNTING

5 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
	SD608R	600	475	79	H	N/A	16	2268	664	10.6	17.3	Other Solid Matt RAL	£304.53
	SD608T	600	475	79	H	N/A	16	2268	664	10.6	17.3	Metallic Micrograin Matt Paint	£334.99
SD608W	SD608W	600	475	79	H	N/A	16	2268	664	10.6	17.3	White RAL 9016	£186.83
	SD610R	600	593	79	H	N/A	20	2835	830	13.3	21.3	Other Solid Matt RAL	£397.90
	SD610T	600	593	79	H	N/A	20	2835	830	13.3	21.3	Metallic Micrograin Matt Paint	£437.69
SD610W	SD610W	600	593	79	H	N/A	20	2835	830	13.3	21.3	White RAL 9016	£244.11
	SD612R	600	711	79	H	N/A	24	3402	996	15.9	25.4	Other Solid Matt RAL	£474.04
	SD612T	600	711	79	H	N/A	24	3402	996	15.9	25.4	Metallic Micrograin Matt Paint	£521.44
SD612W	SD612W	600	711	79	H	N/A	24	3402	996	15.9	25.4	White RAL 9016	£290.82
	SD614R	600	829	79	H	N/A	28	3969	1162	18.6	39.4	Other Solid Matt RAL	£534.37
	SD614T	600	829	79	H	N/A	28	3969	1162	18.6	39.4	Metallic Micrograin Matt Paint	£587.81
SD614W	SD614W	600	829	79	H	N/A	28	3969	1162	18.6	39.4	White RAL 9016	£327.83
	SD616R	600	947	79	H	N/A	32	4536	1328	21.2	33.5	Other Solid Matt RAL	£607.63
	SD616T	600	947	79	H	N/A	32	4536	1328	21.2	33.5	Metallic Micrograin Matt Paint	£668.39
SD616W	SD616W	600	947	79	H	N/A	32	4536	1328	21.2	33.5	White RAL 9016	£372.78
	SD618R	600	1065	79	H	N/A	36	5103	1494	23.9	37.5	Other Solid Matt RAL	£661.40
	SD618T	600	1065	79	H	N/A	36	5103	1494	23.9	37.5	Metallic Micrograin Matt Paint	£727.53
SD618W	SD618W	600	1065	79	H	N/A	36	5103	1494	23.9	37.5	White RAL 9016	£418.60
	SD620R	600	1183	79	H	N/A	40	5670	1660	26.6	41.6	Other Solid Matt RAL	£748.41
	SD620T	600	1183	79	H	N/A	40	5670	1660	26.6	41.6	Metallic Micrograin Matt Paint	£823.25
SD620W	SD620W	600	1183	79	H	N/A	40	5670	1660	26.6	41.6	White RAL 9016	£459.14
	SD622R	600	1301	79	H	N/A	44	6237	1826	29.2	45.6	Other Solid Matt RAL	£815.92
	SD622T	600	1301	79	H	N/A	44	6237	1826	29.2	45.6	Metallic Micrograin Matt Paint	£897.51
SD622W	SD622W	600	1301	79	H	N/A	44	6237	1826	29.2	45.6	White RAL 9016	£500.56
	SD624R	600	1419	79	H	N/A	48	6804	1992	31.9	49.6	Other Solid Matt RAL	£948.91
	SD624T	600	1419	79	H	N/A	48	6804	1992	31.9	49.6	Metallic Micrograin Matt Paint	£1,043.80
SD624W	SD624W	600	1419	79	H	N/A	48	6804	1992	31.9	49.6	White RAL 9016	£582.15
	SD626R	600	1537	79	H	N/A	52	7371	2158	34.5	53.7	Other Solid Matt RAL	£1,019.89
	SD626T	600	1537	79	H	N/A	52	7371	2158	34.5	53.7	Metallic Micrograin Matt Paint	£1,121.88
SD626W	SD626W	600	1537	79	H	N/A	52	7371	2158	34.5	53.7	White RAL 9016	£625.70
	SD628R	600	1655	79	H	N/A	56	7938	2324	37.2	57.7	Other Solid Matt RAL	£1,092.40
	SD628T	600	1655	79	H	N/A	56	7938	2324	37.2	57.7	Metallic Micrograin Matt Paint	£1,201.64
SD628W	SD628W	600	1655	79	H	N/A	56	7938	2324	37.2	57.7	White RAL 9016	£670.18

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
